- Page 1 CORE HEALTH & FITNESS ASSEMBLY MANUAL...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING! Before using this product, it is essential to read the ENTIRE Owner’s Manual and ALL installation instructions. The Owner’s Manual describes equipment setup and instructs members on how to use correctly and safely. Read all warnings posted on the machine. Health related injuries may result from incorrect or excessive use of exercise equipment. - Page 3 fl ow of air to the limit of: motor. • 10G - 400 lbs. / 181 kg. 11. The safety and integrity of this machine can only be maintained when the equipment is regularly examined for damage and wear and repaired.
-
Page 4: Product Specifications

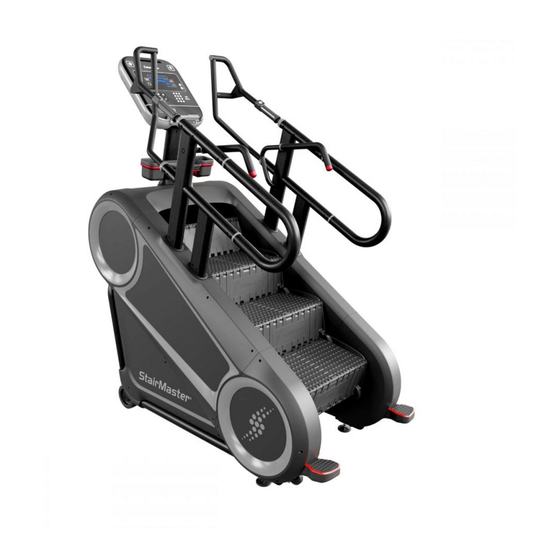

PRODUCT SPECIFICATIONS Fig. 4 19” OpenHub Console Shown SKU: 9-5295 Desc: 10G Unit Weight Width Length Height Max User Weight 34.9 69.5 82.3 80 - 400 36 - 181 Page 3... -
Page 5: Part Identification
PART IDENTIFICATION Fig. 5 10G Features, 19” OpenHub Console Shown Part Part Part Console Leveling Foot UP/DOWN Keypad Shrouds / Housing Handrail STOP Keypad Main Frame Stair Transport Wheel Heart Rate Grips Page 4... - Page 6 Required Tools: • 15mm Socket • 13mm Open-Ended Wrench • 6mm Allen Socket • 6mm Allen Key • 13mm Socket • #2 Phillips Screwdriver • Loctite 242 • Torque Wrench After removing the unit from the pallet, install the two front leveling feet onto the leveling foot studs.
- Page 7 110-4229 110-4192 Use a #2 phillips screwdriver to secure the top shroud assembly to the frame using two (2) pieces of the M5 x 15mm pan head machine screw (110-4192) and four (4) pieces of the M5 x 30mm pan head machine screw (110-4229).
- Page 8 110-4195 Use a 13mm open-ended wrench and a torque wrench with a 13mm socket to secure the left side handrail to the frame using four (4) pieces each of the M8 x 60mm bolt (110- 4195) and M8 domed cap nut (110-4187), and eight (8) pieces of the M8 fl...
- Page 9 Use a #2 phillips screwdriver to install the plastic handrail cover using one (1) piece each of the 8x1.6x22 (110-4296) and 8x1.6x13 (110-4226) pan head tapping screws. Repeat Steps 5-12 for the right handrail grommets (711-3662), right handrail (711- 3867-XX), and right hand grip (711-3787). Use a #2 phillips screwdriver to secure the left side upper and lower inner shrouds together using three (3) pieces of the #8-18 x...
- Page 10 020-7955-XX Use a #2 phillips screwdriver to secure the 110-4090 upper left (020-7955-XX) and middle left side shroud (020-7947-XX) together using three pieces of the #8-18 x 5/8” pan head machine screw (110-4090). 020-7947-XX Use a #2 phillips screwdriver to loosen the three screws on the lower left motor compartment shroud.
- Page 11 Use a #2 phillips screwdriver to secure the upper rear panel to the frame using six (6) of the M5 x 30mm pan head machine screw (110-4229). 110-4229 Page 10...
- Page 12 SUPPORT & SERVICE For Technical Support, Service, Parts Orders or any Customer Service needs, please contact us direct by phone, email, or through our 24 hour support site: GLOBAL SUPPORT CENTER 4400 NE 77th Avenue, Suite 300 Vancouver, WA 98662 Tel: (360) 326-4090 •...
- Page 13 PART NUMBER 620-8797, REV A All rights reserved. Star Trac, the Star Trac logo and StairMaster are registered trademarks of Core Health & Fitness, LLC. Schwinn and Nautilus are registered trademarks of Nautilus Inc. used under license to Core Health & Fitness LLC. Throwdown is a registered trademark of Throwdown Industries, LLC.
