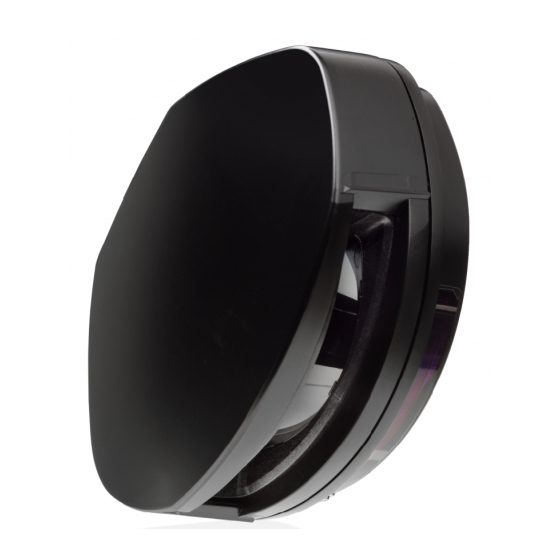

- Page 1 ® - FLATSCAN VS305 COMPACT LASER SCANNER User’s Guide...
- Page 2 I. INTRODUCTION IN GENERAL FLATSCAN VS305 is a detective laser scanner with single curtain. Thanks to the compact and slim design it can be installed in the narrow gap easily and effectively seperate vechicle, and then the output data can be used for vehicle anti-trailing, vehicle counting and other related applications. The laser scanner is CLASS 1 certified device according to IEC 60825-1, which has no damage or impact on human eyes &...
-
Page 3: Led Signals
III. LED-SIGNALS detection error LED LED flashes quickly LED flashes slowly no power or power on LED flashes LED is off IV. SYMBOLS Caution! Remote control Factory values Possible Note Attention Laser radiation sequence remote control adjustments V. SAFETY TIPS The device contains IR and visible laser spots. -
Page 4: Installation And Maintenance
VI. INSTALLATION AND MAINTENANCE Avoid extreme Do not cover the laser Avoid moving objects Avoid the prensence of Avoid condensation. vibrations. window. and light sources in smoke and fog in the the detection field. detection field. -10°C 0°C Avoid exposure to Avoid direct exposure Do not use dry or dirty Clean the laser window... - Page 5 Prepare the bracket for installation Fix the laser scanner on the bracket Install the bracket with laser scanner at right position at a solid and appropriate place - Only the authorized installer could implement the installation and configuration. - If the environment temperature is lower than -10°C, please make sure the scanner keep power on. - Avoid to use the scanner in environment with heavy rain/fog/vibration.
-
Page 6: How To Use The Remote Control
VIII. HOW TO USE THE REMOTE CONTROL Before use the remote control, please check the following points: 1. The effective control distance is 4 meters, please always use remote control within 4 meters of the scanner. 2. The scanner curtain should not be perpendicular to the high reflective surface, a 3-degree angle in between is necessary to guarantee communication between the scanner and the remote control. -
Page 7: Parameter Settings
IX. PARAMETER SETTINGS (12) Detection field 1 (W) 0-9 Number keys (13) Detection field 2 (W) Detection field Redirection (14) Uncovered zone Plus (15) Check Values (16) Lock Unlock Minus Output activation delay Output configuration Min. object size (18) Antimasking & Background Detection area activation (19) Multifunction key * 2... - Page 8 Parameter Setting ( Optional ) MOUNTING SIDE left right left right The scanner can be configured at left side and right side. Please note that the sensor will automatically find the mounting side during the teach-in process After finishing teach-in process, use remote control to change the parameter if needed. This parameter must be defined before setting the configuraiton, as the detection area will link to this parameter.
- Page 9 UNCOVERED ZONE Uncovered zone: increase in case of snow, dead leaves, etc. Measured in specific condi- tions and determined by application and installation. IMMUNITY > > FILTER high filtering Immunity Filter: when there’s interference from environment such as rain, snow which could create some false detection, occasional false detection could be decreased by increasing immunity level.
- Page 10 DETECTION field 1 or error field 1 field 2 field 2 FIELD alarm REDIRECTION error field 1 or field 2 field 1 alarm field 2 OUTPUT CONFIGURATION NO POWER NO DETECTION DETECTION NO = normally open * R2 R2 default connection: Pink/ Grey NC = normally closed ANTIMASKING &...
-
Page 11: Troubleshooting
max. 30s TEACH-IN setting the field 1 through Teach-in. max. 30s setting the field 2 through Teach-in. max. 30s setting the background through Teach-in. max. 30s setting the field 1&2 through Teach-in. Teach-in: the scanner could automatically learn the environment profile as its detection field with self-learning function;... -
Page 12: Technical Specifications
BEA SA | LIEGE Science Park | ALLÉE DES NOISETIERS 5 - 4031 ANGLEUR [BELGIUM] | T +32 4 361 65 65 | F +32 4 361 28 58 | INFO-EU@BEASENSORS.COM | EU.BEASENSORS.COM BEA hereby declares that the LZR -FLATSCAN VS305 is in compliance with European directives 2014/30/EU and ®...
