Summary of Contents for Ryobi OLP18

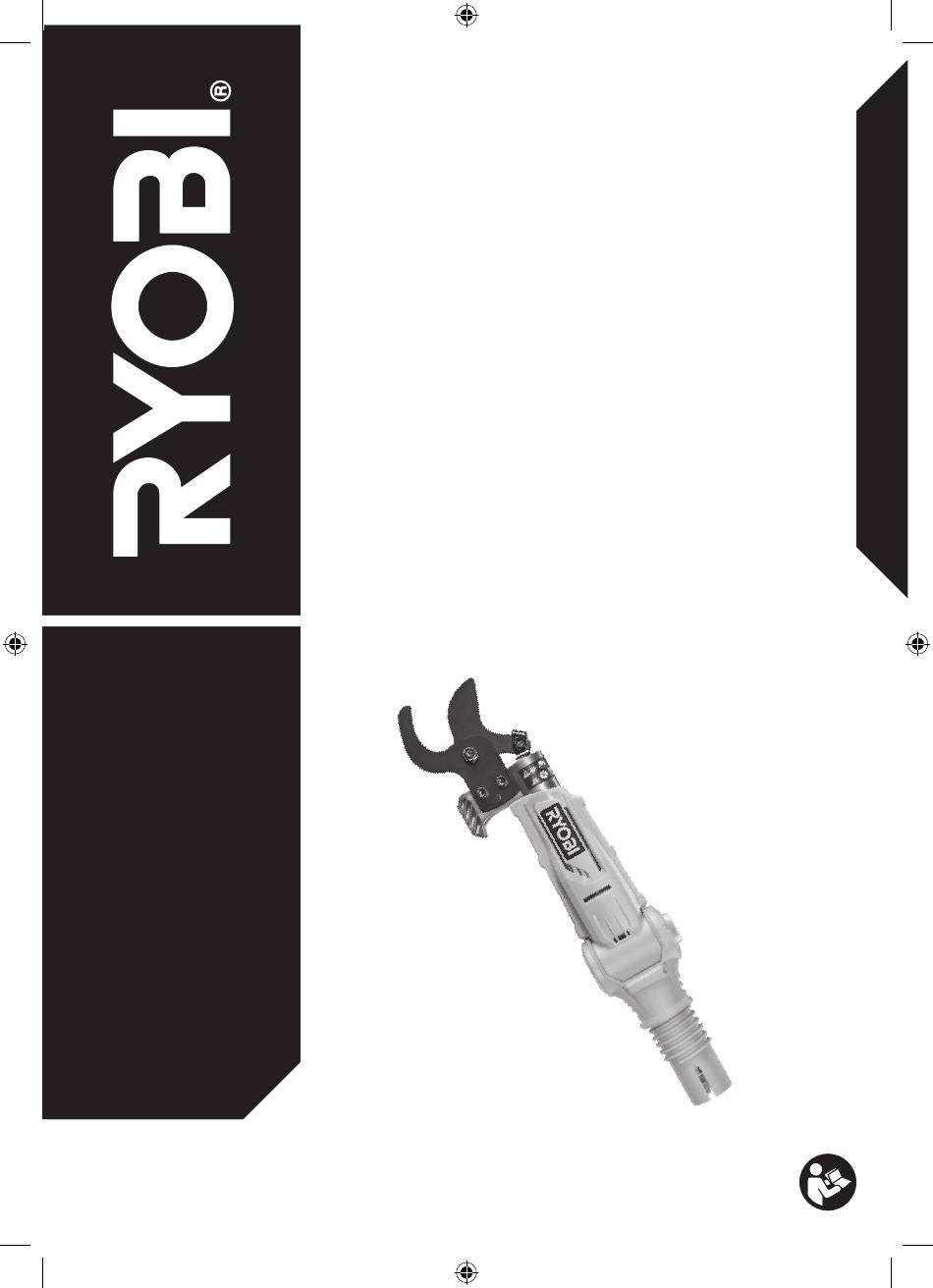

- Page 1 ORIGINAL INSTRUCTIONS Pole Lopper Attachment RBC36X26E OLP18 RBC36X26E...
- Page 2 Important! It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modification.
-
Page 3: Intended Use
Safety, performance, and dependability have been given cord suitable for outdoor use reduces the risk of electric top priority in the design of your cordless pole lopper. shock. ■ If operating a power tool in a damp location is INTENDED USE unavoidable, use a residual current device (RCD) protected supply. -
Page 4: Additional Safety Warnings
tool or these instructions to operate the power tool. will ensure that safety of the power tool is maintained. Power tools are dangerous in the hands of untrained ■ Never service damaged battery packs. Service users. of battery packs should only be performed by the ■... -
Page 5: Transportation And Storage
■ If the product is dropped, suffers heavy impact, or ■ Store the product in a cool, dry, and well-ventilated begins to vibrate abnormally, immediately stop the place that is inaccessible to children. Keep the product product and inspect for damage or identify the cause of away from corrosive agents, such as garden chemicals the vibration. -
Page 6: Symbols In This Manual
worn or damaged components. Waste electrical products should not ● Check if the covers and guards are undamaged be disposed of with household waste. and correctly fitted. Carry out the necessary Please recycle where facilities exist. maintenance or repairs before using the product. Check with your local authority or ●... - Page 7 WHAT’S IN THE BOX...
-
Page 8: Know Your Product
KNOW YOUR PRODUCT 1. Pivoting button 4. Blade cover 2. C-clip 5. Cutting blade 3. Nut 6. Pin... -
Page 9: Getting Started
GETTING STARTED Connect the pole lopper attachment to the shaft. Tighten Wear full eye and head protection while operating the the shaft coupling by turning it clockwise. product. When handling the blade assembly, wear non-slip, heavy-duty protective gloves. Wear non-skid, protective NOTE: This product is only compatible with telescoping footwear that will protect your feet and improve your footing poles from products OLP1832BP, OPP1850, and... - Page 10 OVERVIEW Cleaning the product Operating the product 32mm p.11 Replacing the blade Storing the product p.12 p.13...
-
Page 11: Operation
OPERATION 32mm OPERATING THE PRODUCT NOTE:The lopper has a 32 mm cutting capacity for soft or greenwood, and 28 mm cutting capacity for hardwood. NOTE: During operation, hold the product with both hands. 1. Remove the blade cover. 2. Install the battery pack into the product. Make sure the latches on each side of the battery pack snap in place and that the battery pack is securely attached... - Page 12 OPERATION NOTE: The working angle of the pole lopper can be adjusted to 75°. 4. Press and hold the lock out trigger and engage the main trigger. Use the product for cutting and pruning small limbs and branches. NOTE: Use the hook for removing loose branches or for stabilising the tool before cutting.
- Page 13 MAINTENANCE CLEANING THE PRODUCT 1. Remove the battery pack. 2. Clean the product with a soft, dry cloth. Do not use water and soap to clean the product.
- Page 14 MAINTENANCE REPLACING THE BLADE 1. Remove the battery pack. 2. Remove the C-clip with long nose pliers then take out the pin. 3. Remove the nut with a wrench, then take out the washer and the bolt.
- Page 15 STORAGE STORING THE PRODUCT 1. Remove all foreign materials from the product before storing. 2. Remove the battery pack. 3. Unlock the telescopic release latch. Adjust the pole length to minimum. 4. Store the product in a cool, dry, and well- ventilated place that is inaccessible to children and well away from sources of ignition.
-
Page 16: Product Specifications
Cordless Pole Lopper with a standardised test and may be used to compare Model OLP18 one tool with another. They may be used for a preliminary assessment of exposure. Compatible only with OPP1850 and OHT1860S... - Page 20 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited RYOBI is a trade mark of Ryobi Limited, Unit C, 70 Business Parade South, and is used under license. Highbrook, Auckland 2013, New Zealand ©...
