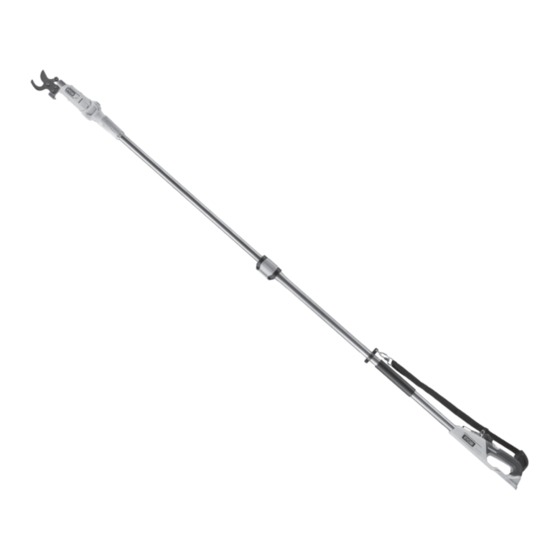

Ryobi OLP1832BP Instructions Manual

Pole lopper
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
RBC36X26E
OLP1832BP
RBC36X26E
ORIGINAL INSTRUCTIONS
Pole Lopper

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OLP1832BP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ryobi OLP1832BP

Summary of Contents for Ryobi OLP1832BP

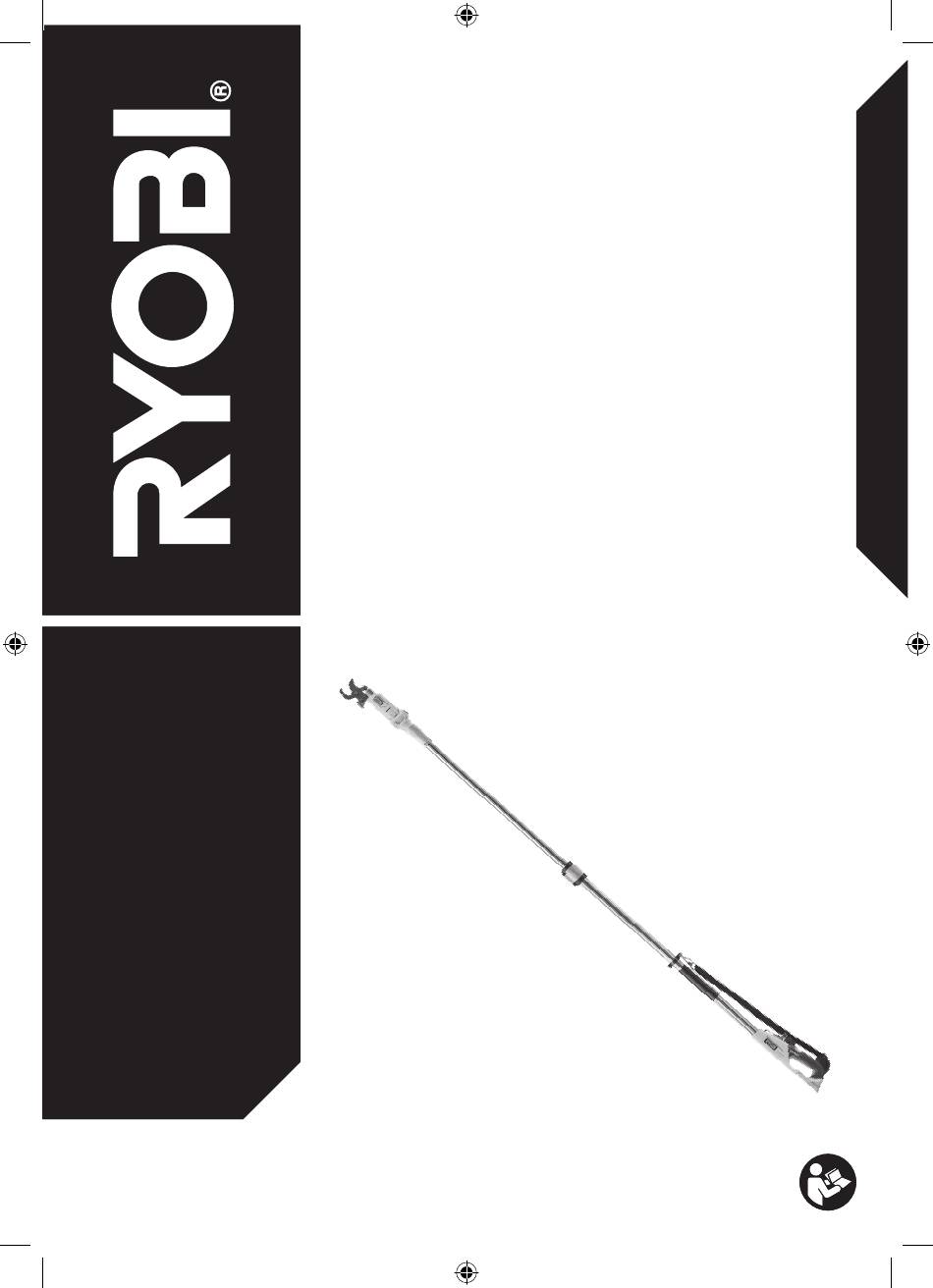

  • Page 1 ORIGINAL INSTRUCTIONS Pole Lopper RBC36X26E OLP1832BP RBC36X26E...
  • Page 2 Important! It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modification.

  • Page 3: Intended Use

    Safety, performance, and dependability have been given ■ If operating a power tool in a damp location is top priority in the design of your cordless pole lopper. unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

  • Page 4: Additional Safety Warnings

    ■ Maintain power tools. Check for misalignment or manufacturer or authorised service providers. binding of moving parts, breakage of parts and any other condition that may affect the power tool’s CORDLESS POLE LOPPER SAFETY WARNINGS operation. If damaged, have the power tool repaired ■...

  • Page 5: Transportation And Storage

    the vibration. Any damage should be properly repaired and de-icing salts. Do not store the product outdoors. or replaced by an authorised service centre. TRANSPORTING LITHIUM BATTERIES ■ Ensure that all guards and handles are properly fitted Transport the battery in accordance with local and national and are in good condition.

  • Page 6: Symbols In This Manual

    maintenance or repairs before using the product. Waste electrical products should not ● Always clean the cutting blades after operation. be disposed of with household waste. ● Visually check the condition of the cutting edges Please recycle where facilities exist. of the cutting blade.
  • Page 7 WHAT’S IN THE BOX...

  • Page 8: Know Your Product

    KNOW YOUR PRODUCT 1. Cutting blade 5. Lower tube 2. Pivoting button 6. Trigger lock button 3. Upper tube 7. ON/OFF trigger 4. Telescopic release latch...
  • Page 9 GETTING STARTED GETTING STARTED Wear full eye and head protection while operating the Remove the blade cover. Attach the harness. Install the battery pack in the product. Make sure that the product. When handling the blade assembly, wear non-slip, latches on each side of the battery pack snap in place and NOTE: The harness can be easily removed from the heavy-duty protective gloves.
  • Page 11 OVERVIEW Operating the product Cleaning the product 32mm p.10 p.12 Storing the product p.13...

  • Page 12: Operation

    OPERATION 32mm OPERATING THE PRODUCT NOTE:The lopper has a 32 mm cutting capacity for softwood, and 28 mm cutting capacity for hardwood. WARNING: During operation, hold the product with both hands. 1. Remove the blade cover. 2. Install the battery pack in the product. Make sure that the latches on each side of the battery pack snap in place and that the battery pack is securely attached...
  • Page 13 OPERATION NOTE: The working angle of the pole lopper can be adjusted to 75°. 4. Press and hold the lock out trigger and trigger. NOTE: Use the hook for removing loose branches. NOTE: The working angle of the pole lopper must be at 0°...
  • Page 14 MAINTENANCE CLEANING THE PRODUCT 1. Remove the battery pack. 2. Clean the product with a soft, dry cloth. Do not use water and soap to clean the product.

  • Page 15: Replacing The Blade

    MAINTENANCE REPLACING THE BLADE 1. Remove the battery pack. 2. Remove the C-clip with long nose pliers then take out the pin. 3. Remove the nut with a wrench. Remove the screw. 4. Replace the blade.
  • Page 16 5. Secure the blade with the screw and the nut. 6. Reinstall the pin and the c-clip.

  • Page 17: Storing The Product

    STORAGE STORING THE PRODUCT 1. Clean the product before storing. 2. Remove the battery pack. 3. Unlock the telescopic release latch. Adjust the pole length to minimum. 4. Store the product in a cool, dry, and well- ventilated place that is inaccessible to children and well away from sources of ignition.

  • Page 18: Product Specifications

    RB18L20A, RB18L25, RB18L40, RB18L40A, RB18L50, RB18L60A, RB18L90A BCL-1800, BCL1418, BCL1418IV, Compatible BCL14181H, BCL14183H, BCS618G, chargers RC18150U, RC18627U, RC18115, RC18120 REPLACEMENT PARTS Blade assembly 205378001 NOTE: Visit your local special orders desk or contact RYOBI Customer Service for replacement parts...
  • Page 20 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited RYOBI is a trade mark of Ryobi Limited, Unit C, 70 Business Parade South, and is used under license. Highbrook, Auckland 2013, New Zealand ©...
