Instructions - Parts List
Base Seal
Automatic Flow Guns
Model C27130
Double air-operated with ethylene propylene o-rings
Model C27134
Double air-operated with fluoroelastomer o-rings
Model C27132
Double air-operated with spring return assist and fluoroelastomer o-rings
Model C27151
Air actuated, spring return with ethylene propylene o-rings
100 psi (0.7 MPa, 7 bar) Maximum Air Inlet Pressure
2400 psi (17 MPa, 165 bar) Maximum Working Fluid Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
Table of Contents
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Ground The System . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Pressure Relief Procedure . . . . . . . . . . . . . . . . . . . . . . 5
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Automatic Flow Gun Disassembly . . . . . . . . . . . . . . . . 6
Automatic Flow Gun Reassembly . . . . . . . . . . . . . . . . . 7
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
C27130 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
C27134 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
C27132 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
C27151 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Kits and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Repair Kit C27131 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Repair Kit C27133 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Mounting Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . . . . . . 14
310547C

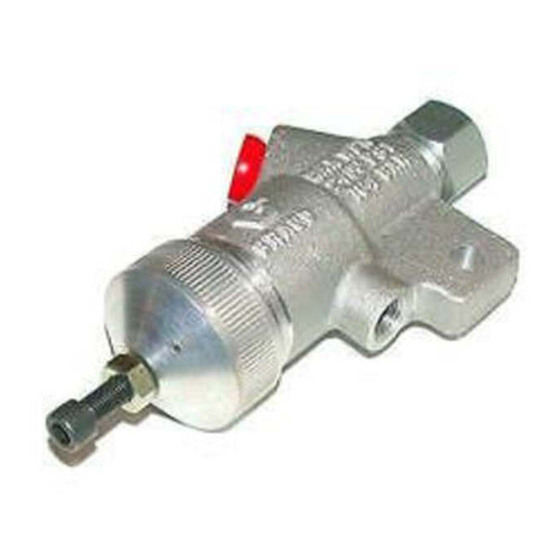

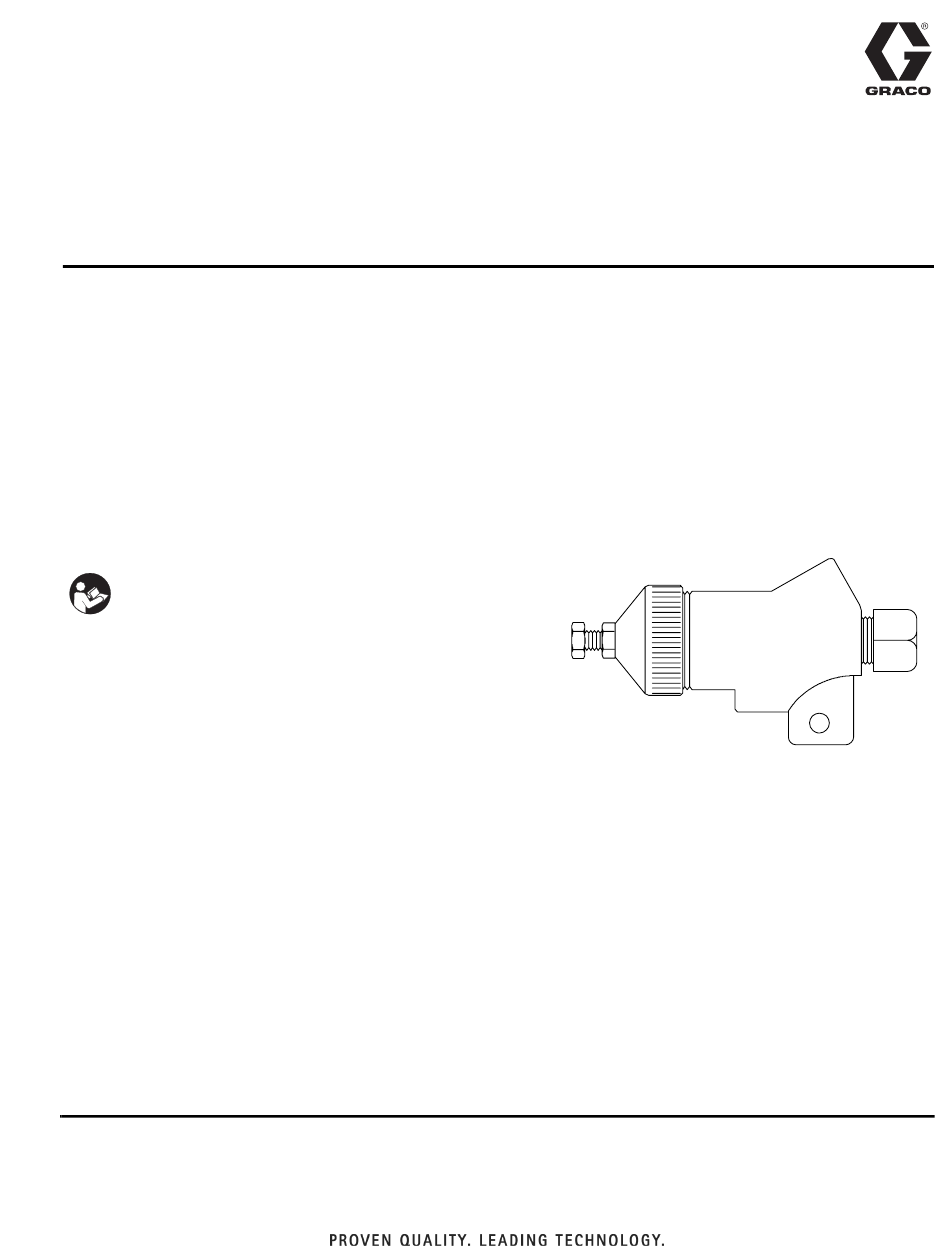

Model C27151 / 12062 shown
EN
Advertisement
Table of Contents
Related Manuals for Graco C27130
Summary of Contents for Graco C27130
-
Page 1: Table Of Contents
Parts ......... . 9 C27130 ........9 C27134 . -
Page 2: Warnings
• This equipment is for professional use only. • Read all instruction manuals, warnings, tags, and labels before operating the equipment. • Use the equipment only for its intended purpose. If you are uncertain about usage, call your Graco distributor. - Page 3 • Do not repair high pressure couplings; you must replace the entire hose. • Use only Graco approved hoses. Do not remove any spring guard that is used to help protect the hose from rupture caused by kinks or bends near the couplings.
-
Page 4: Installation
Material can be supplied to the Ground the system as instructed here and in the individ- automatic flow gun by any standard Graco pump. ual component manuals. 1. Inspect the flow gun for shipping damage. If dam- age is found, notify the carrier immediately. -
Page 5: Operation
Operation Operation Pressure Relief Procedure 1. Shut off the fluid supply to the flow gun. 2. Place a waste container beneath the nozzle to catch the drainage. The system pressure must be manually relieved to prevent the system from starting or spraying 3. -
Page 6: Service
Remove the lock nut (2), washer (3), and piston packing (4) from the needle (17). NOTE: Models C27130 and C27134 are shown in Fig. b. Remove the quad ring (12) from the piston (11). 1. The service procedure is basically the same for all c. -
Page 7: Automatic Flow Gun Reassembly
Service C27130 shown 1/8 npt air inlet (to open valve and start dispensing) 1/8 npt air inlet (to close valve) 1/4 npt fluid inlet Note the position of the washer (9) 1/4 in. (6.4 mm) ID orifice, 2 in. (50.8 mm) long 9/32 in. - Page 8 Service 2. Reassemble the needle and piston as follows: Model C27151: Install the end cap (10), nut (2), and adjustment screw (1) onto the gun body. Install the Model C27151: Install the cup (12) on the piston valve seat (19) and collar (18). (11).
-
Page 9: Parts
Parts Parts Model C27130 - Double Air Operated with Ethylene Propylene O-rings Part No. Description Qty. Part No. Description Qty. 12✓ C02033 Quad, ring 01✓ C20034 Washer, fiber 13✓ C02013 Seal 107110 Nut lock 14✓ C20084 O-ring, ethylene propylene C19197 Washer C02011 Packing washer 04✓... -
Page 10: C27132
Parts Model C27134 - Double Air Operated with Fluoroelastomer O-rings Model C27132 - Double Air with Spring Return Assist and Fluoroelastomer O-rings Part No. Description Qty. Part No. Description Qty. 13✓ C02013 Seal 01✓ C20034 Washer, fiber 14✓ 111710 O-ring, fluoroelastomer C02017 Nut lock #10-32 C02011 Packing washer C19197 Washer... - Page 11 Parts Model C27151 - Air Attached with Spring Return and Ethylene Propylene O-rings Part No. Description Qty. Part No. Description Qty. C02001 Piston C20014 Adjustment screw C02003 Cup C19175 Nut C02013 Seal C19286 Jam nut C20084 O-ring, ethylene propylene C20004 Spring C02011 Support washer C02008 Packing nut C27147 Body...
-
Page 12: C27151
Kits and Accessories Repair Kit C27131 Repair Kit C27133 Use repair kit C27131 for Models C27130 and C27151. Use repair kit C27133 for Models C27132 and C27134. NOTE: Approximate repair kit interval: 6 months. NOTE: Approximate repair kit interval: 6 months. -
Page 13: Mounting Dimensions
Mounting Dimensions Mounting Dimensions Use the drawing below for mounting purposes only. NOTE: Some variance in the location of the mounting hole is possible; verify positions and diameters. Model C27130 12060-A C27134 12060-AV C27132 12060-AS C27151 12062 Material “IN” Nozzle Extension On Part No. -
Page 14: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
