MOAI
BOLLARD S6150, S6160

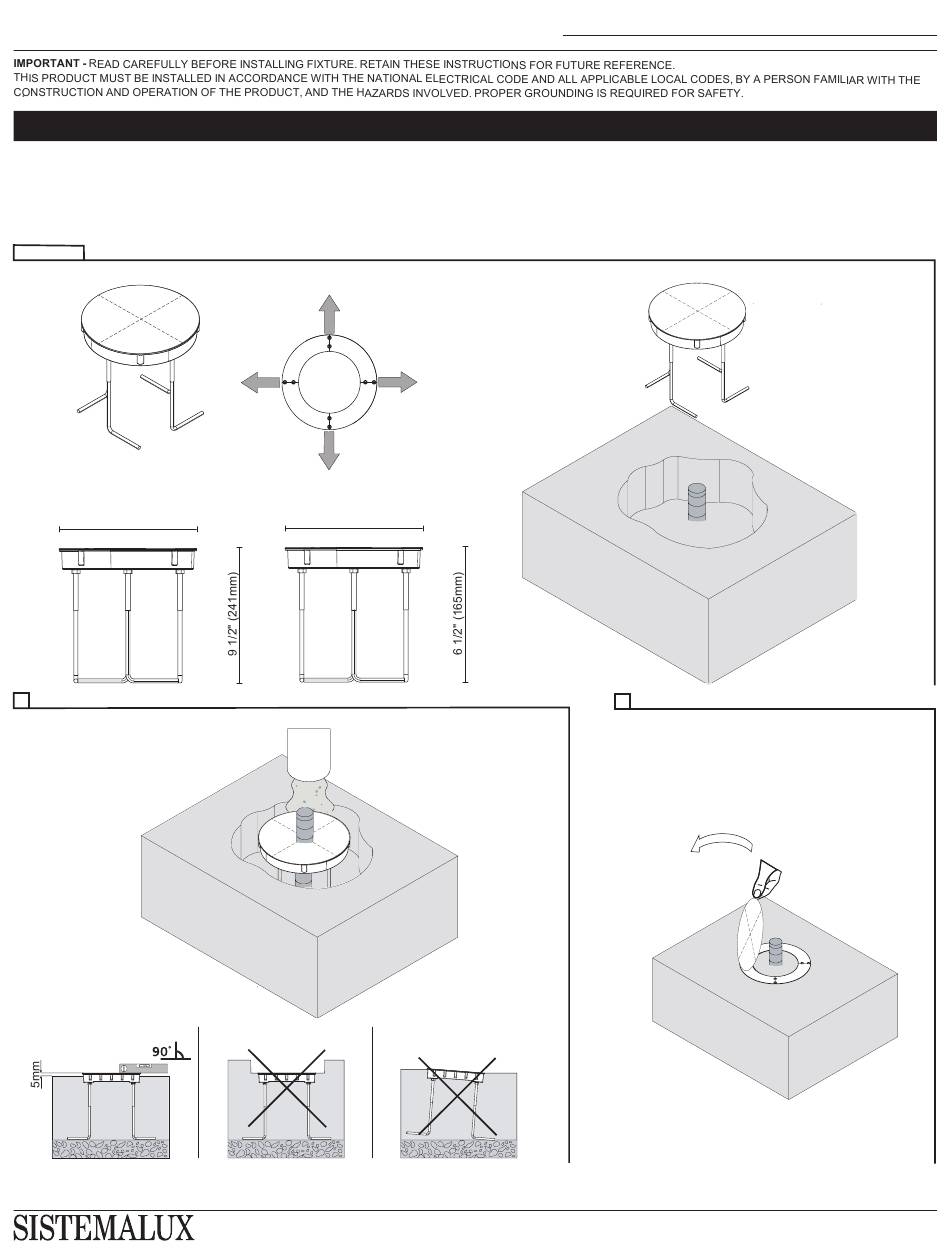

NEW CONCRETE INSTALLATION PREPARATION (WITH FLANGE ACCESSORY S5310, S6309)
A- PREPARE THE DESIRED DRAINING USING GRAVEL UNDER THE FLANGE.
B- INSTALL AN APPROPRIATE ELECTRICAL CONDUIT (NOT INCLUDED) THROUGH THE FLANGE.
C- FEED CABLE THROUGHT THE ELECTRICAL CONDUIT.
D- POUR CONCRETE IN AND MAKE SURE THAT IT IS LEVELED AD IT SITS 5MM UNDER THE TOP OF THE FLANGE
E- REMOVE THE PROTECTION PAPER BEFORE INSTALLING BASE.
A + B + C
S5310
∅ 7" (178mm)
D
OK
INS-818
LIGHT DIRECTION
S6309
∅ 4 3/4 " (118 mm)
NO!
NO!
INSTRUCTIONS SHEET
E
Last update: December 13, 2021
9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7
P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com
PAGE: 1 of 4
DM - R2
Advertisement
Table of Contents
Related Manuals for Sistemalux MOAI
Summary of Contents for Sistemalux MOAI
- Page 1 A + B + C LIGHT DIRECTION S5310 S6309 ∅ 4 3/4 " (118 mm) ∅ 7" (178mm) INS-818 Last update: December 13, 2021 DM - R2 9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7 P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com...
- Page 2 H- LOWER THE BOLLARD BASE ON THE FLANGE AND FIX IT TIGHTLY WITH APPROPRIATE SCREWS AND WASHERS (NOT INCLUDED) BOLLARD BODY BOLLARD BASE 1/4-20 or M6 NUT (NOT INCLUDED) FLANGE INS-818 Last update: December 13, 2021 DM - R2 9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7 P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com...
- Page 3 D- FASTEN BOLLARD BASE TO LEVELED SURFACE USING (4X TYP.) SCREWS (NOT INCLUDED) CONCRETE BASE BOLLARD BODY NOT INCLUDED BOLLARD BASE INS-818 Last update: December 13, 2021 DM - R2 9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7 P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com...
- Page 4 DIM - (green) (white) (brown) FIXTURE CABLES WATERTIGHT CONNECTOR (NOT INCLUDED) WATERTIGHT CONNECTOR (NOT INCLUDED) SCREW INS-818 Last update: December 13, 2021 DM - R2 9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7 P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com...
