Sistemalux KUBE Instruction Sheet

KUBE
MODELS: S.6340, S.6345, S.6346, S.6347
GROUND INSTALLATION IN CONCRETE WITH FLANGE (S.5350).
INTEGRAL DRIVER 120V

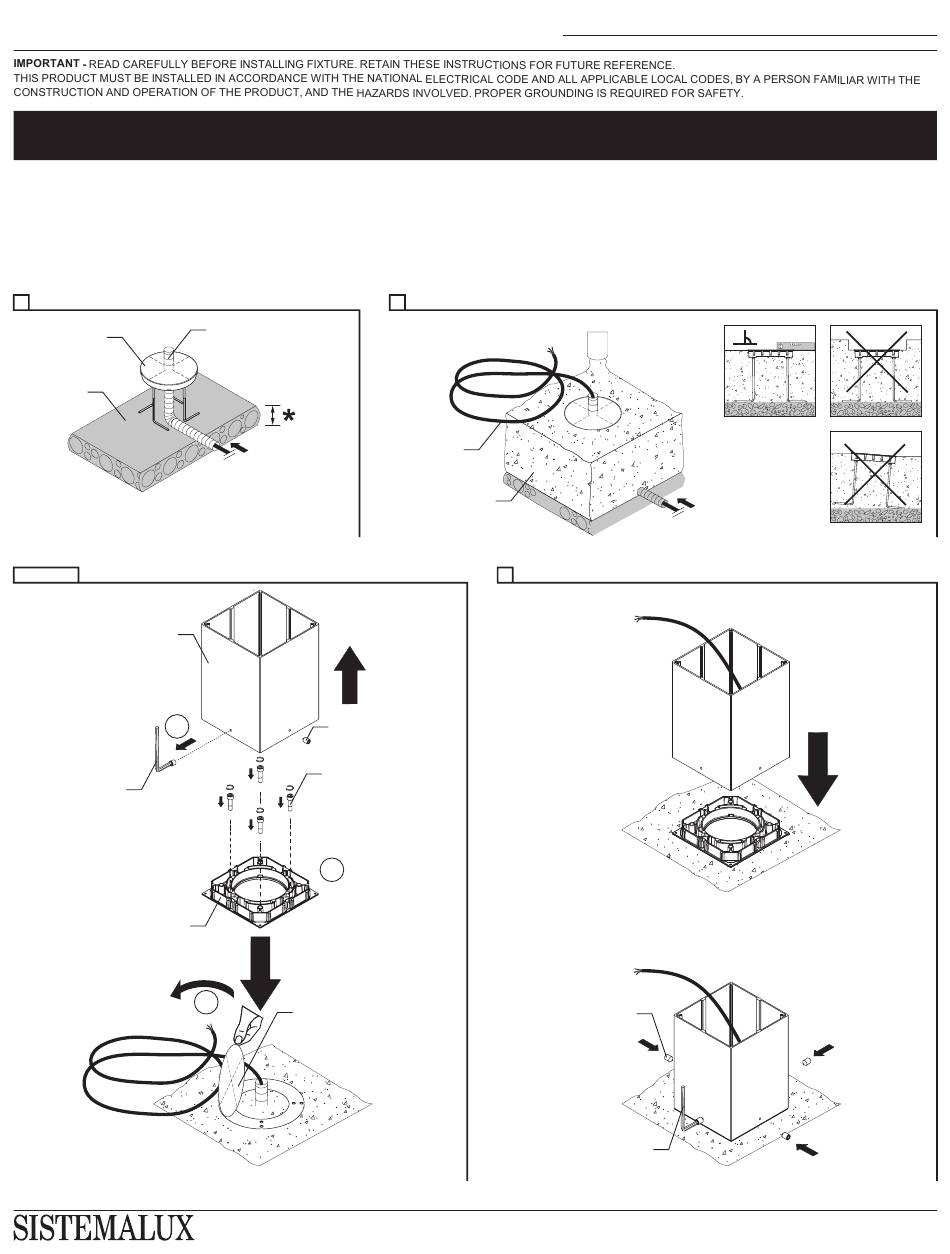

A- DIG A HOLE, PUT THE FLANGE AND ELECTRICAL CONDUIT INTO THE GROUND.
*MINIMUM OF 12" OF GRAVEL IS REQUIRED BELOW THE LUMINAIRE TO ALLOW PROPER DRAINAGE).
B- POUR CONCRETE AND MAKE SURE IT IS LEVELED WITH THE FLANGE.
C- REMOVE STICKER FROM THE FLANGE.
D- USING THE ALLEN KEY (INCLUDED), UNSCREW THE BOLLARD'S SET SCREWS AND REMOVE THE BOLLARD BODY.
E- FIX THE BOLLARD BASE TO THE FLANGE USING THE (4) SCREWS (INCLUDED).
F- LOWER THE BOLLARD BODY ON IT'S BASE AND SCREW IT BACK WITH THE (4) SET SCREWS USING THE ALLEN KEY.
A
FLANGE
GRAVEL
C + D + E
BOLLARD BODY
D
ALLEN KEY
(INCLUDED)
BOLLARD BASE
INS-626
ELECTRICAL CONDUIT
SET SCREWS
SCREWS
(INCLUDED)
E
C
STICKER
INSTRUCTIONS SHEET
B
POWER
CABLE
CONCRETE
F
SET SCREWS
90°
ALLEN KEY
