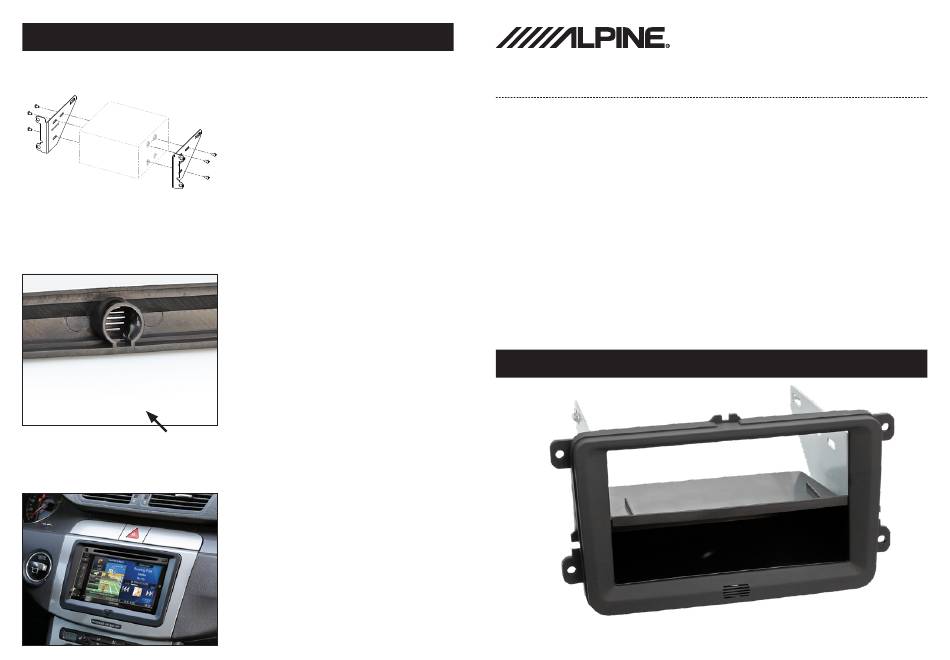

Installation
1.
Mount metal brackets
to head unit and pocket
Connect all required circuit
points and push the
head unit into dashboard
2.
(Optional: install microphone
in pocket of the backside of
facia plate)
3.
Push facia plate over the head
unit and fix it with
original Torx (TX20) screws
Reinstall everything in reverse
order to finish installation.
SEAT
VOLKSWAGEN
Seat Alhambra (7N) 10/2010 - 2015
VW Amarok (2H) 03/2010 - 2016
Seat Leon (1P/1PN Facelift) 03/2009 - 10/2012
VW Amarok (2HS2) 11/2011 - 2016
Seat Toledo (KG) 03/2013 - 2016
VW Beetle (16/5C1/16/5C7) 11/2011 - 2016
VW Beetle (16/5C7) 11/2012 - 2016
SKODA*
VW Caddy (2K/2KN) 10/2003 - 2020
Skoda Fabia (5J) 03/2007 - 06/2014
VW Caravelle 09/2009 - 2015
Skoda Octavia II (1Z Facelift) 01/2009 - 02/2013
VW CC (3CC) 02/2012 - 2016
Skoda Rapid (NH) 10/2012 - 2019*
VW EOS (1F) 05/2006 - 2015
Skoda Roomster (5J) 09/2006 - 2015
VW Golf V (1K) 11/2003 - 09/2008
Skoda Praktik (5J) 04/2007 - 04/2015
VW Golf V (1KM) 06/2007 - 10/2009
Skoda Superb (3T4) 07/2008 -2015**
VW Golf V Plus (1KP) 01/2005 - 02/2009
Skoda Superb (3T5) 01/2010 - 2015**
VW Golf VI (1K) 11/2008 - 12/2012
Skoda Yeti (5L) 08/2009 - 2017***
VW Golf VI (1KM) 11/2009 - 04/2013
* Under certain circumstances, an OEM Skoda front panel must be ordered: 5JA858 415 9B9
** Vehicles with Swing OEM HU, OEM-Skoda front panel: 3TO8580691QB (panel COLUMBUS OEM Sat Nav)
*** Under certain circumstances, an OEM Skoda front panel must be ordered: 5L0858069L1 QB
**** The OEM HU cover must be customised in the middle
Compatible these devices
Alpine head unit
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
Installation Manual
2-DIN Kit with pocket
KIT-HALO-VW303
VOLKSWAGEN
VW Golf VI (1K) 06/2011 - 2013
VW Golf VI Plus (1KP) 03/2009 - 01/2014
VW Jetta V (1KM) 09/2005 - 10/2010
VW Jetta VI (16) 01/2011 - 2015
VW Multivan 09/2009 - 2015
VW Passat B6 (3C2) 11/2005 - 07/2010
VW Passat B6 (3C5) 08/2005 - 07/2010
VW Passat B7 (3C/362) 11/2010 - 10/2014
VW Passat B7 (3C/365) 11/2010 - 10/2014
VW Passat B7 (3C/365) 01/2012 - 10/2014
VW Passat CC (3C/3CC) 05/2008 - 01/2012
VW Polo (6R) 06/2009 - 03/2014
VW Scirocco III (13) 08/2008 - 2014
VW Sharan II (7N) 09/2010 - 2021
VW Tiguan (5N) 09/2007 - 2016
VW Touran (1T) 02/2003 - 2015
VW T5 Transporter 09/2009 - 2015
VW T6 2015 - 2019****
