American Dynamics SpeedDome Ultra Drone Installation Manual

Overview

The SpeedDome Ultra Drone is an Ultra housing that
can be outfitted with a fixed camera. The drone looks
like a fully functional dome camera and can be used as
a deterrent.

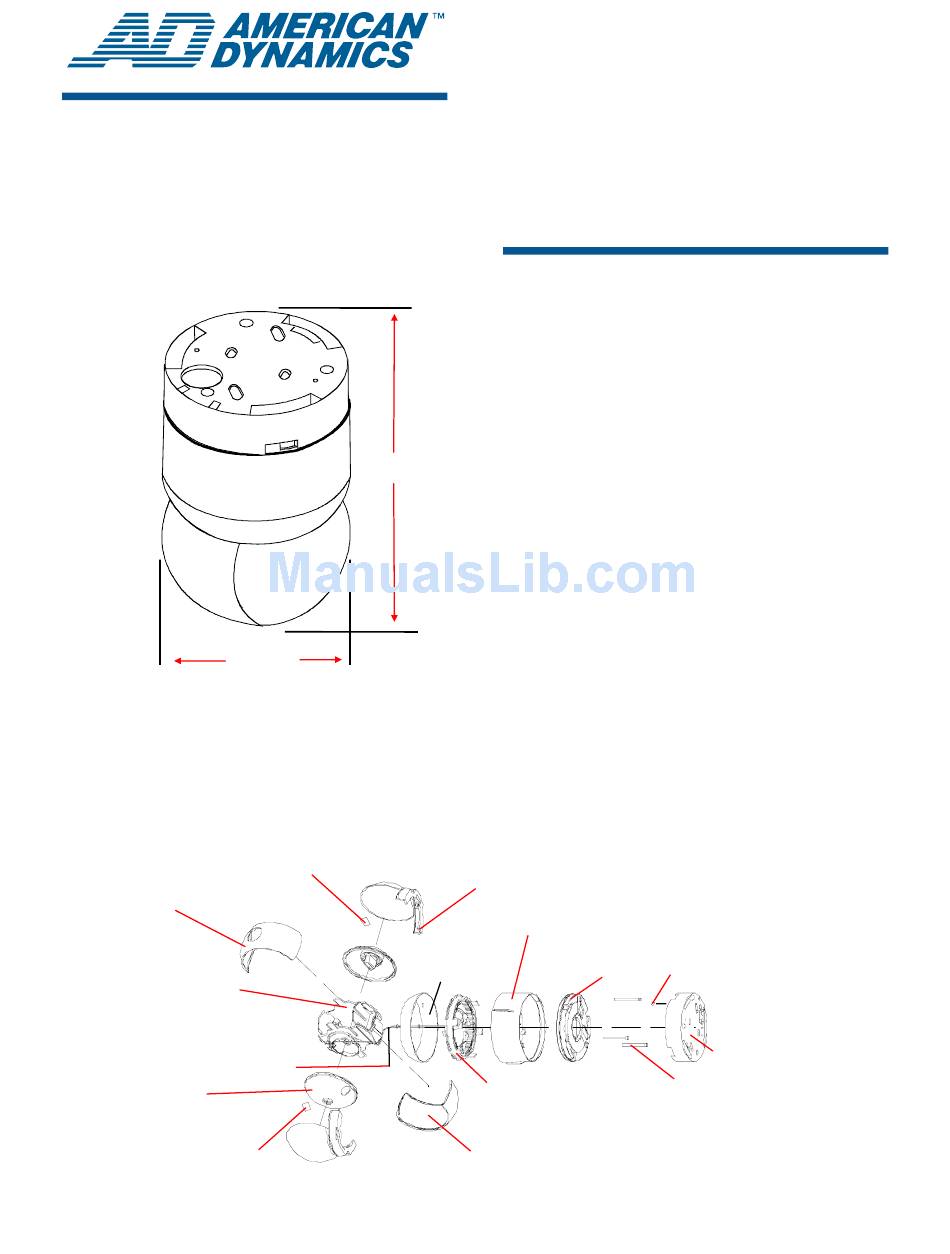

Figure 1. SpeedDome Ultra Drone,
01RDULTRA
0.66 kg
(1.45 lbs)
120 mm
(4.7 in.)
Figure 2. SpeedDome Ultra Drone—Exploded View
Slot cover (with lens port),
0500-6709-01
Yoke,
0500-7258-01
Video cabling, 06003-0101-01;
Power cabling, 0650-1993-01
(including cable ties, 6009-0006)
Lens carriage
bearing assy,
2510-0038-02 (2)
Tape, PET, 3200-0309-01
SpeedDome is a registered trademark of Sensormatic Electronics Corporation.
8000-1941-01, Rev. B1
205 mm
(8 in.)
Tape, PET, 3200-0309-01
Skirt,
0500-6710-01
SpeedDome® Ultra

Main Components

The drone consists of a housing and an eyeball
assembly—yoke, yoke brackets, slot cover, and cable
assembly—that "twist locks" onto a mounting base
(Figure 2).

Installation Procedures

Detailed mounting instructions, using various mounting
techniques, are presented
SpeedDome Ultra Camera Dome Installation and
Service Manual (8000-1362-01). To install the drone to
a hard ceiling using the install kit provided, see below.
Installing Drone to Sheet Rock
and Wood Beams
The drone base can be mounted directly to a sheet rock
ceiling or wood beam by following the instructions
below.

Install Kit Required

Kit, Installation, Ultra Drone (0351-1309-01)
Anchor toggle
Screw, STAP, AB, 4.2X32 PHP
Washer, Flat, M4
Bracket, Base Mounting
Screw, 1/4-20x3/8," PHP
Screw, PH, M3X-8, PHP, SS
Washer, 1/4, Flat
Yoke Bracket, 0500-7254-01 (2)
Housing, 0500-7255-01
Cap, 0500-7256-01
Pan Gear Bearing Assy,
2510-0040-02
Slot cover (without lens port),
0500-6709-02
Drone Installation
step-by-step in
2 2880-0073-01
2 5810-4091-120
2 5842-0300-020
2 0500-7193-01
1 2802-7407-65
6 5801-1051-120
1 2848-8100-07
Dot, 3200-0027-04
Base, 0500-7257-01
Screws (3), M3X45 PHP,
5801-1141-111
CCTV PRODUCTS
the
1
