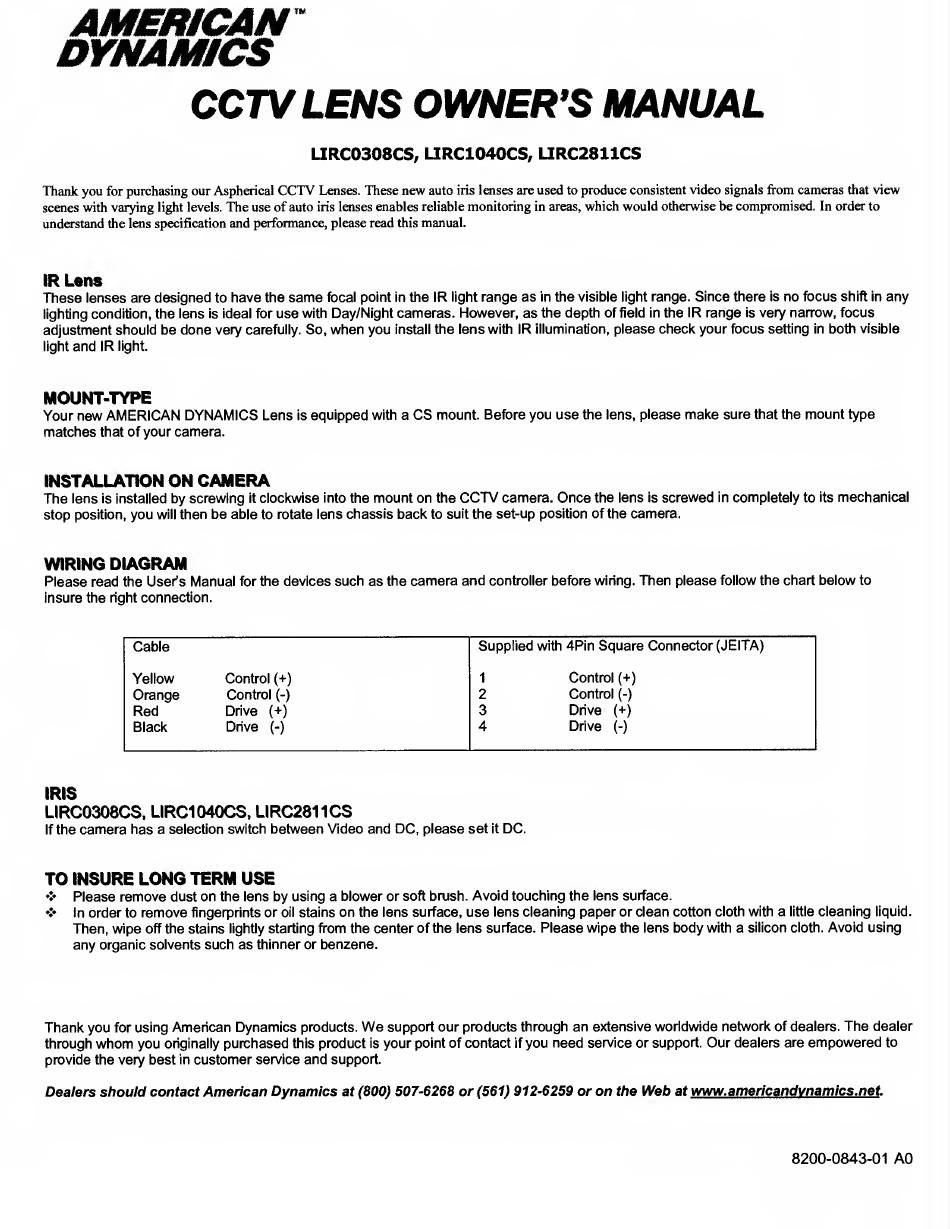

AMERICAN
DYNAMICS
CCTV LENS OWNER'S MANUAL
LIRC0308CS, L1RC1040CS, LIRC2811CS
Thank you for purchasing our Aspherical CCTV Lenses. These new auto iris lenses are used to produce consistent video signals from cameras that view
scenes with varying light levels. The use of auto iris lenses enables reliable monitoring in areas, which would otherwise be compromised. In order to
understand the lens specification and performance, please read this manual.
IR L«ns
These lenses are designed to have the same focal point in the IR light range as in the visible light range. Since there is no focus shift in any
lighting condition, the lens is ideal for use with Day/Night cameras. However, as the depth of field in the IR range is very narrow, focus
adjustment should be done very carefully. So, when you install the lens with IR illumination, please check your focus setting in both visible
light and IR light.
MOUNT-TYPE
Your new AMERICAN DYNAMICS Lens is equipped with a CS mount. Before you use the lens, please make sure that the mount type
matches that of your camera.
INSTALLATION ON CAMERA
The lens is installed by screwing it clockwise into the mount on the CCTV camera. Once the lens is screwed in completely to its mechanical
stop position, you will then be able to rotate lens chassis back to suit the set-up position of the camera.
WIRING DIAGRAM
Please read the User's Manual for the devices such as the camera and controller before wiring. Then please follow the chart below to
insure the right connection.
Cable
Supplied with 4Pin Square Connector (JEITA)
Yellow
Control (+) 1 Control (+)
Orange
Control (-) 2 Control (-)
Red Drive (+) 3 Drive (+)
Black Drive (-) 4 Drive (-)
IRIS
LIRC0308CS, LIRC1040CS, LIRC2811CS
If the camera has a selection switch between Video and DC, please set it DC.
TO INSURE LONG TERM USE
❖
Please remove dust on the lens by using a blower or soft brush. Avoid touching the lens surface.
❖
In order to remove fingerprints or oil stains on the lens surface, use lens cleaning paper or clean cotton cloth with a little cleaning liquid.
Then, wipe off the stains lightly starting from the center of the lens surface. Please wipe the lens body with a silicon cloth. Avoid using
any organic solvents such as thinner or benzene.
Thank you for using American Dynamics products. We support our products through an extensive worldwide network of dealers. The dealer
through whom you originally purchased this product is your point of contact if you need service or support. Our dealers are empowered to
provide the very best in customer service and support.
Dealers should contact American Dynamics at (800) 507-6268 or (561) 912-6259 or on the Web at www.americandvnamics.net
8200-0843-01 AO
