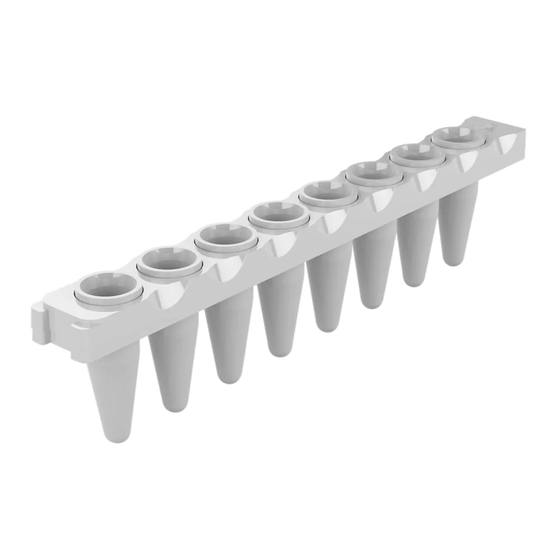

8 AFA-TUBE™ TPX Strip (PN 520292)
Intended Use
The product is designed for AFA-energetics™ sample processing in the following Covaris AFA
Focused-ultrasonicators: ME220, LE220-plus, LE220R-plus, and LE220RSc.
For current protocols:
www.covaris.com/technical-resources/
Operating Limits
LE220-plus, LE220R-plus, LE220Rsc, and R230 -
Average Incident Power (AIP) (Max)
ME220 - Average Incident Power (AIP) (Max)
Volume (Max)
Water Level
Centrifuge
Storage
Ordering Information
Part Name
8 AFA-TUBE TPX Strip (12)
Rack 8 AFA-TUBE TPX Strip
Rack 8 AFA-TUBE TPX Strip
Thin Foil Seals (25)
Strip Foil Seal (12)
8 AFA-TUBE TPX Strip Caps
Plate Definitions
Instrument(s)
ME220
LE220-plus, LE220R-plus, and LE220Rsc
Notes
• This strip must be used with the Rack 8 AFA-TUBE TPX strip
• Designed for use with automated 1, 8, and 96 channel pipettors
• Recommended instructions are subject to change without notice
• If Plate Definition is not in SonoLab™ contact Technical Support at
Part Number: 010503 Rev C
90 W continuous mode
250 W pulsing mode
9 W continuous mode
14 W pulsing mode
200 µl
Automatically adjusted
2,200 x RCF maximum
Dry at ambient temperature and protected from direct sunlight
Part Number
Part Description
520292
8 well AFA-TUBE TPX Strip
500685
LE220-plus, LE220R-plus, and LE220Rsc Rack
500609
ME220 Rack
520235
Foil seals for 12 Strip Plate
520108
Foil seals for sealing single strips during AFA processing
500639
Caps for sealing during AFA processing
Part Description
"8 AFA-TUBE TPX Strip PN 520292"
"LE220plus_500685 8 AFA-TUBE TPX Strip 1.8 offset"
®
PN 500609
or
PN 500685
TechSupport@covaris.com
1
Covaris
October 2020
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Covaris AFA-TUBE 520292
Summary of Contents for Covaris AFA-TUBE 520292
- Page 1 Covaris 8 AFA-TUBE™ TPX Strip (PN 520292) Intended Use The product is designed for AFA-energetics™ sample processing in the following Covaris AFA ® Focused-ultrasonicators: ME220, LE220-plus, LE220R-plus, and LE220RSc. For current protocols: www.covaris.com/technical-resources/ Operating Limits LE220-plus, LE220R-plus, LE220Rsc, and R230 -...
- Page 2 5.2 mm (maximum tip diameter 18.5 mm from end) Instructions for Use CAUTION: Remove the desiccant pack prior to use. The 8 AFA-TUBE TPX Strip is a ready-to-use sample processing vessel. The specially designed 8 Strip is optimized for use with Covaris Adaptive Focused Acoustics (AFA ®...
- Page 3 Covaris Recommended Sequence for Use 1. Fill the tubes: • Dispense the samples about 2 to 3 mm from the bottom of the tube or at the bottom depending on sample volume. 2. Seal the plate for AFA-processing: • ME220: Apply strip caps or foil seal strip to tops of tubes.
- Page 4 Covaris Appendix A: Removing or Installing the Intensifier (Covaris PN 500141) from a Covaris E System The 500141 Intensifier is a small inverted stainless steel cone centered over the E-Series transducer by four stainless wires. The wires are held in place by a black plastic ring pressed into the transducer well.
