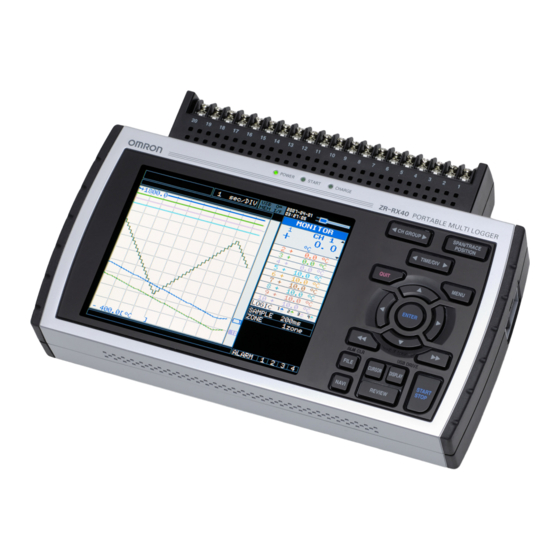

Portable multi logger
Hide thumbs Also See for ZR-RX40:
Table of Contents

Advertisement

Quick Links

Download this manual
Portable Multi Logger
ZR-RX40
Start Up Guide
Cat. No. Z259-E1-03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZR-RX40 and is the answer not in the manual?

Questions and answers

Related Manuals for Omron ZR-RX40

Summary of Contents for Omron ZR-RX40

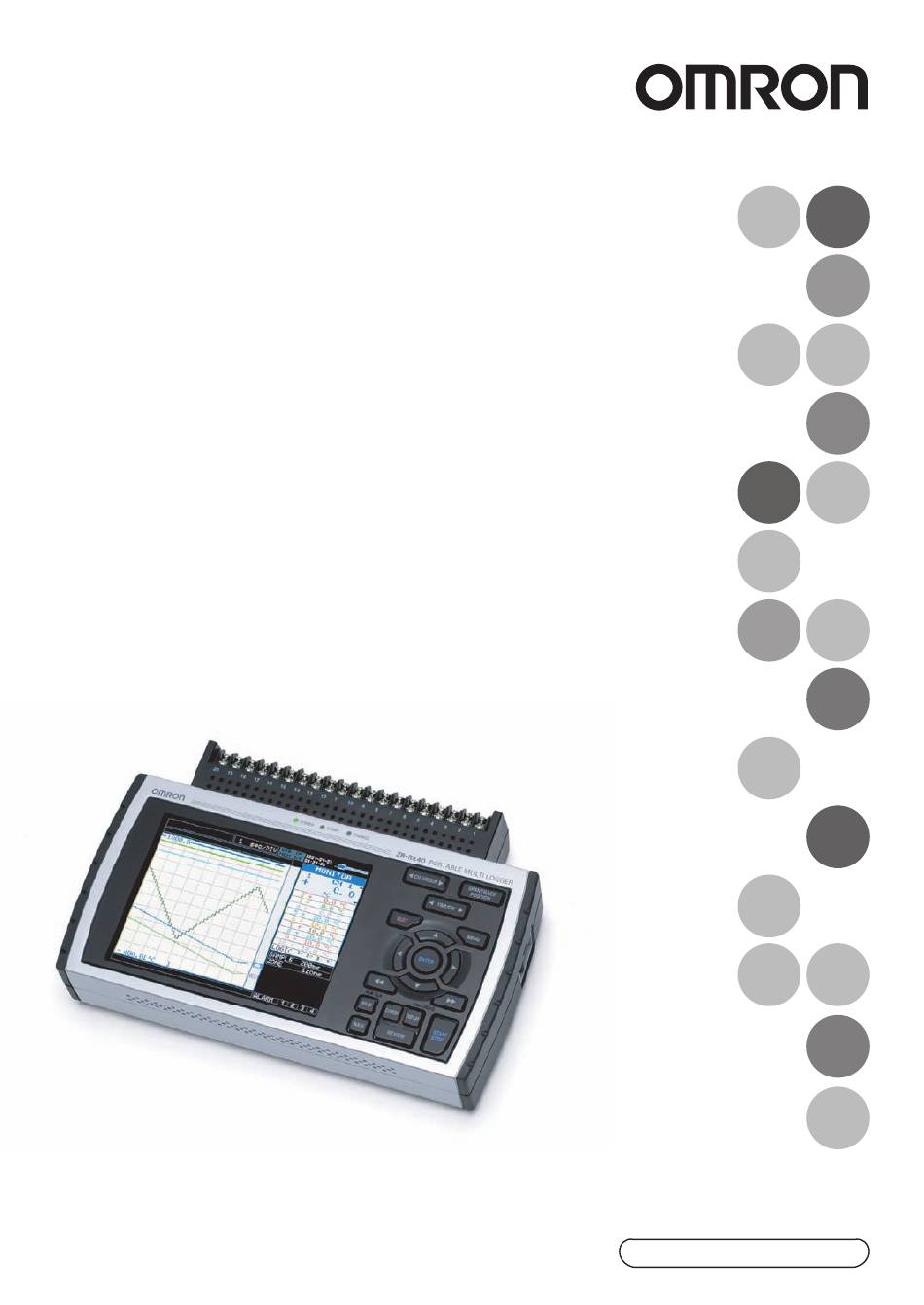

  • Page 1 Portable Multi Logger ZR-RX40 Start Up Guide Cat. No. Z259-E1-03...
  • Page 2 ZR-RX40. When using the ZR-RX40, be sure to observe the following: · The ZR-RX40 must be operated by personnel knowledgeable in electrical engineering. · To ensure correct use, please read this manual thoroughly to deepen your understanding of the product.
  • Page 3 APPLICATION CONSIDERATIONS (Please Read) BEFORE USE Start Up Guide BASIC OPERATIONS SPECIFICATIONS Portable Multi Logger ZR-RX40...
  • Page 4 LOSS OF PROFITS OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. In no event shall responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted.
  • Page 5 Performance data given in this document is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of OMRON’s test conditions, and the users must correlate it to actual application requirements. Actual performance is subject to the OMRON Warranty and Limitations of Liability.
  • Page 6 This product meets CISPR11 class A. The intended use of this product is in an industrial environment only. Traceability Information Representative in EU Omron Europe B.V. Wegalaan 67-69 2132 JD Hoofddorp, The Netherlands Manufacturer Omron Corporation, Sensing Devices & Components Div. H.Q., Application Sensors Division Shiokoji Horikawa, Shimogyo-ku, Kyoto 600-8530 JAPAN ZR-RX40 Start Up Guide...
  • Page 7 Indicates the possibility of electric shock under specific conditions. Indicates prohibition when there is a risk of minor injury from electrical shock or other source if the product is disassembled. Indicates general prohibitions for which there is no specific symbol. ZR-RX40 Start Up Guide...
  • Page 8 Hazard may occur from serious fire or electric shock. Do not connect voltages exceeding the rated voltage to the signal input terminals. Fire or hazard may occur in rare occasions from ignition, rupture or combustion. Do not use battery packs other than ZR-XRB1. ZR-RX40 Start Up Guide...
  • Page 9 • Do not touch the input terminals during measurement. 3.Others • Dispose of this product as industrial waste. • If there are any troubles, stop usage immediately, turn off the power supply and contact OMRON branch or sales office. ZR-RX40 Start Up Guide...
  • Page 10 • Do not drop or apply strong impact or force to the product. It may cause malfunction of the monitor or the main unit. 6.Maintenance • Do not use thinner, benzine, acetone or kerosene to clean this product. • Calibration should be performed periodically to maintain measurement accuracy. ZR-RX40 Start Up Guide...
  • Page 11 • Start Up Guide PDF files • User's Manual PDF files • “Wave Inspire RX“ Software Manual PDF files • “Smart Viewer RX40” Software Manual PDF files AC cable/AC adapter 100 to 240 VAC, 50/60 Hz ZR-RX40 Start Up Guide...
  • Page 12 Editor's Note Meaning of Symbols Menu items that are displayed on the ZR-RX40's LCD screen, and windows, dialog boxes and other GUI elements displayed on the PC are indicated enclosed by brackets "[ ]". Visual Aids Indicates points that are important to achieve the full product performance, Important such as operational precautions.

  • Page 13: Table Of Contents

    Revision History ..........48 ZR-RX40 Start Up Guide...

  • Page 14: Part Names

    BEFORE USE Part Names Connection Procedures Precautions to Observe When Performing Measurement Setting the Date and Time Descriptions of the Control Panel Keys Descriptions of the Menu Screens...
  • Page 15 USB interface terminal START CHARGE USB memory terminal Analog signal input terminals Power jack for the humidity sensor Bottom Panel Battery cover Power switch GND terminal External input/output terminals AC adapter connector LOGIC/PULSE EXT TRIG ALARM Part Names ZR-RX40 Start Up Guide...

  • Page 16: Connection Procedures

    Use a flathead screwdriver to push the button above the ground terminal while connecting the grounding cable to the ZR-RX40. Connect the other end of the cable to ground. Important Connect the GND terminal for safe measurement. The ZR-RX40 must also be grounded when sharing a common ground level with other devices. Note The grounding cable is not provided as a standard accessory and must be prepared separately.

  • Page 17: Making Connections To The Analog Input Terminals

    : 250 mA or below • Capacity : No limit (except each file must be within 2 GB) USB memory device with security functions such as fingerprint authentication cannot be used. USB memory device Connection Procedures ZR-RX40 Start Up Guide...

  • Page 18: Connecting To A Pc

    Connecting to a PC Use the USB, LAN Interface to connect the ZR-RX40 to a PC. Connection Using a USB Cable Use the USB, to connect the ZR-RX40 to a PC. USB cable Note If the USB cable is used, install the USB driver in your PC.
  • Page 19 LAN Connection Use a LAN cable to connect the ZR-RX40 to a PC. LAN cable Cable Types • Use a crossing cable when connecting directly to a PC, without using a hub. LAN cable (crossing) • Use a straight cable when using a hub.

  • Page 20: Mounting And Removing The Terminal Unit

    Remove and mount terminal unit as shown below. Important Make sure the ZR-RX40’s power is OFF when removing or mounting terminal units. To Remove Pull the terminal unit out towards the direction indicated by the arrow while pressing the two locks at the bottom of the unit.
  • Page 21 To Mount Insert the tabs at the top of the terminal unit into the slots of the ZR-RX40, and push in the unit until the lock tabs at the bottom of the unit are securely locked. (1) Insert tabs at the top of the terminal unit into the slots.

  • Page 22: Precautions To Observe When Performing Measurement

    Measure using batteries (sold separately: ZR-XRB1). Battery pack ZR-XRB1 (Option) is required. In the AMP settings menu, filter is used. Set the sampling interval which enables ZR-RX40’s digital filter (see table below). Number of Measuring Channels* Sampling Interval which enables Digital Filter...

  • Page 23: Setting The Date And Time

    Setting the Date and Time The ZR-RX40 includes a rechargeable internal battery for backup. If you are using the ZR-RX40 for the first time, charge the internal rechargeable battery and then make the date and time settings. Note If the ZR-RX40 is not used for a period of approximately six months, the internal rechargeable battery may be dis- charged and the date and time may revert to the initial settings.

  • Page 24: Descriptions Of The Control Panel Keys

    Used to make trace settings (set the waveform display to TRACE On or Off). Note: If the QUIT key is pressed when the ZR-RX40 is in the SPAN, POSITION, or TRACE mode, the display returns to MONITOR mode. TIME/DIV key Press the TIME/DIV key to change the time axis display range on the waveform screen.
  • Page 25 START/STOP (USB DRIVE) key Press the START/STOP key to perform a data capture start operation while the ZR-RX40 is in the Free Running status, and a data capture stop operation when data capture has ended. If this key is held down while the power to the ZR-RX40 is turned on, the ZR-RX40 goes into USB Drive Mode.
  • Page 26 [TRIG] menu. FILE key Press the FILE key to save data to the ZR-RX40's internal memory and to a USB memory device. NAVI key Press the NAVI key to display operational descriptions during the Free Running status, and during data capture and data replay operations.

  • Page 27: Descriptions Of The Menu Screens

    Displays the current time scale. Device access lamp Turns red when USB memory is accessed. When the ZR-RX40’s internal memory is being accessed, the MEM lamp turns red. Key lock lamp Displays the key lock status. (Yellow = keys locked, white = not locked) Remote lamp Displays the remote status.
  • Page 28 During a data capture operation, this bar displays the remaining memory capacity of the device used for data capture. When data is being replayed, the display position information is displayed here. ZR-RX40 Start Up Guide Descriptions of the Menu Screens...

  • Page 29: Basic Operations

    BASIC OPERATIONS Measurement Procedure 1. Preparations: Preparations for Data Capture 2. Setup: Setting the Temperature Measurement 3. Data Capture: Measuring the Temperature 4. Data Replay: Replaying Captured Data Convenient Functions...

  • Page 30: Measurement Procedure

    We want to check captured data even during a data capture operation. Items that must be T thermocouples, USB memory device supplied Note: If you do not have a USB memory device, capture data to the ZR-RX40's internal memory instead. Measurement Procedure ZR-RX40 Start Up Guide...

  • Page 31: Preparations: Preparations For Data Capture

    Connect the thermocouple to measurement object 2 and the CH 2 terminal. Connect the AC adapter. Insert the USB memory device. Turn on the power supply. CH 1 CH 2 T thermocouple T thermocouple Measurement Measurement object 1 object 2 ZR-RX40 Start Up Guide 1. Preparations: Preparations for Data Capture...

  • Page 32: Setup: Setting The Temperature Measurement

    Select [TEMP.] for the Input parameter for CH 1 and CH 2. (a) Move the cursor to the [Input] parameter opposite CH 1 and select [TEMP.] (b) Make the same setting for CH 2. 2. Setup: Setting the Temperature Measurement ZR-RX40 Start Up Guide...
  • Page 33 (c) The file settings box shown in the following screen opens. This box is used to specify file names for the ZR- RX40's internal memory and for the USB memory device. ZR-RX40 Start Up Guide 2. Setup: Setting the Temperature Measurement...
  • Page 34 "<TEST>" folder, and then press the ENTER key. Check that "<TEST>" appears opposite "Folder", move the cursor to the [OK] button, and then press the ENTER key. 2. Setup: Setting the Temperature Measurement ZR-RX40 Start Up Guide...
  • Page 35 In the screen displayed below, we can check the capture destination, the amount of data that can be captured, and the allowable data capture time. This completes all the settings required for data capture. ZR-RX40 Start Up Guide 2. Setup: Setting the Temperature Measurement...

  • Page 36: Data Capture: Measuring The Temperature

    Replaying data being captured Data that was captured in the past can be replayed while new data is being captured to the ZR-RX40. In addition, the past data can be compared with the current input waveform in a 2-screen format.
  • Page 37 (b) A confirmation message is displayed. Press the –(a) –(a) ENTER key. (c) Data capture ends, and the ZR-RX40 goes into the Free Running status. This completes the data capture operation. ZR-RX40 Start Up Guide 3. Data Capture: Measuring the Temperature...

  • Page 38: Data Replay: Replaying Captured Data

    (e) Press the QUIT key to end the data replay operation. A confirmation message is displayed. Press the ENTER key. Stop replaying Data replay ends, and the ZR-RX40 goes into the Free Running status. The above shows the basic ZR-RX40 operations. 4. Data Replay: Replaying Captured Data...

  • Page 39: Convenient Functions

    Note The span, position and trace operations can be performed while the ZR-RX40 is in the Free Running status, while it capturing data, and while it is replaying data. The changes made are applied to the displayed data only, and so the original data is not affected in any way.

  • Page 40: Specifications

    SPECIFICATIONS Standard Specifications External Dimensions...

  • Page 41: Standard Specifications

    ±(0.05 % of rdg +1.0 ° C) 0 ≤ TS ≤ 1300 ±(0.1 % of rdg +1.0 ° C) 0 ≤ TS ≤ 2315 ±(0.1 % of rdg +1.5 ° C) ±0.5 ° C Reference contact compensation accuracy Standard Specifications ZR-RX40 Start Up Guide...
  • Page 42 Alarm output Number of channels 4 ch Output format Open collector output (pull-up resistance: 10 kΩ) 5 to 24 VDC, up to 100 mA Output conditions Level judgment, window judgment, logic pattern judgment, pulse judgment ZR-RX40 Start Up Guide Standard Specifications...
  • Page 43 Data transfer to the PC (realtime memory) Sections functions PC control of the ZR-RX40 Ethernet Web server function (Operation of ZR-RX40, Displays ZR-RX40's functions screen image on browser) FTP function (Transfers and deletes measured data from internal memory via network)

  • Page 44: External Dimensions

    External Dimensions (Unit: mm) ZR-RX40 mounting screw holes Two, M4, depth 6 23.5 ZR-RX40 Start Up Guide External Dimensions...

  • Page 45: Revision History

    Cat. No. Z259-E1-03 Revision code Revision code Date Revised contents April 2007 Original production August 2007 Rear view added in External Dimensions and minor corrections October 2007 Notice on EMC Directive added and minor corrections. Revision History ZR-RX40 Start Up Guide...
  • Page 46 Tel: (49)7032-811-0/Fax: (49)7032-811-199 OMRON ELECTRONICS LLC One Commerce Drive Schaumburg IL 60173-5302 U.S.A. Tel: (1) 847-843-7900/Fax: (1) 847-843-7787 OMRON ASIA PACIFIC PTE. LTD. No. 438A Alexandra Road # 05-05/08 (Lobby 2), Alexandra Technopark, Singapore 119967 Tel: (65) 6835-3011/Fax: (65) 6835-2711 OMRON (CHINA) CO., LTD.
