VGA WIRELESS EXTENDER
A udio
➊
P ower input
➋
P ower led
➌
R eset
➍
Data transmission led
➎
Connection led
➏
VGA input
➐
A ntenna
➑

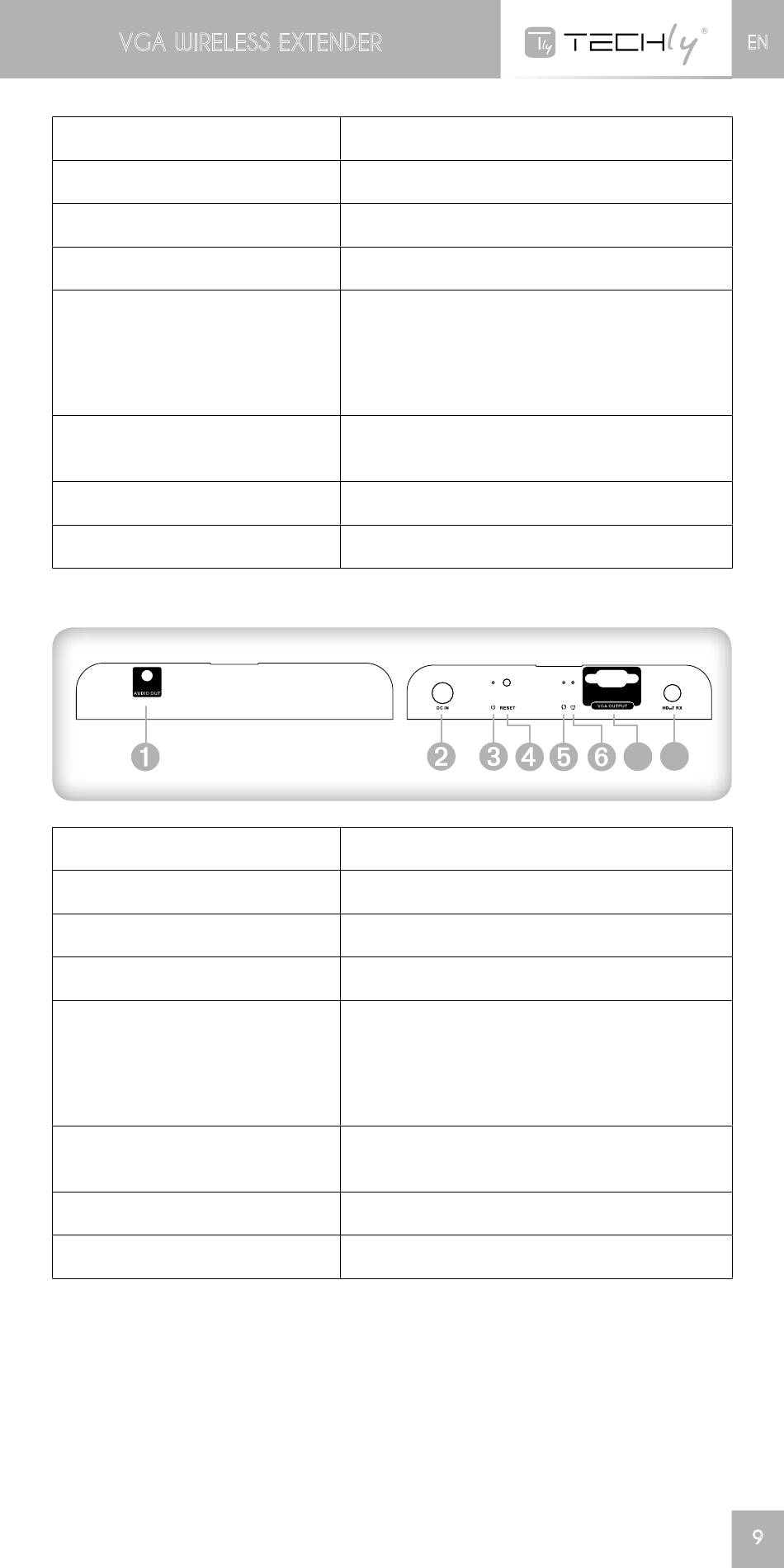

2. VGA EXTENDER RX (Receiver)
A udio
➊
➋ P ower input
P ower led
➌
➍ R eset
Data transmission led
➎
Connection led
➏
VGA output
➐
Antenna
➑
3.5mm audio jack
Connect with DC5V/3A power adapter
It lights when power is on
Press reset button to restart the device
Led blinks slowly when it is building
connection. Led blinks fast when
it is successfully connected and
transmitting data
It lights when wireless signal is well
connected
Connect with VGA source device
Launch wireless signal
3.5mm audio jack
Connect with DC5V/3A power adapter
It lights when power is on
Press reset button to restart the device
Led blinks slowly when it is building
connection. Led blinks fast when
it is successfully connected and
transmitting data
It lights when wireless signal is well
connected
Connect with VGA display device
Receive wireless signal
