www.techly.com
EXTENDER/SPLITTER 1X8 VGA UTP CON AUDIO
VGA UTP EXTENDER 1X8 SPLITTER WITH AUDIO
Manuale d'istruzione
User's manual
IDATA MSV-AU8B

Advertisement

loading
Need help?

Need help?

Do you have a question about the IDATA MSV-AU8B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Techly IDATA MSV-AU8B

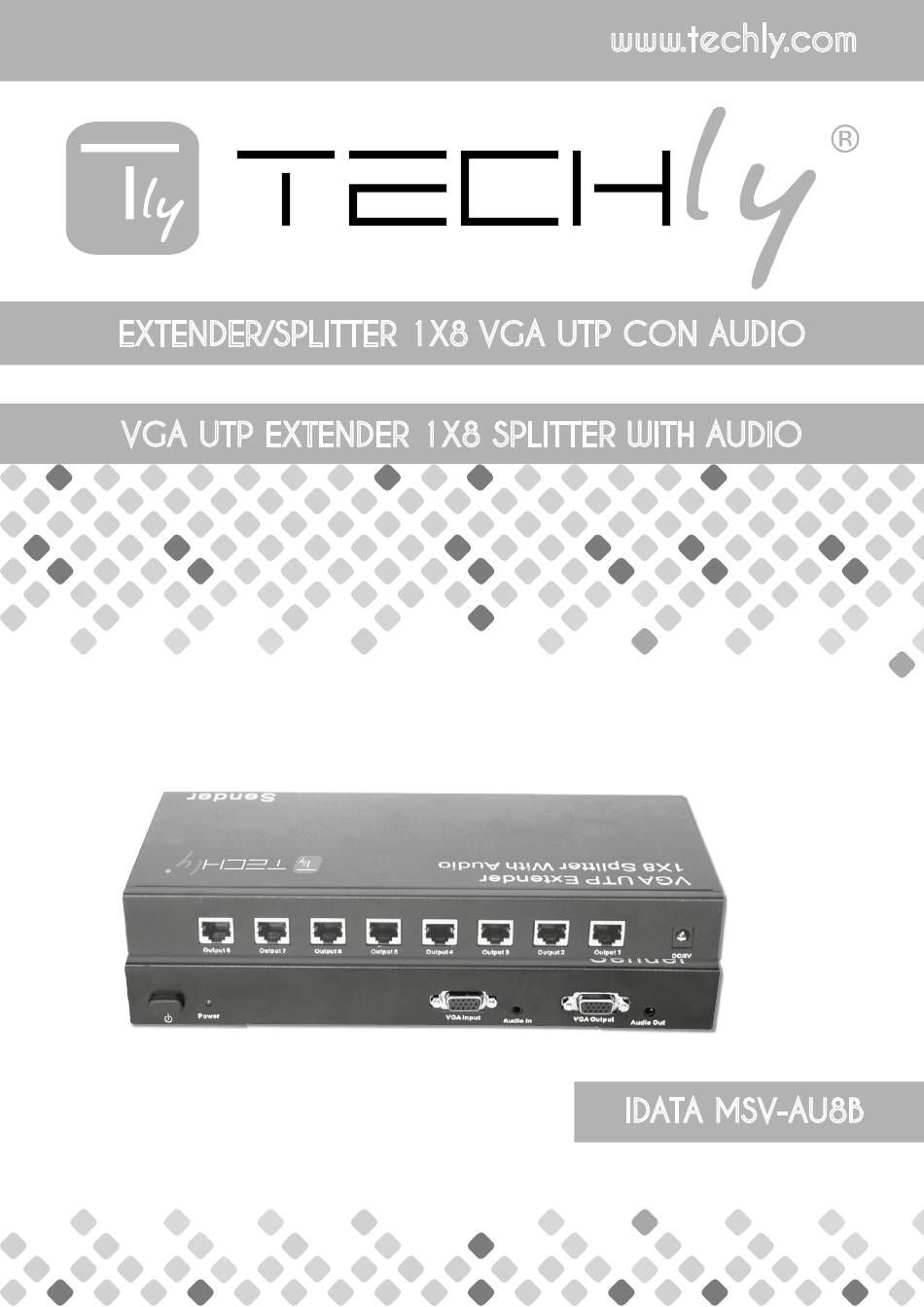

  • Page 1 EXTENDER/SPLITTER 1X8 VGA UTP CON AUDIO VGA UTP EXTENDER 1X8 SPLITTER WITH AUDIO Manuale d’istruzione User's manual IDATA MSV-AU8B...
  • Page 2: Table Of Contents

    EXTENDER/SPLITTER 1X8 VGA UTP CON AUDIO MANUALE D'ISTRUZIONE INDICE 1.0 Introduzione ................................................2.0 Specifiche ..................................................3.0 Contenuto della confezione ................................... 4.0 Descrizione apparecchiatura ................................5.0 Collegamento e funzionamento ............................. 6.0 Uso previsto e importanti informazioni sulla sicurezza ....... EXTENDER/SPLITTER 1X8 VGA UTP CON AUDIO Gentile Cliente Grazie per aver acquistato questo prodotto.
  • Page 3: Specifiche

    EXTENDER/SPLITTER 1X8 VGA UTP CON AUDIO 1.1 CARATTERISTICHE Questa apparecchiatura ha numerose caratteristiche che la rende particolarmente performante, tra queste si può trovare: • Estende il segnale video VGA e audio stereo fino a 300m tramite un cavo UTP con separatore interno di coppie. • Possibilità di regolazione del GAIN (guadagno) e del PEAK (picco) per adattarsi alla differente lunghezza del cavo UTP. GAIN: regolazione della luminosità. PICCO: adeguamento obliquo. • Supporta massima risoluzione di 1920x1200. • Doppia uscita sull’unità locale: 1 uscita VGA per monitor locale e 8 uscite UTP per dispositivi remoti. • Lavora con monitor, proiettori, HDTV e flat panel. 2.0 SPECIFICHE Connettori ingresso/uscita Connettore ingresso VGA (Femmina 15pin), Stereo Audio...
  • Page 4: Contenuto Della Confezione

    EXTENDER/SPLITTER 1X8 VGA UTP CON AUDIO 3.0 CONTENUTO DELLA CONFEZIONE Prima di utilizzare l’unità, verificare che la confezione sia integra e contenga tutte le parti sotto elencate: 1) Extender/Splitter 1x8 VGA UTP 2) Manuale utente 3) Alimentatore 5V@4A DC per VGA UTP Extender 1X8 Ricevitore aquistabile separatamente con codice IDATA EX-DL45 4.0 DESCRIZIONE APPARECCHIATURA EXTENDER/SPLITTER 1X8 VGA UTP CON AUDIO: Extender VGA UTP 1x8 Splitter con Audio Trasmettitore Power VGA Input Audio In VGA Output Audio Out...
  • Page 5: Collegamento E Funzionamento

    VGA OUT AUDIO VGA OUT AUDIO VGA OUT AUDIO VGA OUT AUDIO VGA OUT AUDIO VGA OUT AUDIO VGA OUT VGA OUT AUDIO AUDIO VGA OUT AUDIO VGA OUT AUDIO Cavo Cat.5E/6 IDATA MSV-AU8B Ricevitore aggiuntivo opzionale IDATA EX-DL45 VENDUTO SEPARATAMENTE...
  • Page 6: Uso Previsto E Importanti Informazioni Sulla Sicurezza

    Contattate le autorità locali competenti per ottenere informazioni in merito allo smaltimento corretto della presente apparecchiatura. Con il marchio CE, Techly garantisce che il prodotto e conforme alle norme e direttive europee ®...
  • Page 7 VGA UTP EXTENDER 1X8 SPLITTER WITH AUDIO USER'S MANUAL TABLE OF CONTENTS 1.0 Introduction ................................................2.0 Specifications ..............................................3.0 Package Contents ..........................................4.0 Panel Descriptions ..........................................5.0 Connection and Operation ................................6.0 Intended use and safety instruction ........................VGA UTP EXTENDER 1X8 SPLITTER WITH AUDIO Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product.
  • Page 8 VGA UTP EXTENDER 1X8 SPLITTER WITH AUDIO 1.1 FEATURES This device has many features that enable it to perform in a superior manner. Among those features you will find: • Extends VGA video and stereo audio signal max up to 300m over one UTP cable with cross stand inside. • Adjusting GAIN and PEAK to adapt for the different length of UTP cable. GAIN: Brightness adjustment. PEAK: Skew adjustment. • Supports resolution max up to 1920x1200. • Dual output at local unit: 1 x VGA output for local site, plus 8 x UTP output for remote site. • Works with monitors, projectors, HDTV, and flat panels. 2.0 SPECIFICATIONS Input /Output Connector Input connector...
  • Page 9 VGA UTP EXTENDER 1X8 SPLITTER WITH AUDIO 3.0 PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: 1) VGA UTP Extender 1X8 Splitter 2) User’s Manual 3) One piece of 5V@4A DC Power Supply for VGA UTP Extender 1X8 Splitter Additional receiver sold separately with P/N: IDATA EX-DL45 4.0 PANEL DESCRIPTIONS EXTENDER/SPLITTER 1X8 VGA UTP WITH AUDIO: VGA UTP Extender 1x8 Splitter with Audio Sender Power VGA Input Audio In VGA Output Audio Out...
  • Page 10 AUDIO VGA OUT AUDIO VGA OUT AUDIO VGA OUT AUDIO VGA OUT AUDIO VGA OUT AUDIO VGA OUT VGA OUT AUDIO AUDIO VGA OUT AUDIO VGA OUT AUDIO Cat 5E/6 Cable IDATA MSV-AU8B Optional Additional Receiver IDATA EX-DL45 SOLD SEPARATELY...
  • Page 11 There is a separate collections system for these products in compliance with WEEE directive, otherwise contaminative and hazardous substances can pollute the environment. With the CE sign, Techly ensures that the product is conformed to the basic European standards and ®...
  • Page 12 www.techly.com...
