ADDAC705 Assembly Guide
STEP 3:

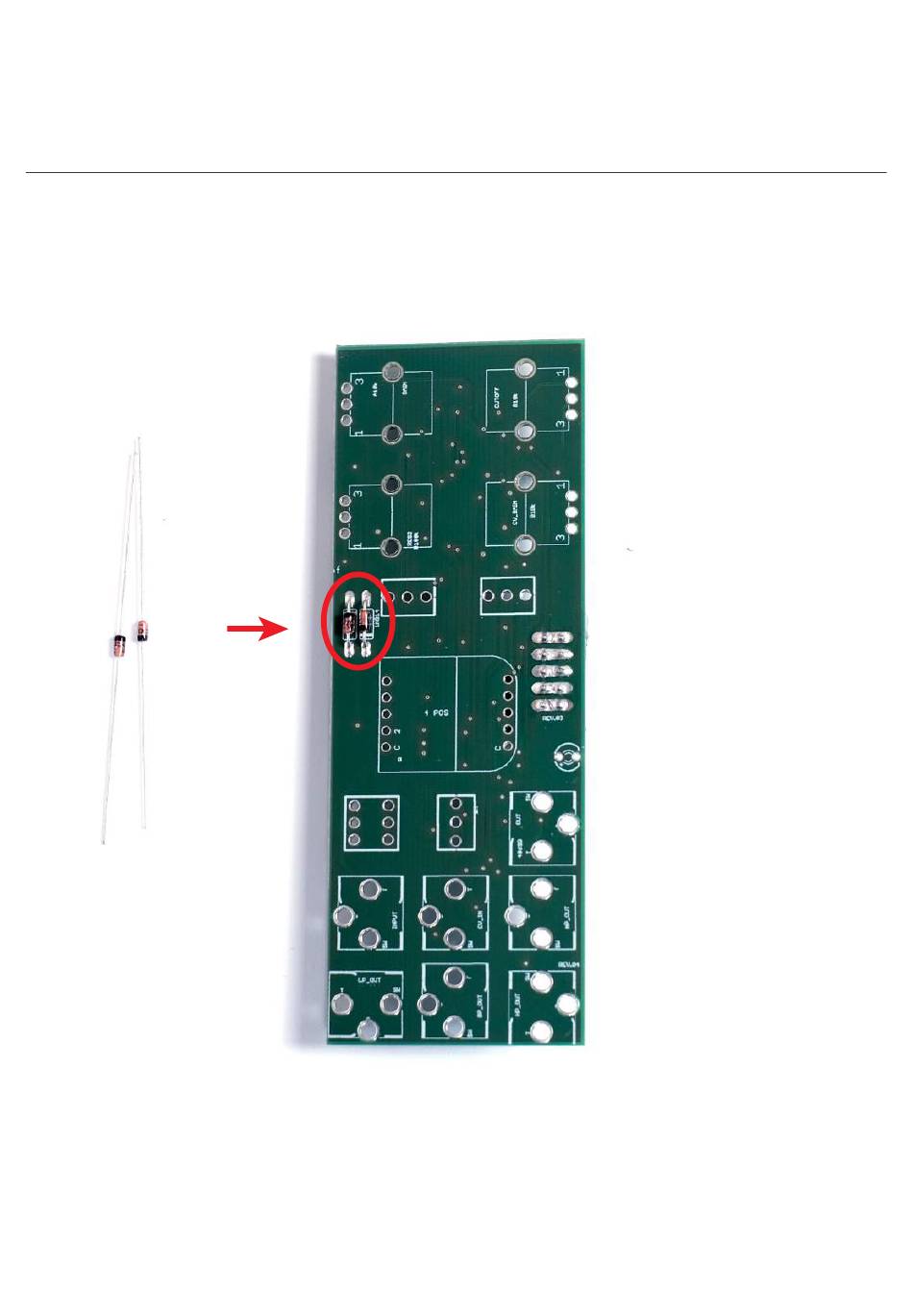

Next place the 2 diodes.
Notice the orientation marked on the pcb.
ADDAC SYSTEM
page 5
