TruXedo Lo Pro Owner's Manual page 4

WITHOUT TRAIL RAIL SYSTEM
3:
Install Non-Trail rail rear bracket with bolt
as shown below.
ATTENTION: If needed,
clean out threaded holes
with a M6 Tap in pickup
bed before installing bolts.
Driver Side Rear of Bed
5:
Assemble front
bracket to
Bulkhead as
shown below
while leaving
D
bolts finger tight
at this time.
ATTENTION: If needed, clean out threaded holes
with a M8 Tap in pickup bed before installing bolts.

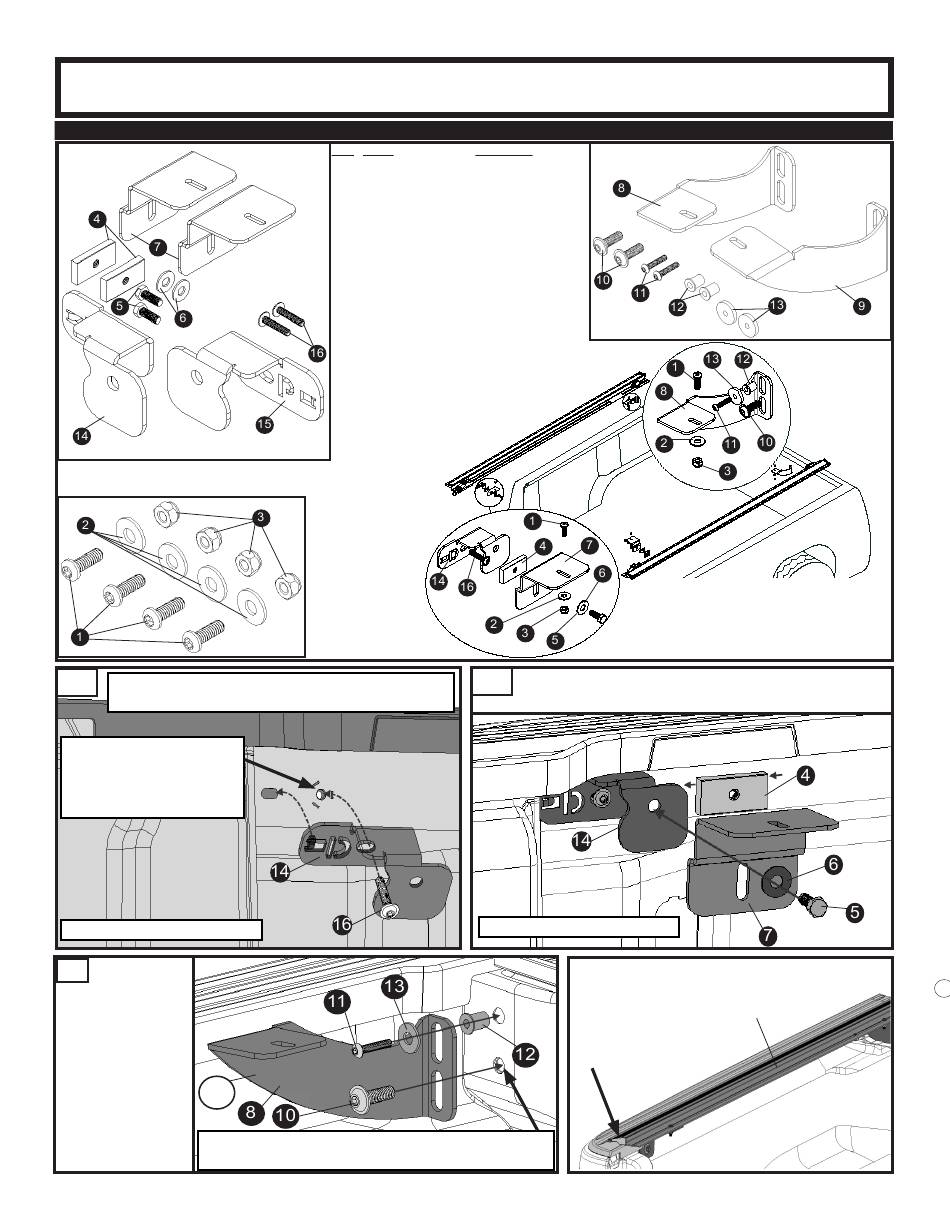

INSTALLING BRACKETS WITHOUT TRAIL RAIL:
Item Part #
1. 1705596 BUTTON HEAD SCREW 1/4"-20
2. 1700427 FLAT WASHER_1/4"_USS
3. 1701543 HEX NUT_FULL_NYLON LOCK_1/4"-20
4. 1705880 5/16" RAIL SYSTEM NUT
5. 1705954 CAP SCREW HEX HEAD 5/16-18
6. 1700428 FLAT WASHER 5/16-18
7. 1706275 DRIVER/PASSENGER REAR BRACKET
8. 1706273 DRIVER FRONT BRACKET
9. 1706274 PASSENGER FRONT BRACKET
10 1706277 CAP SCREW BUTTON HEAD M8
11. 1706278 CAP SCREW BUTTON HEAD 10-32
12. 1706279 WELL NUT 10-32
13. 1706347 FLAT WASHER
14. 1706339 DR REAR BRACKET FOR NON TRAIL
RAIL
15. 1706340 PASS REAR BRACKET FOR NON
TRAIL RAIL
16. 1706342 CAP SCREW BUTTON
HEAD M6
Description
Assemble bolt/washer and bracket as
4:
shown and leave loose at this time.
Driver Side Rear of Bed
ATTENTION: PORTION OF SIDE
RAIL SITS ON TOP OF TRUCK
BED RAIL
ATTENTION: RAIL
SITS ON TOP OF TRUCK
BED RAIL.
4
B
