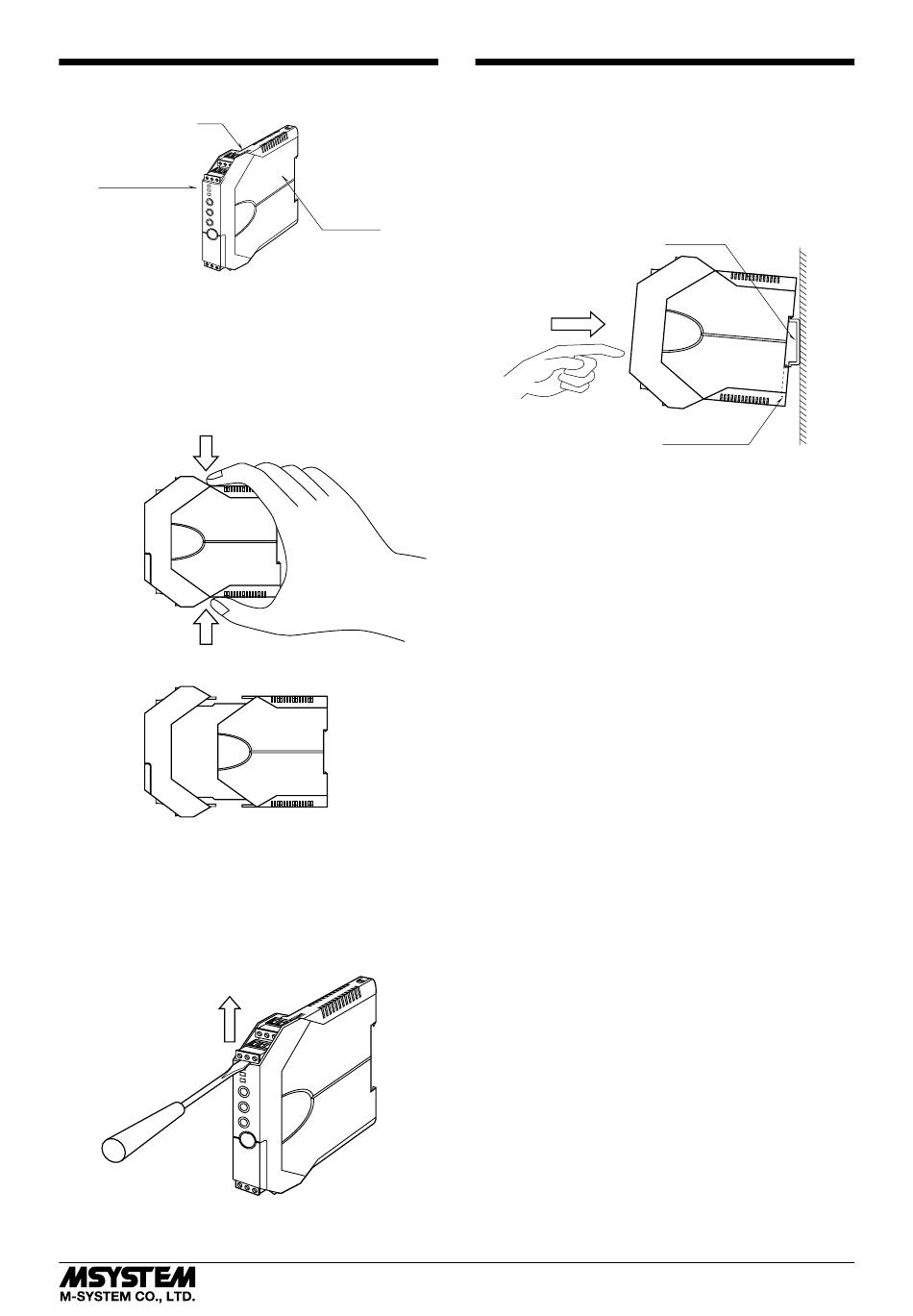

COMPONENT IDENTIFICATION

Body
Specifications
(side)
■ HOW TO OPEN THE COVER WHEN SETTING DIP SW
Hold at the top and bottom of the unit as shown below
and slide the housing cover gently to open until it hits the
latching inside the unit.
Caution:
Handle the cover carefully to protect internal components from damage.
DO NOT pull beyond where the housing cover is latched. The plastic
housing may be damaged.
• Housing Cover Fully Opened
■ HOW TO SEPARATE THE EURO TYPE CONNECTOR
TERMINAL BLOCKS
When you need to separate the euro type connector terminal
blocks from the transmitter body for wiring, insert a minus
driver between the euro type connector terminal block and
the housing body, pull up the driver and pull out the euro
type connector terminal block.
SW Setting
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

INSTALLATION

■ DIN RAIL MOUNTING
Set the unit so that its DIN rail adaptor is at the bottom.
Position the upper hook at the rear side of the unit on
the DIN rail and push in the lower. When removing the
unit, push down the DIN rail adaptor utilizing a minus
screwdriver and pull.
M3LV
DIN Rail
35mm wide
Spring Loaded
DIN Rail Adaptor
