STATUS INDICATOR LED

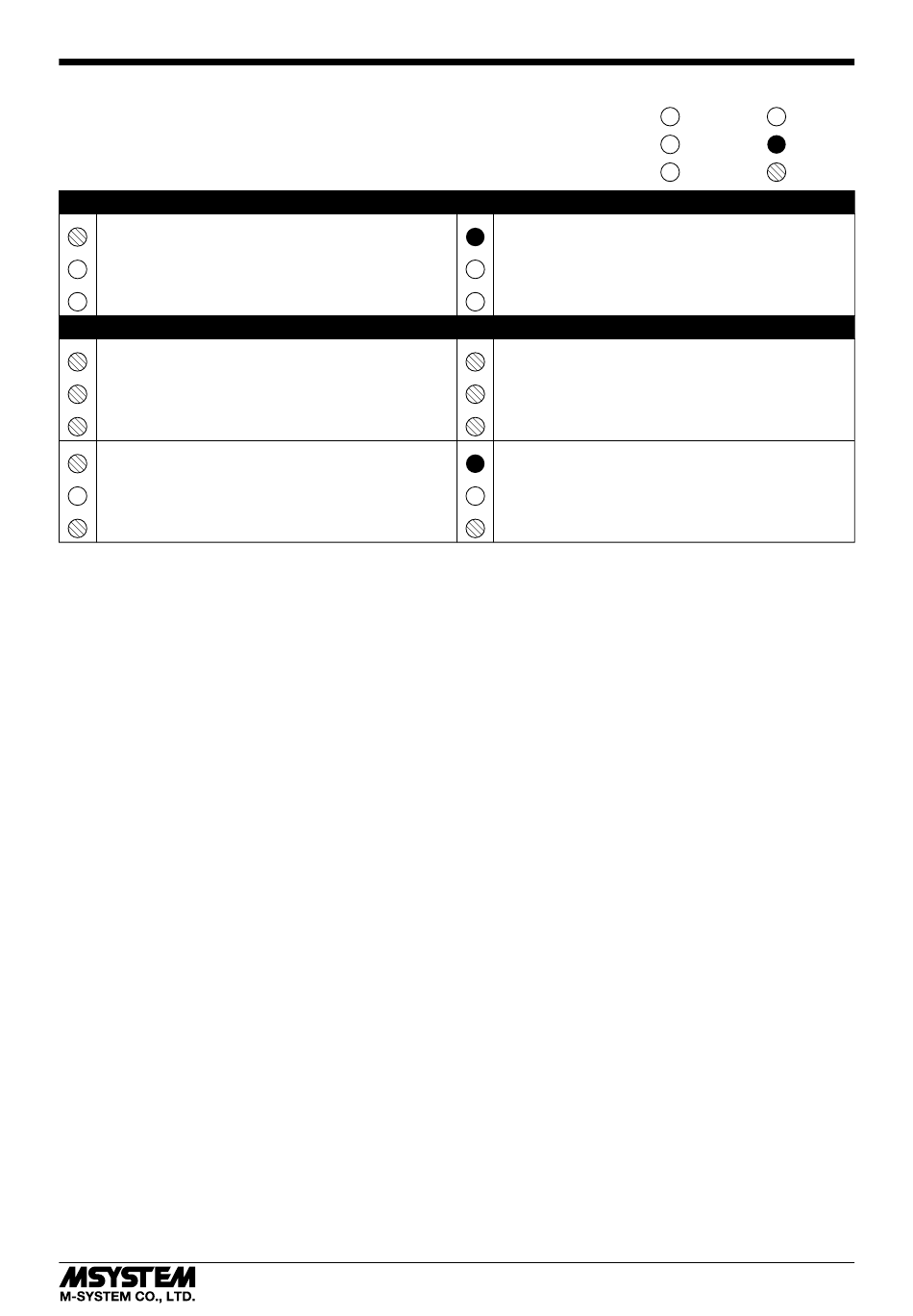

Combinations of the three front LEDs (LD1, LD2, LD3) in-
dicate the transmitter's operating status by different blink-
ing patterns.
Examples are shown below.
NORMAL OPERATION (RUN) MODE
LD1
PC Configuration RUN Mode (Option A)
G
The transmitter is configured via PC and
LD2
is in normal operating conditions.
LD3
ERROR MODE
LD1
System Error
A
Indicates the CPU's communication error.
LD2
A
LD3
A
LD1
Output Saturated in PC Configuration Mode
G
(Option A)
LD2
The output is saturated.
(approximately below -15% or above 115%)
LD3
A
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
LD1
DIP SW Configuration RUN Mode
G
The transmitter is configured via DIP SW and
LD2
is in normal operating conditions.
LD3
LD1
DIP SW Error
R
DIP SW configuration is inappropriate.
LD2
Check the DIP SW setting referring to Tables 2 – 6.
R
LD3
R
LD1
Output Saturated in DIP SW Configuration Mode
G
The output is saturated.
LD2
(approximately below -15% or above 115%)
LD3
A
M3LV
A Amber LED OFF
G Green LED ON
R Red LED Blink
