G6 & G10 USER MANUAL
The formula below can be used to calculate the maximum number of wires recommended for a cable bundle used with a max cable exit
of 1.59". Using this formula, the table below shows a sampling of the maximum number of wires that will fit in each of the two oblong cable
exits; (G6) or three oblong cable exits (G10); for example each exit will hold a maximum of 683 signal (20 AWG) wires OR 202 coax (RG316)
wires.
Formula to calculate approximate number of one wire type that will fit in each cable exit:
General Guidelines
Max Oblong Bushing Opening= 1.59" (D)
Wire Type
20 AWG Signal - Teflon
10 AWG Power - PVF
RG316 Coax - 50 OHM
NOTE: Addition of shrink tubing or braid will reduce maximum number of wires through cable exit.
4
CABLE BUNDLE WIRE INFORMATION
G6 ITA • PART # 410 104 273
G10 ITA • PART # 410 104 272

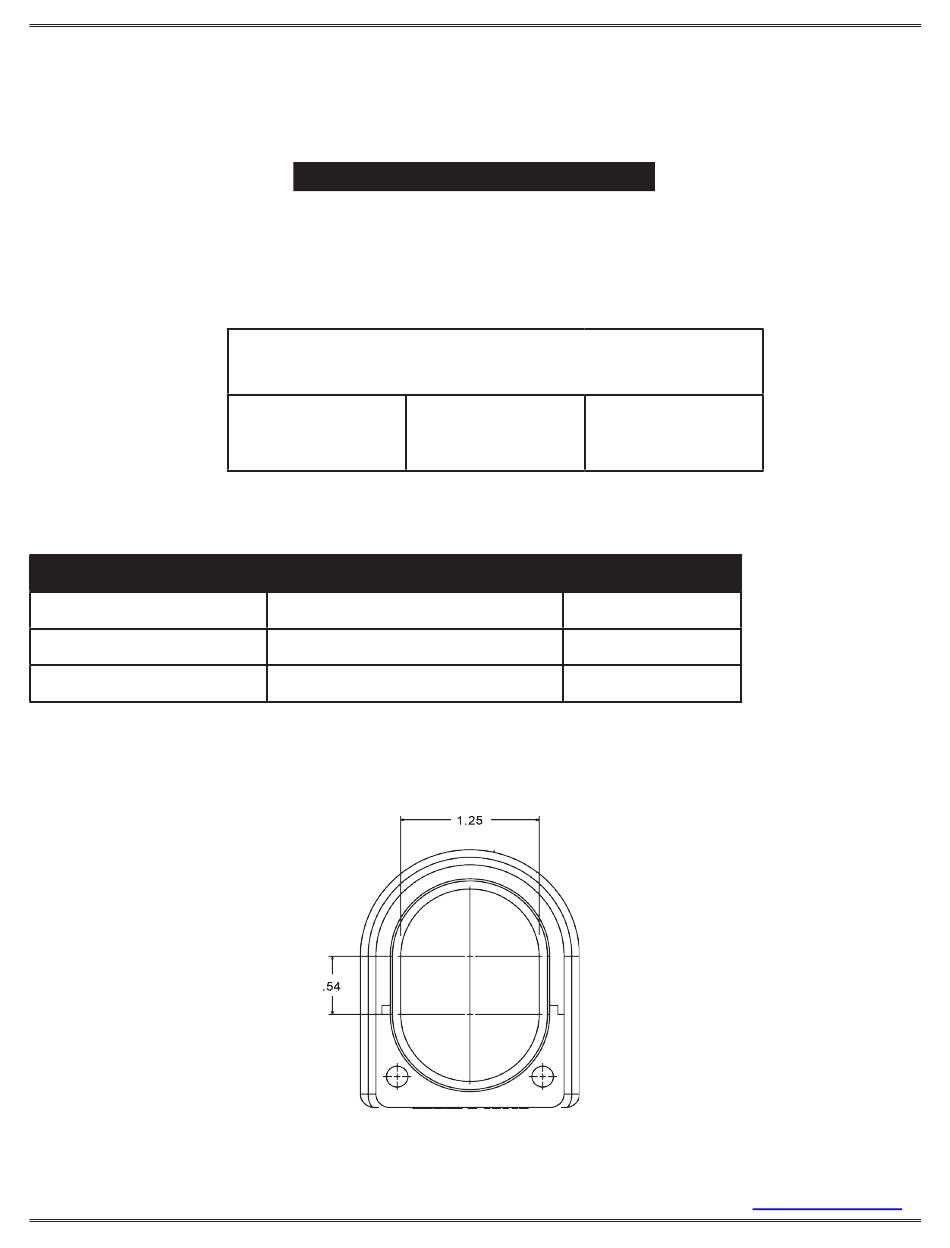

Max Oblong Cable Opening Diameter= 1.59"
N={D/d - 1)
D=Diameter of
N=Number of Wires
Converted Oblong
Bushing
Outside Diameter of Wire (d)
.056
.160
.100
For more information visit vpc.com
(.907)
2
d=Outside Diameter
of Wire
Number of Wires (N)
683
72
202
VPC
RETURN TO INDEX
