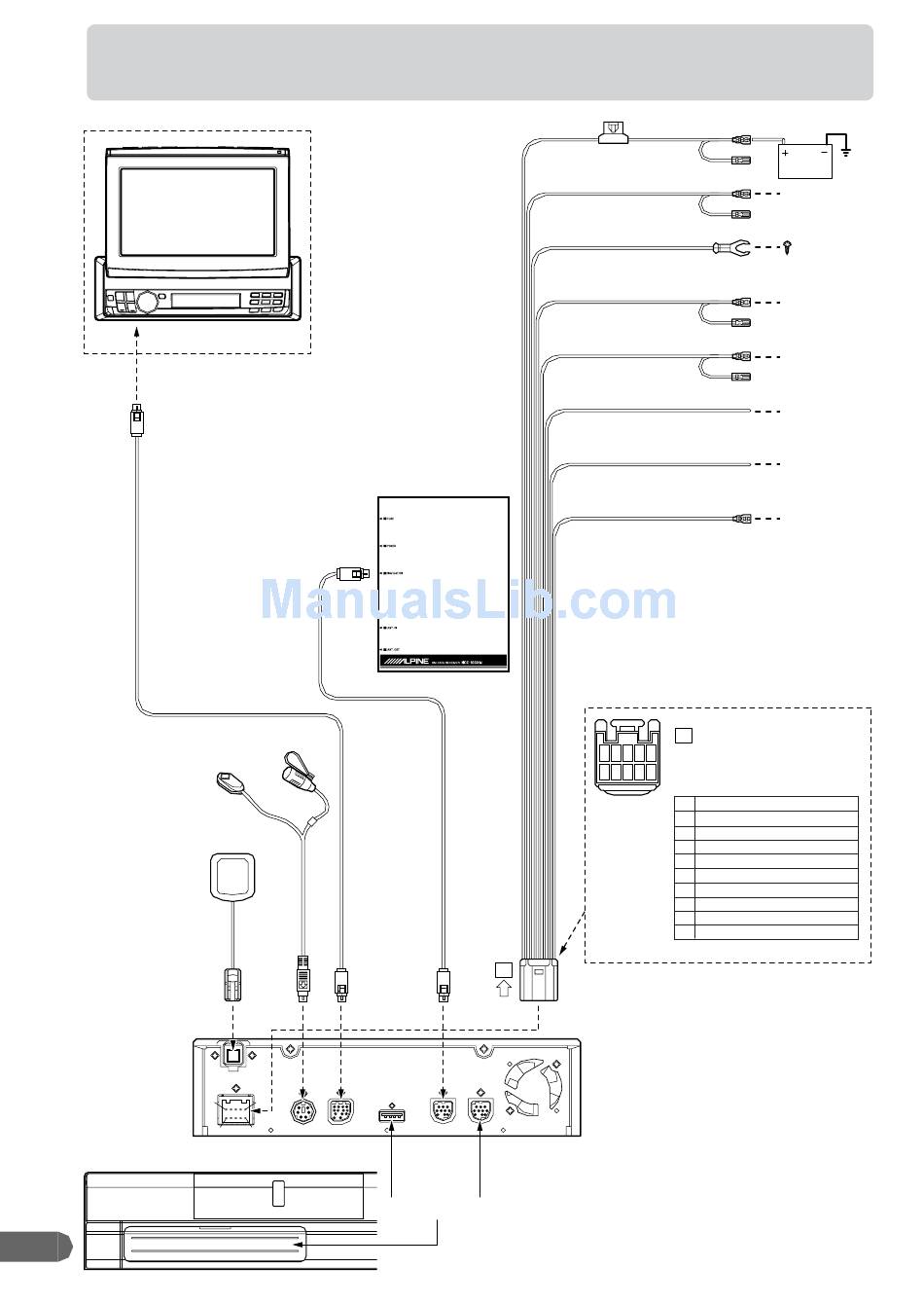

3-2. NVE-N872A Wiring Diagram With
CVA-1014/CVA-1004/CVA-1003
13P RGB Extension Cable Included
Microphone for voice recognition/
Speak button for voice recognition
(Included)
GPS Antenna (Included)
GPS
ANTENNA
10
XM Data Receiver HCE-100XM
(Sold Separately)
5 1
10 6
POWER MIC/SW DISPLAY
Connect to VSS (Digital or Analog 0V - 3V)
A
EX-3 EX-2 EX-1
Use for future system expansion
Battery Lead (Yellow)
(10A)
ACC (Ignition) (Red)
Ground (Black)
Dimmer In (Illumination) (+) (White/Blue)
Parking Brake (Yellow/Blue)
Reverse (+) (Orange/White)
Speed Sensor (Green/White)
Mute (Pink/Skyblue)
Power Connector Pin
A
Configuration
1 2 3 4 5
6 7 8 9 10
1 Ground (Black)
2 ACC (Ignition) (Red)
3 Mute (Pink/Skyblue)
4 Open
5 Open
6 Battery (Yellow)
7 Dimmer In (Illumination) (White/Blue)
8 Speed Sensor (Green/White)
9 Parking Brake (Yellow/Blue)
10 Reverse (Orange/White)
Improper connection of the
speed pulse line may cause
important safety features of the
vehicle to fail (such as the
brakes or air bags). Such
failures may result in an
accident and loss of life. We
strongly recommend that the
installation be performed by a
trained, authorized Alpine
dealer.
BATTERY
To the Acc power lead
Connect to a metal
part of chassis
body with screw
To the Illumination
signal line
To the parking brake
signal line
To reverse lights
(+12V signal)
To the vehicle speed
pulse line
Use this to connect
a device having the
IN-INT function (-)
output for Audio Mute
