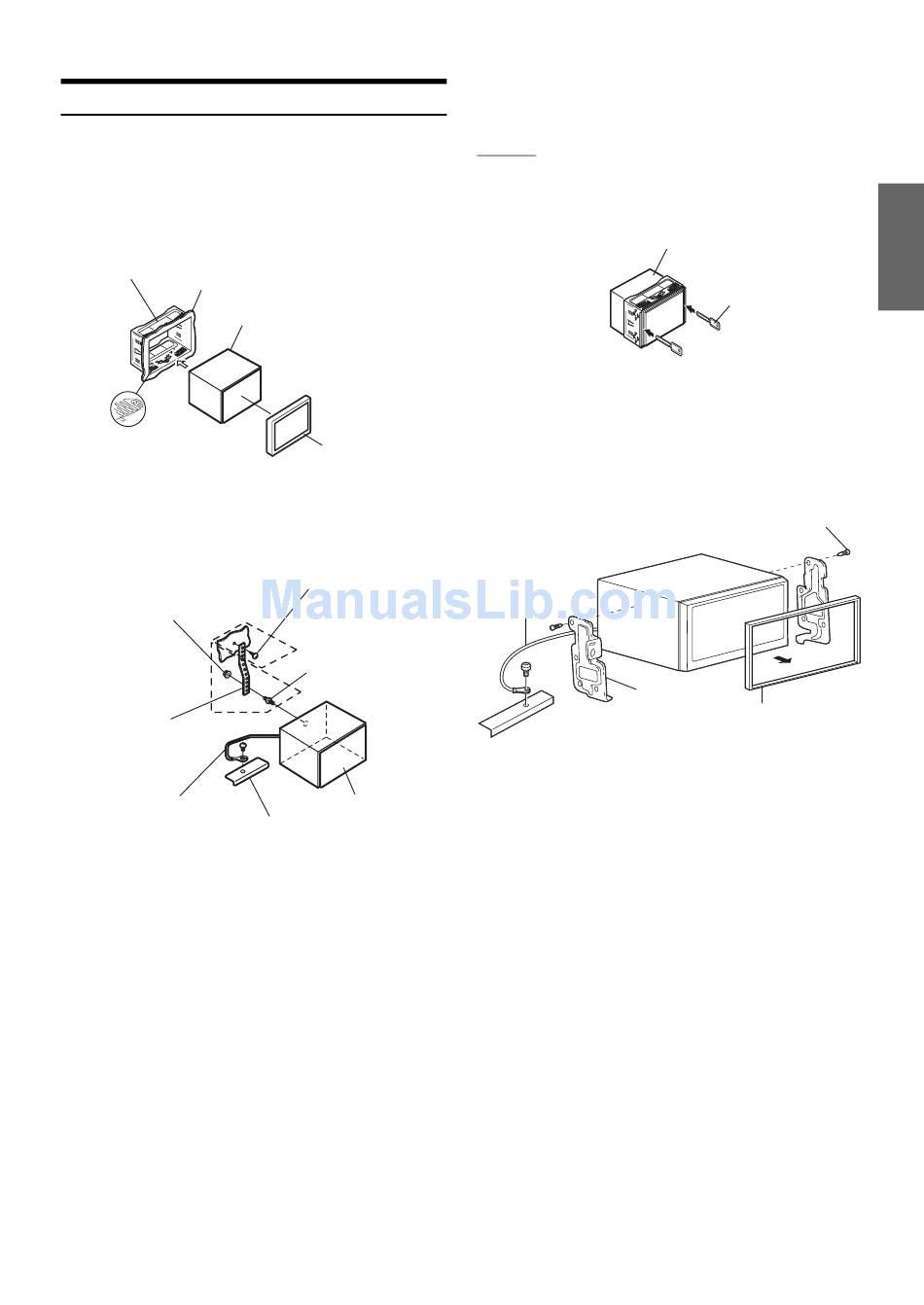

Installation

Caution concerning the installation location
1
Remove the mounting sleeve from the main unit (see
"Removal" on page 69).
Slide the unit into the mounting sleeve and secure it.
The supplied face plate may be mounted.
Mounting Sleeve (Included)
Dashboard
This unit
Pressure Plates*
* If the installed mounting sleeve is loose in the dashboard, the
pressure plates may be bent slightly to remedy the problem.
2
Hex Nut (M5)
Metal
Mounting
Strap
Ground Lead
Reinforce the head unit with the metal mounting
strap (not supplied). Secure the ground lead of the
unit to a clean metal spot using a screw (*
attached to the vehicle's chassis.
2
• For the screw marked "* ", use an appropriate screw for the chosen
mounting location.
Connect each input lead coming from an amplifier or
equalizer to the corresponding output lead coming
from the left rear of the iXA-W404. Connect all other
leads of the iXA-W404 according to details
described in the CONNECTlONS section.
Face Plate (Included)
Screw
2
*
Bolt Stud
1
*
This unit
Chassis
1
) already
3
Slide the iXA-W404 into the dashboard until it clicks.
This ensures that the unit is properly locked and will
not accidentally come out from the dashboard.
Removal
1. Insert the bracket keys into the unit, along the guides
on either side. The unit can now be removed from the
mounting sleeve.
2. Pull the unit out, keeping it unlocked as you do so.
<JAPANESE CAR>
Take the face plate off, and secure the ground lead of the unit to
a clean metal spot using a screw (*) already attached to the
car's chassis.
Attach the Original Mounting Bracket to each side of the
iXA-W404, using the screws supplied with iXA-W404.
Ground Lead
*
Mounting
Bracket
Chassis
This unit
Bracket keys
(Included)
Screws (M5 × 8) (Included)
Face Plate (Included)
69
-EN
