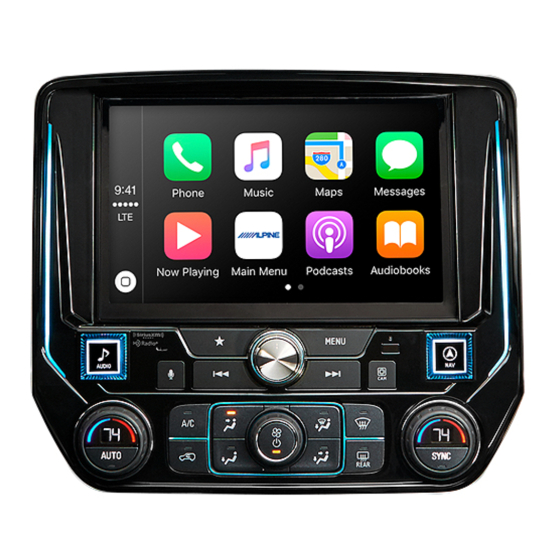

CHEVROLET/GMC
i209-GM

Installation Manual

˜ Model: Full Size Truck
˜ Model Year: 2014-2018
(BOSE® Sound System requires KCX-BOSE-GM which is sold separately)
CHEVROLET SILVERADO
GMC SIERRA
* The specified vehicles have been tested and have met compatibility specs at the time of testing. Compatibility is
not guaranteed if the manufacturer has made production changes to the listed vehicles above.
Warning: Before you begin wiring, remove the ground wire from the negative
terminal of the battery. Failing to do so could lead to electric shock, injury or
improper product operation.
Introduction
˜ Congratulations on purchasing the i209-GM. This installation manual is designed to take you through the
step-by-step installation of the i209-GM into a 2014-2018 Chevrolet Silverado / GMC Sierra. Please familiarize
yourself with the owners manual and if you still have additional questions please call 1-800-TECH-101.
Note
˜ Design and specifications are subject to change without notice for improvement.
To Ensure Safe Use, Always Follow These Precautions
˜ The installation of this product requires specialized skills and experience. We recommend that you have the
product installed by the store that you purchased it from.
˜ Before you use this product, be sure to carefully read this installation manual and the separate user's manual
so that you can use the product correctly. Alpine Electronics bears no responsibility for problems that arise as
a result of failure to follow the instructions in the manuals.
˜ This manual includes a number of symbols that are intended to help you use the product safely, to prevent
harm to you and others, and to protect against damage to property. These symbols and their meanings are
listed below. Make sure you fully understand these symbols before you begin reading the main text.
Explanations of Injury and Damage That May Result from Incorrect Use
Ignoring the content marked by this indication and using the product incorrectly is
Warning
expected to lead to death or serious injury.
Ignoring the content marked by this indication and using the product incorrectly is only
Caution
expected to lead to injury or property damage.
Model
WT, LS, LT, LT Z71, LTZ, LTZ Z71
SIERRA, SLE, SLT
Chevrolet/GMC
FULL SIZE TRUCK
Year
2014-2018
2014-2018
˜ 1/20
