CAPRI 2200 DINING TABLE

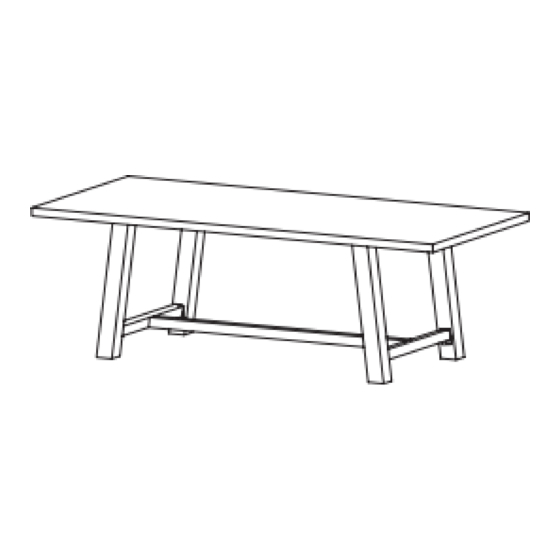

PRODUCT IMAGE
PRE-ASSEMBLY PREPARATION
BEFORE YOU START
1.Choose a clean, level, spacious assembly area.
2.Avoid hard surfaces that may damage the product.
3.Check and ensure you have all required contents for complete assembly.
4.Always read the assembly instructions carefully before beginning.
5.The packaging and contents can be a choking hazard, therefore keep out of
reach of small children at all time.
6.Do not over tighten bolts as this may damage the thread.
ALLOW 30 MINUTES
FOR ASSEMBLY
4
4 PEOPLE REQUIRED
FOR ASSEMBLY
COMPONENTS / HARDWARE
A
B
1PC
4PCS
D
E
20PCS M6*20
20PCS
G
1PC
IMPORTANT:
On initial assembly, DO NOT tighten bolts
completely until all parts are joined. Once
all parts are joined,
flip table over, ensure all legs are even.
Once even, tighten bolts.
C
1PC
F
20PCS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Target CAPRI 2200
Summary of Contents for Target CAPRI 2200
- Page 1 COMPONENTS / HARDWARE CAPRI 2200 DINING TABLE 4PCS PRODUCT IMAGE 20PCS 20PCS M6*20 20PCS PRE-ASSEMBLY PREPARATION BEFORE YOU START 1.Choose a clean, level, spacious assembly area. 2.Avoid hard surfaces that may damage the product. 3.Check and ensure you have all required contents for complete assembly.
- Page 2 STEP 2: STEP 1: PUT TOP OF TABLE(A) ON THE FLOOR,TAKE THE LEG(B) TO MATCH THE HOLE OF TAKE FIXED FRAME( C) TO MATCH THE HOLE OF LEG,USE SCREW (D) AND (E) TO TABLE, USE SCREW(D) AND (E) TO CONNECT ，DO NOT OVERTIGHTEN CONNECT,TIGHTEN ALL SCREW AND PUT ON CAP (F) STEP 3: STEP 4:...
