Summary of Contents for Vents VUT 160 PB EC

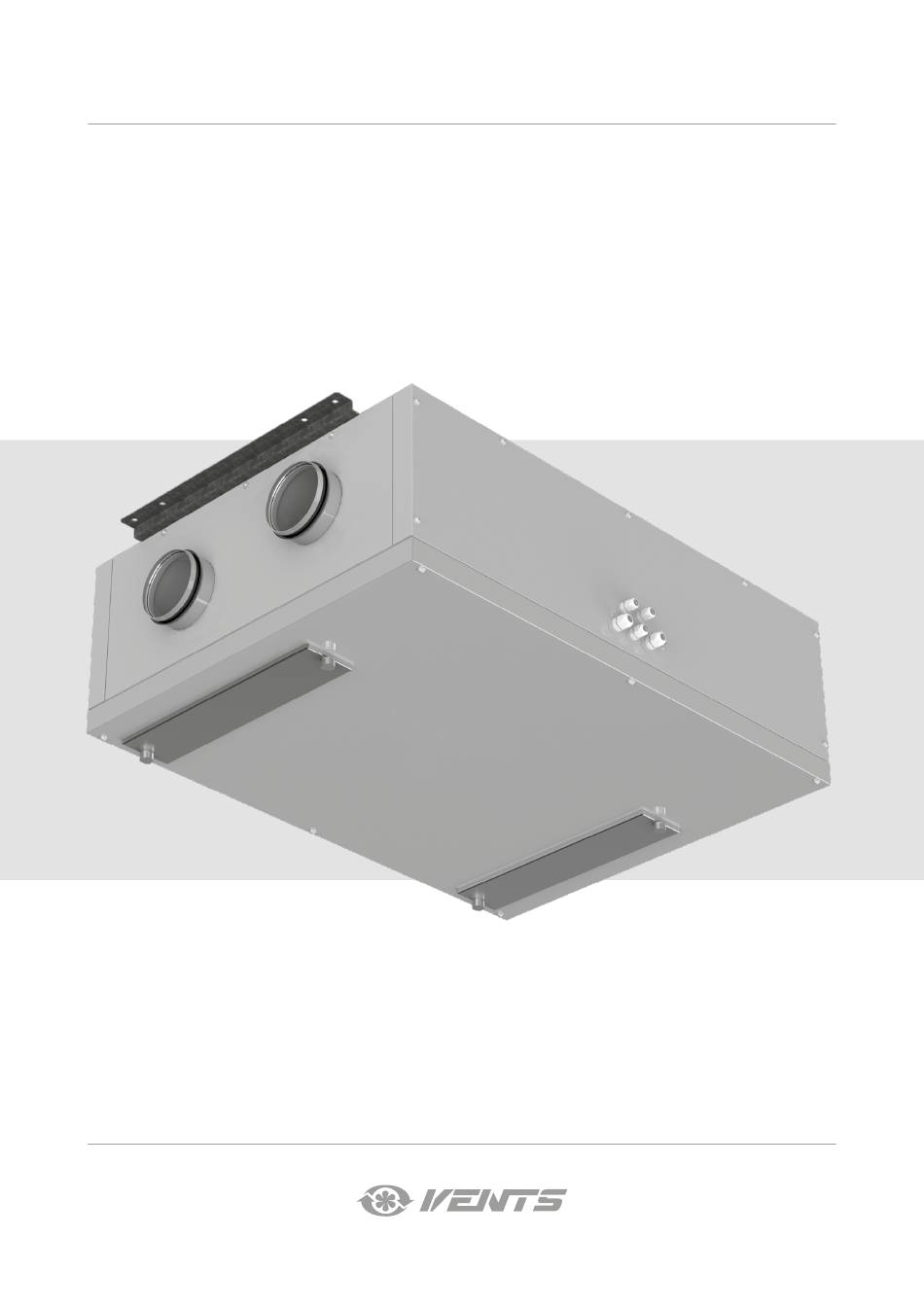

- Page 1 USER’S MANUAL VUT 160 PB EC VUT 250 PB EC VUT 350 PB EC Heat recovery air handling unit...
-
Page 2: Table Of Contents
VUT 160/250/350 PB EC CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Unit design and operating principle ..........................7 Installation and set-up................................10 Connection to power mains and unit control ......................13 Technical maintenance ................................ -
Page 3: Safety Requirements
SAFETY REQUIREMENTS • Please read the user’s manual carefully prior to installing and operating the unit. • All user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical, and technical norms and standards must be observed when installing and operating the unit. - Page 4 VUT 160/250/350 PB EC • Disconnect the unit from • Do not allow children to power mains prior to any operate the unit. technical maintenance. • When the unit generates • Do not store any explosive or unusual sounds, odour, or highly flammable substances emits smoke, disconnect it in close proximity to the unit.
-
Page 5: Purpose
PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air. -
Page 6: Technical Data
The unit design is constantly being improved, thus some models may be slightly different from those described in this manual. TECHNICAL DATA MODEL VUT 160 PB EC VUT 250 PB EC VUT 350 PB EC Supply voltage, 50 (60) Hz [V] 1~ 220 –... - Page 7 B view (outdoor connection) B view (indoor connection) Dimensions [mm] Model ØD 125 1008 1105 1073 754 VUT 160 PB EC 125 1008 1105 1073 754 VUT 250 PB EC 160 1138 1235 1203 1044 1112 680 VUT 350 PB EC www.ventilation-system.com...
-
Page 8: Unit Design And Operating Principle
VUT 160/250/350 PB EC UNIT DESIGN AND OPERATING PRINCIPLE The unit has the following operating logic: warm stale extract air from the room flows into the unit, where it is filtered by the extract filter, then air flows through the heat exchanger and is exhausted outside by the extract fan. Cold fresh air from the outside flows into the unit, where it is cleaned by the supply filter. - Page 9 Compatibility table of optional equipment and unit models VUT 160/250/350 PB EC A11 — — — — — — — — VUT 160/250/350 PB EC A14 — — — — — — VUT 160/250/350 PB EC A21 — RIGHT-HANDED AND LEFT-HANDED MODIFICATIONS The figure below shows the arrangement of spigots for left- and right-handed modifications.
- Page 10 VUT 160/250/350 PB EC UNIT OPERATION MODES Heat recovery mode: warm stale extract air from the room flows into the unit, where it is filtered by the extract filter, then air flows through the heat exchanger and is exhausted outside by the extract fan. Cold fresh air from the outside flows into the unit, where it is cleaned by the supply filter.
- Page 11 Summer Cooling mode: the bypass damper is opened, the intake air that is supplied to the premises bypasses the heat exchanger. The intake air temperature remains constant. EXHAUST AIR SUPPLY AIR INTAKE AIR EXTRACT AIR www.ventilation-system.com...
-
Page 12: Installation And Set-Up
VUT 160/250/350 PB EC INSTALLATION AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. HUMIDITY SENSOR MOUNTING Remove the service panel and install the humidity sensor into the mount from the side of the extract air duct and connect the humidity sensor connector to the respective contact socket coming from the control unit. - Page 13 UNIT INSTALLATION To attain the best performance of the unit and to minimise turbulence-induced air pressure losses connect the straight air duct section to the spigots on both sides of the unit while mounting. Minimum straight air duct length: • equal to 1 air duct diameter on the intake side •...
- Page 14 VUT 160/250/350 PB EC Sewage system Drain pipe Drain hose Drain hose U-trap min 3° min 3° The condensate drainage system is designed for normal operation in premises with air temperatures above 0 °C! If the expected ambient air temperatures are below 0 °C, the condensate drainage system must be equipped with heat insulation and pre-heating facilities.
- Page 15 CONNECTION TO POWER MAINS DISCONNECT THE UNIT FROM POWER MAINS PRIOR TO ANY OPERATIONS. THE UNIT MUST BE CONNECTED TO POWER MAINS BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. ANY TAMPERING WITH THE INTERNAL CONNECTIONS IS PROHIBITED AND WILL VOID THE WARRANTY.
- Page 16 VUT 160/250/350 PB EC External wiring diagram for VUT 160/250/350 PB EC A14 units The unit has an option of additional external controls connection to the X2 terminal block, which is located on the hinged electrical mounting plate of the control unit. Extra connections to the unit are shown in dotted lines in the External wiring diagram. PK fire alarm panel Humidity sensor (remove the jumper while connecting the contact)
-
Page 17: Technical Maintenance
TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! Maintenance operations of the unit are required 3-4 times per year. Maintenance includes general cleaning of the unit and the following operations: 1. Filter maintenance (3-4 times per year). Dirty filters increase air resistance in the system and reduce supply air volume. - Page 18 VUT 160/250/350 PB EC 3. Fan maintenance (once per year). Even in case of regular maintenance of the filters, some dust may accumulate inside the fans and reduce the fan performance and supply air flow. Clean the fans with a soft brush or cloth. Do not use water, aggressive solvents, or sharp objects as they may damage the impeller. 4.
-
Page 19: Storage And Transportation Regulations
STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5 ˚С to +40 ˚С and relative humidity up to 70 %. • Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing deformation. -
Page 20: Manufacturer's Warranty
VUT 160/250/350 PB EC MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. - Page 21 www.ventilation-system.com...
- Page 22 VUT 160/250/350 PB EC www.ventilation-system.com...
-
Page 23: Certificate Of Acceptance
CERTIFICATE OF ACCEPTANCE Unit Type Heat recovery air handling unit Model VUT ______ PB EC __ A___ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 24 V108EN-04...
