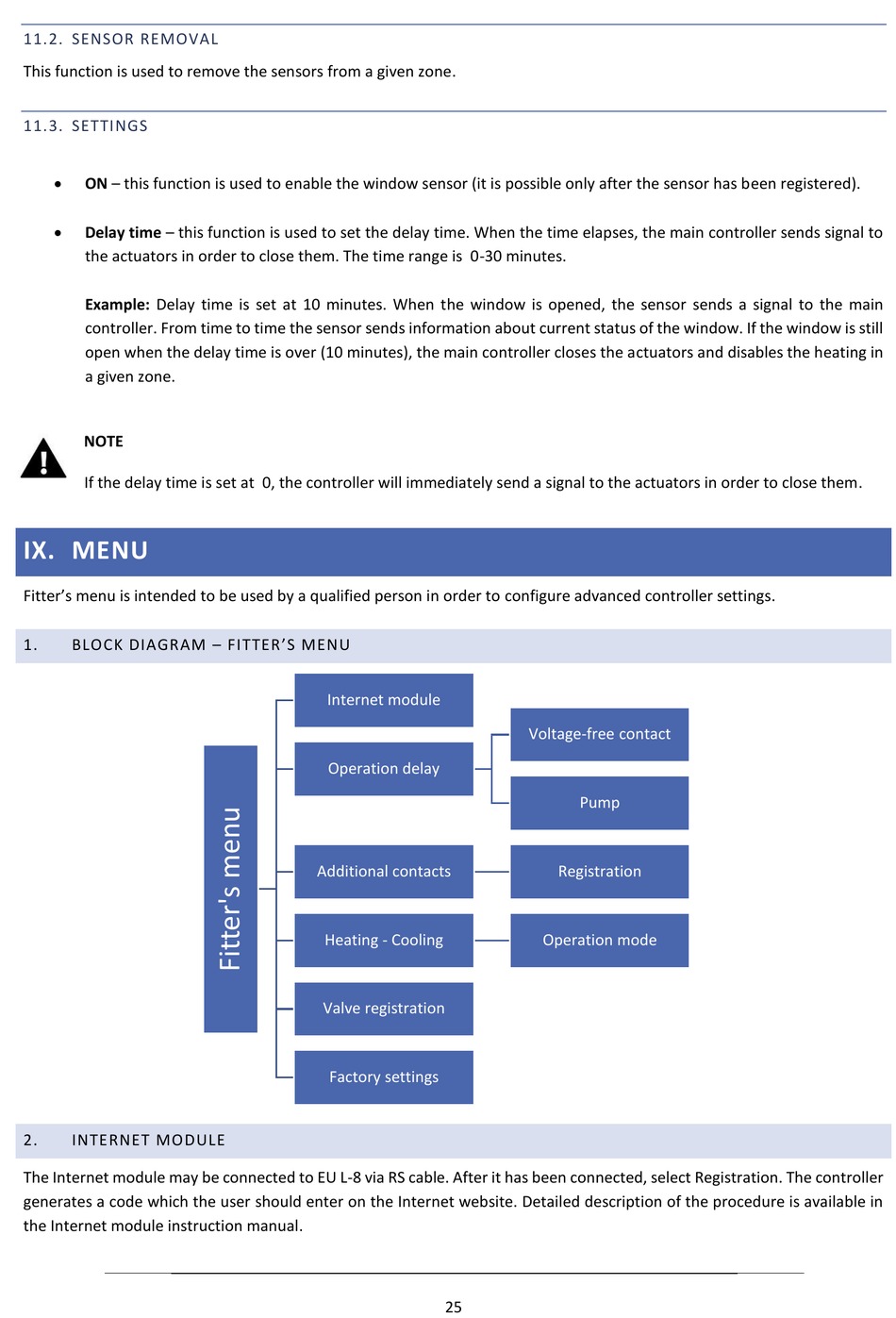

11.2. SENSOR REMOVAL

This function is used to remove the sensors from a given zone.

11.3. SETTINGS


ON – this function is used to enable the window sensor (it is possible only after the sensor has been registered).

Delay time – this function is used to set the delay time. When the time elapses, the main controller sends signal to
the actuators in order to close them. The time range is 0-30 minutes.
Example: Delay time is set at 10 minutes. When the window is opened, the sensor sends a signal to the main
controller. From time to time the sensor sends information about current status of the window. If the window is still
open when the delay time is over (10 minutes), the main controller closes the actuators and disables the heating in
a given zone.
NOTE
If the delay time is set at 0, the controller will immediately send a signal to the actuators in order to close them.
IX. MENU
Fitter's menu is intended to be used by a qualified person in order to configure advanced controller settings.
1. BLOCK DIAGRAM – FITTER'S MENU
2.

INTERNET MODULE

The Internet module may be connected to EU L-8 via RS cable. After it has been connected, select Registration. The controller
generates a code which the user should enter on the Internet website. Detailed description of the procedure is available in
the Internet module instruction manual.
Internet module
Operation delay
Additional contacts
Heating - Cooling
Valve registration
Factory settings
25
Voltage-free contact
Pump
Registration
Operation mode
