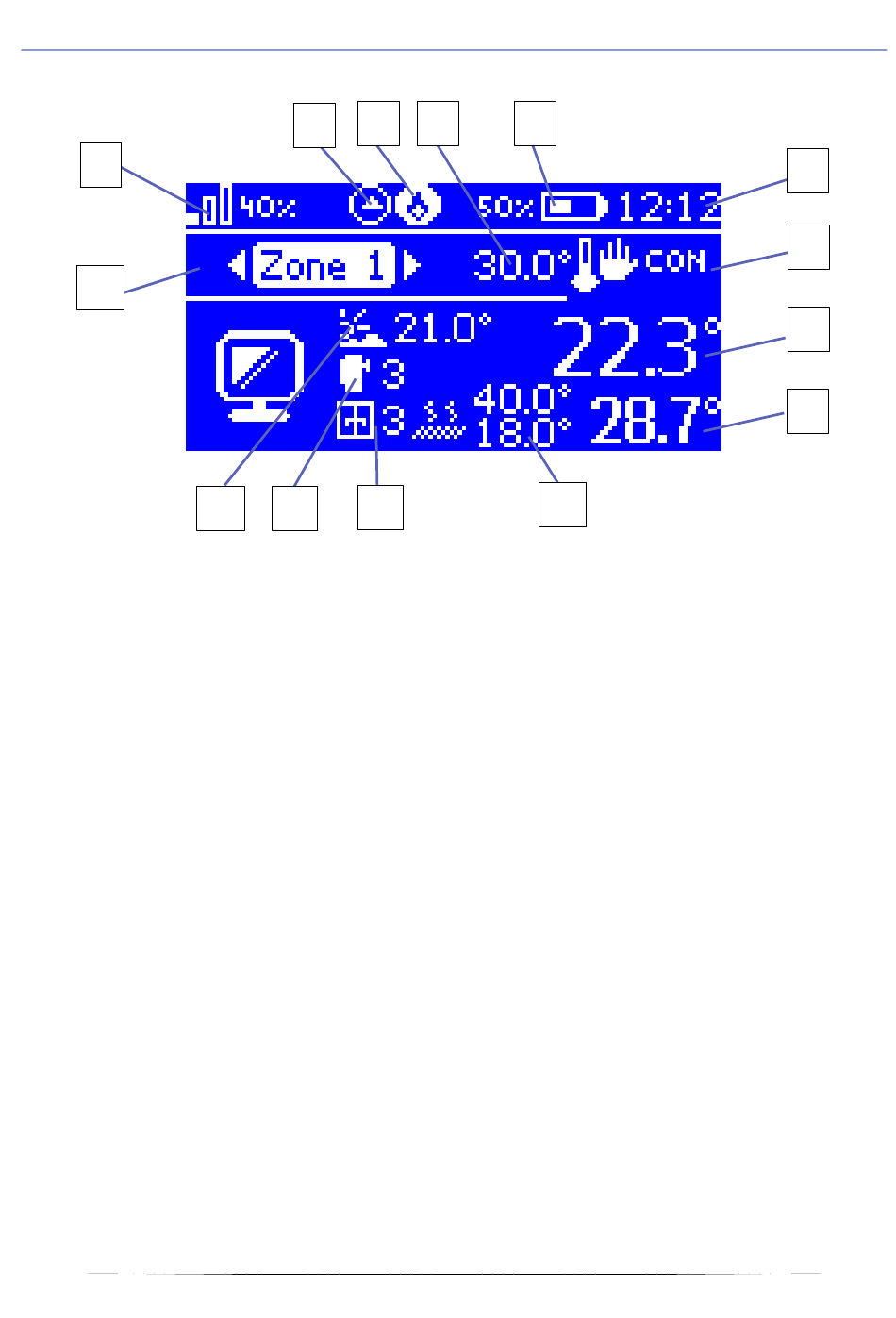

ZONE SCREEN
1
14
1. C-8r sensor signals strength in a given zone
2. Pump ON
3. Voltage-free contact ON
4. Pre-set temperature in a given zone
5. C-8r sensor battery level in a given zone
6. Current time
7. Current weekly schedule
8. Current room temperature in a given zone
9. Current floor temperature in a given zone
10. Maximum and minimum floor temperature
11. The numer of registered window sensors (C-2) in a given zone
12. The numer of registered thermostatic actuators (STT-868 or STT-869) in a given zone
13. External temperature
14. Zone name
