Summary of Contents for TECH WiFi RS

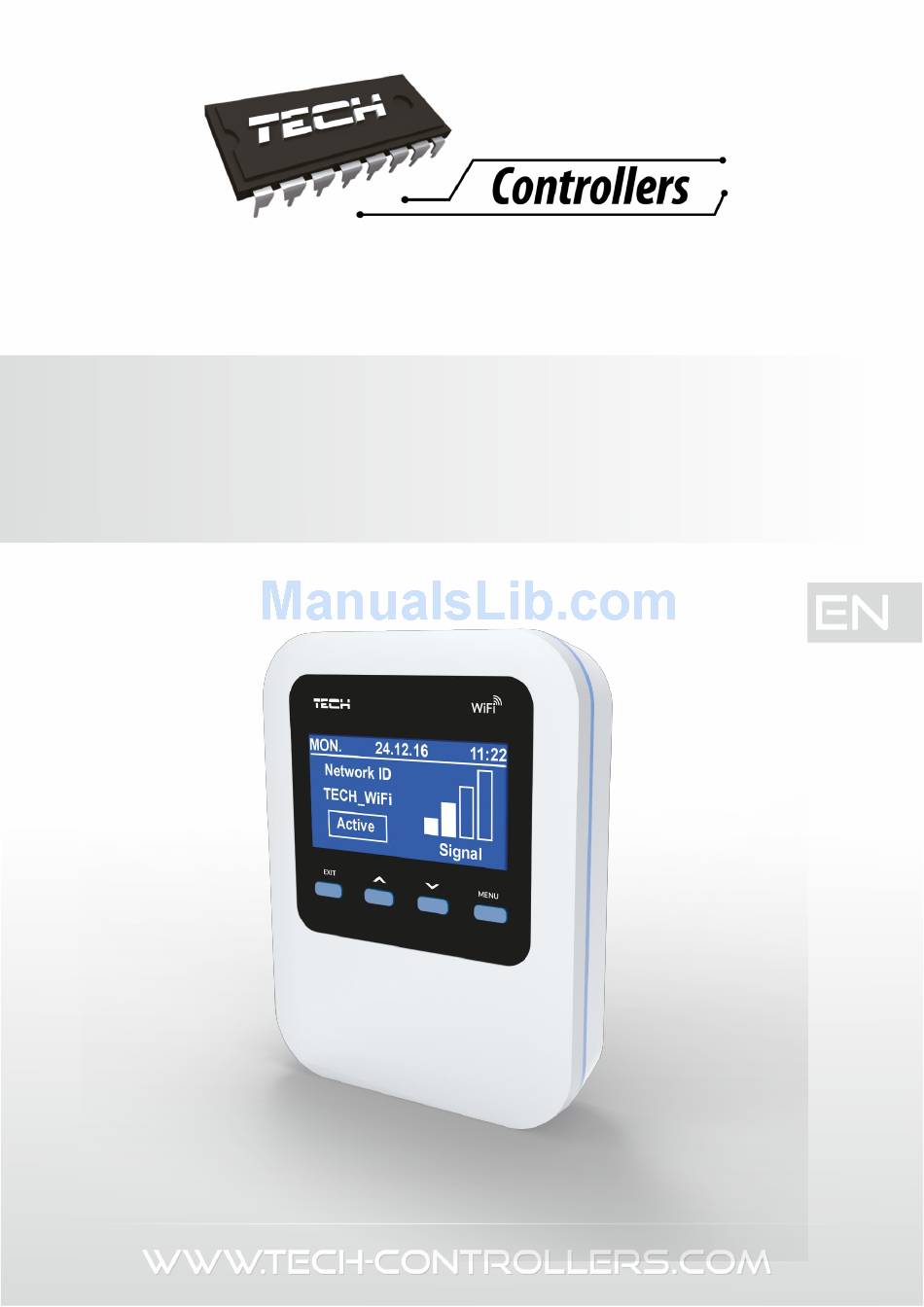

  • Page 1 User’s manual WiFi RS...

  • Page 2: Table Of Contents

    User’s manual Safety Description III. Module installation First start-up IV. How to configure the module (for the latest controller versions) IV.a) How to log in to the website IV.b) Home page IV.c) How to adjust the main controller operation parameters IV.d) Statistics How to configure the module (for older controller versions IV.a) How to log in to the module (local network)
  • Page 3 WIFIRS Declaration of conformity No 188/2015 The company TECH, based in Wieprz (34-122) at ul. Biała Droga 31, declares with complete liability that our Internet module ST-507 meets the requirements of the following EC directives:  R&TTE Directive 1999/5/EC;  Low Voltage Directive (LVD) 2006/95/EC;...

  • Page 4: Safety

    User’s manual Safety Before using the device for the first time, the user should read the following regulations carefully. Not obeying the rules included in this manual may lead to personal injuries and device damage. The user's manual should be stored in a safe place for further reference. In order to avoid unnecessary errors and accidents it should be ensured that every person using the device has familiarized themselves with the principle of its operation as well as its security functions.

  • Page 5: Ii. Description

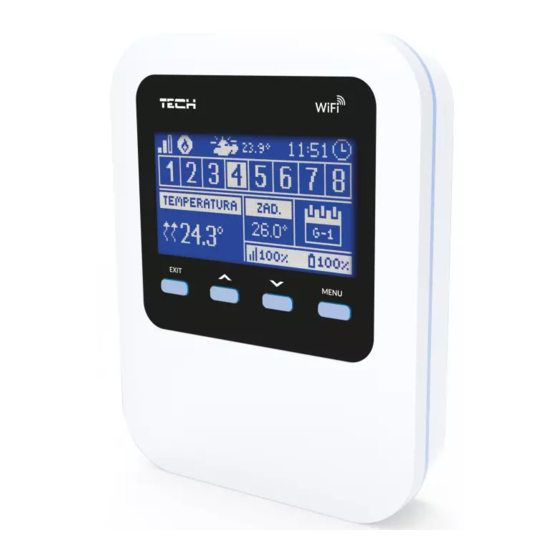

    WIFIRS II. Description WIFI is a controller and an Internet module in one device. WiFi Internet module a device which enables the user remote control of the CH boiler via the Internet. The user controls the status of all CH boiler system devices and may view the controller alarm log as well as the temperature log in a form of clear charts.

  • Page 6: Module Installation

    User’s manual III. Module installation The module should be installed by a qualified person. WARNING Incorrect connection of the wires may damage the module! STICK First start-up In order for the controller to operate correctly, the user must follow these steps when starting the device for the first time: 1.

  • Page 7: How To Configure The Module (For The Latest Controller Versions)

    WIFIRS V. How to configure the module (for the latest controller versions) Connecting the module with the controller In the case of using the controller with the latest software version (controllers for pellet-fired CH boilers, with a colour display) the installation process in intuitive. After the module has been properly connected, activate the module in the Fitter’s menu of the main controller (Menu >>...

  • Page 8: Iv.b) Home Page

    User’s manual V.b) Home page Home tab displays the main screen with tiles illustrating the current status of particular heating system devices. Tap on the tile to adjust the operation parameters. Screenshot presenting an example Home page The user may customize the home page by changing the layout of the tiles or deleting some of them. In order to introduce changes, go to Settings tab.

  • Page 9: Iv.c) How To Adjust The Main Controller Operation Parameters

    WIFIRS V.c) How to adjust the main controller operation parameters The following tabs include main controller parameters. The menu structure is the same as the structure of the main controller menu. Screenshot presenting an example tab with main menu parameters...

  • Page 10: Iv.d) Statistics

    User’s manual V.d) Statistics Statistics tab enables the user to view the temperature values for different time periods e.g. 24h, a week or a month. It is also possible to view the statistics for the previous months: Screenshot presenting an example temperature chart Screenshot presenting an example setting change...

  • Page 11: How To Configure The Module

    Connecting the module with the controller ST-505 module cooperates with TECH controllers with RS communication and compatible software. After the module has been properly connected, activate the Internet module in the Fitter’s menu of the main controller (Menu >> Fitter’s menu >> Internet module >> ON) and confirm >> IP Address. After a while the IP address of the module will be displayed (e.g.

  • Page 12: Iv.c) How To Log In To The Module (External Website)

    User’s manual Confirm by tapping on Change – the following message will appear: How to register at the website. To use the module it is necessary to configure the access to the external website. In order to do it, fill in the spaces: Identifier/Login and Password.
  • Page 13 WIFIRS After a while the module screen will appear.

  • Page 14: Iv.d) Manual Module Configuration

    User’s manual NOTE! In some cases Internet Explorer does not permit to activate ActiveX formats and scripts which are necessary to display module data. It is advisable to activate this option by right-clicking on ‘Allow blocked content’ on the notification bar VI.d) Manual module configuration One way of establishing controller connection with the local network is to configure the access parameters manually.

  • Page 15: How To Configure The Controller

    WIFIRS Enter ipconfig and press Enter. 4. In most cases DNS address is the same as Gate address. In order to check, enter ipconfig/all. How to configure the controller After noting down all necessary parameters, go to controller settings. Go to the Internet module settings...
  • Page 16 User’s manual in the CH boiler controller (Menu>> Fitter’s menu>>Internet module). DHCP parameter (ang.Dynamic Host Configuration Protocol ) must be disabled. IP address should be set as unique for the network by changing the IP digits freely e.g. 192.168.1.200. If necessary, the user may check it the IP address has not been already taken by entering the command: ping 192.168.1.200 in cmd.exe.

  • Page 17: Controller Menu

    WIFIRS VII. Controller menu VII.a) Block diagram of the controller menu: DHCP IP address Wi-Fi network Subnet mask Network configuration Gate address Registration DNS address Reset module password MAC address Summer time Time settings Time zone Screen view Wi-Fi Display contrast Screen settings Screen brightness Language...

  • Page 18: Vii.b) Wi-Fi Network

    User’s manual VII.b) Wi-Fi network This submenu includes a list of available networks. Select one and press MENU. If the network is secured, it is necessary to enter the password. Use + and – buttons to enter the letters of the password. VII.c) Network configuration Standard network configuration is performed automatically.

  • Page 19: Viii. Technical Data

    WIFIRS VIII. Technical data Specification Supply voltage 5V DC Maximum power consumption 200 mA Transmission IEEE 802.3 10 Mb/s Network connection RJ 45 connector Connection with the controller RJ12 connector...
  • Page 20 User’s manual...
