Summary of Contents for TECH EU-RI-1

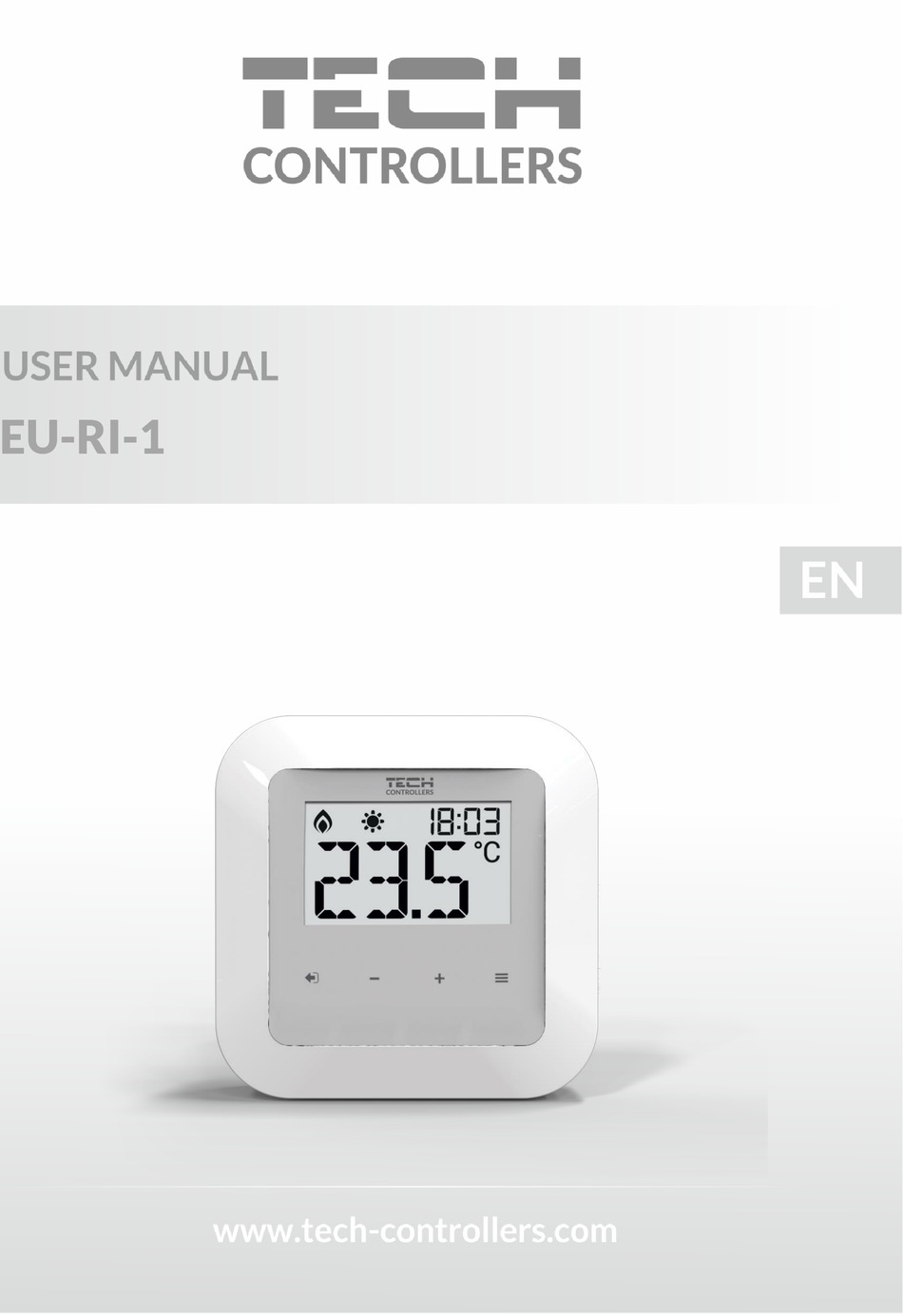

  • Page 1 TECH EU-RI-1...

  • Page 2: Table Of Contents

    TECH TABLE OF CONTENTS Safety ..................................3 Device description ..............................4 iii. Installation ................................. 4 How to use the regulator ............................7 Principle of operation .............................. 7 Operation modes ..............................7 Main screen decription .............................. 7 Regulator funktions – menu 1 ........................... 9 Block diagram - regulator menu ..........................

  • Page 3: Safety

    TECH SAFETY Before using the device for the first time the user should read the following regulations carefully. Not obeying the rules included in this manual may lead to personal injuries or controller damage. The user’s manual should be stored in a safe place for further reference.

  • Page 4: Device Description

    DEVICE DESCRIPTION The EU-RI-1 room regulator is intended to be used with the EU-I-2, EU-I-2 Plus, EU-I-3 and EU-I-3Plus controllers. Its main task is to maintain the pre-set room/floor temperature by sending a signal to the main controller, when the room or floor temperature is lower than the pre-set value.
  • Page 5 TECH The room regulator should be connected to the heating device with the use of a four-core cable (included sample RS cable forged on one side). The wiring diagram is presented below:...
  • Page 6 TECH Pictorial diagram showing how to connect the EU-RI-1 to other devices in the system. 1. The EU-I-3Plus main controller 2. EU-WiFi RS Internet module 3. EU-505 Internet module 4. EU-294 Room regulator 5. EU-RI-1 Room regulator 6. EU-292 Room regulator 7.

  • Page 7: How To Use The Regulator

    PRINCIPLE OF OPERATI ON The main function of the EU-RI-1 room regulator is to maintain the pre-set room/floor temperature by sending a signal to the EU-I-2, EU-I-2 Plus, EU-I-3 or EU-I-3Plus controller, when the room or floor temperature is lower than the pre-set value.

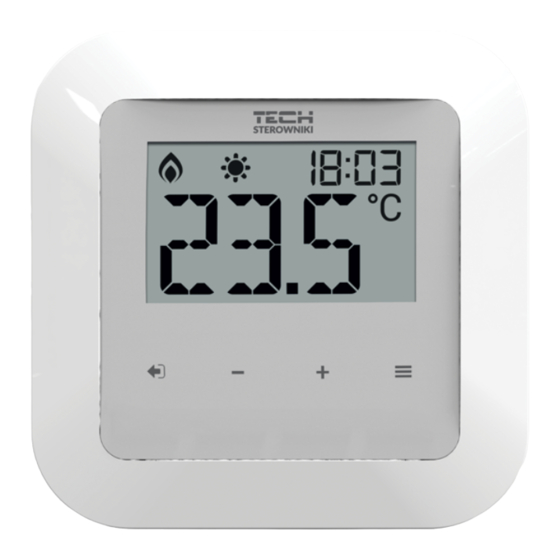

  • Page 8 TECH 1. Display 2. EXIT button – the button is used to return to the main screen view. In the main screen view, press this button to display the temperature value read from the built-in room sensor, the floor temperature value.

  • Page 9: Regulator Funktions - Menu 1

    CLOCK SETTINGS After registering the device, the time is updated from the controller (EU-I-2, EU-I-2 Plus, EU-I-3, EU-I-3Plus) to EU-RI-1. By default, TIM is set to OFF. With the PLUS button you can set TIM to ON and set the time on the regulator. In this case, the time from the controller will not be taken into account.

  • Page 10: Constant Mode

    TECH CONSTANT MODE Constant mode allows the user to set the desired temperature permanently. Activating this mode deactivates the day / night mode. In order to do this, press the MENU button until the constant mode screen appears. Use the PLUS or MINUS buttons to select ON and confirm by pressing the MENU button.

  • Page 11: Night From

    TECH NIGHT FROM… The Night from... function defines the exact time when the nighttime starts. In order to set this parameter, press MENU button until the nighttime setting screen appears. Use PLUS and MINUS to set the hour and minute of night mode activation. Confirm by pressing MENU button (confirm and move on to edit the next parameter) or EXIT button (confirm and return to the main screen view).

  • Page 12: Underfloor Heating Hysteresis

    TECH UNDERFLOOR HEATING H YSTERESIS Underfloor heating hysteresis defines the tolerance for the maximum and minimum temperature. The settings range is 0,2°C to 5 °C. If the floor temperature exceeds the maximum temperature, the underfloor heating will be disabled. It will be enabled only after the temperature has dropped below the maximum floor temperature minus hysteresis value.

  • Page 13: Button Lock

    TECH BUTTON LOCK The LOC function is used to lock the buttons. It may be enabled (ON) or disabled (OFF) with the use of PLUS/MINUS buttons. The lock is activated after the main screen blanking. Hold the PLUS and MINUS buttons for about 3 seconds to deactivate the lock.

  • Page 14: Software Version

    TECH SOFTWARE VERSION Hold the MENU button to enter the second Menu. Next, keep pressing the MENU button until the software version screen appears. The user may check the software version number (VER). The number is necessary while contacting the service staff.
  • Page 15 TECH EU Declaration of conformity Hereby, we declare under our sole responsibility that EU-RI-1 manufactured by TECH STEROWNIKI, head- quartered in Wieprz Biała Droga 31, 34-122 Wieprz, is compliant with Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits (EU OJ L 96, of 29.03.2014, p.
  • Page 16 TECH...
