SENSORS SCREEN

1

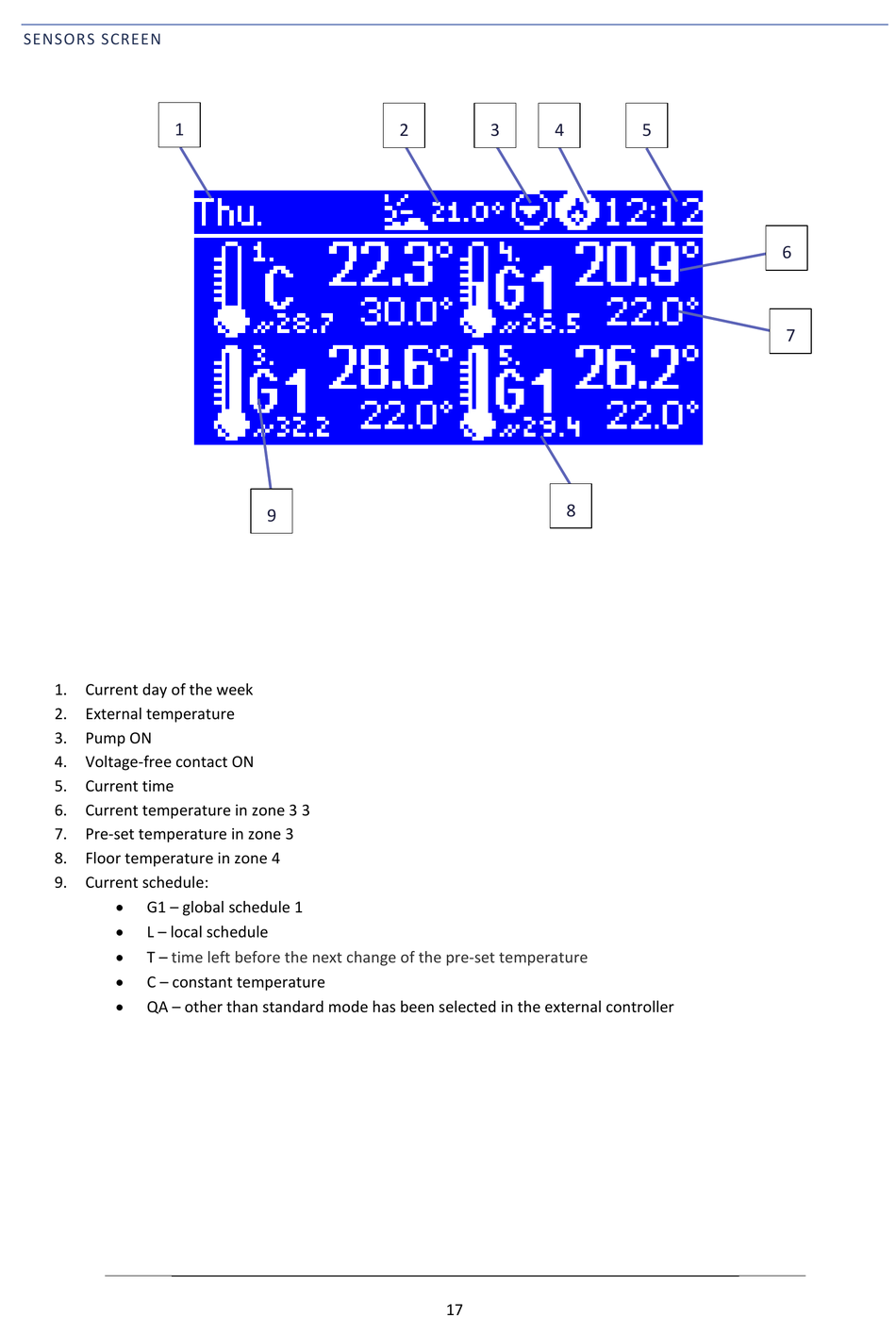

1. Current day of the week
2. External temperature
3. Pump ON
4. Voltage-free contact ON
5. Current time
6. Current temperature in zone 3 3
7. Pre-set temperature in zone 3
8. Floor temperature in zone 4
9. Current schedule:

G1 – global schedule 1

L – local schedule

T – time left before the next change of the pre-set temperature

C – constant temperature

QA – other than standard mode has been selected in the external controller
2
9
3 4
8
17
5
6
7
