Allied Telesis AT-MC13 Specifications

Datasheet | Media Converters
MC1x Series
Ethernet Media Converters
AT -MC13
UTP to fiber ST Ethernet media converter
AT -MC14
UTP to fiber SC Ethernet media converter
AT -MC15
UTP to BNC Ethernet media converter

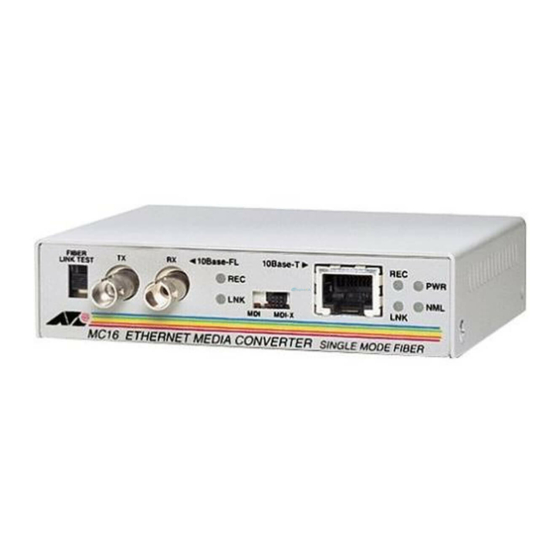

AT -MC16
UTP to fiber ST single-mode Ethernet media
converter
Fiber Connections
The Allied Telesis range of Ethernet media
converters provides a complete family of
conversion devices, allowing users to extend the
size of UTP networks with the use of fiber
cabling. Supporting all major fiber connectors,
with support for both multi and single-mode
fiber, these converters can be used to extend
networks with up to 15km of fiber.
Auto-Negotiation and MissingLink™
When connecting media converters to auto-
negotiating Fast Ethernet switches, these media
converters (except the AT-MC13 and AT-MC14)
will automatically connect the link in either
Ethernet full or half-duplex mode, allowing the
link to be established with the greatest
bandwidth. In addition, the MissingLink
(except AT-MC15) allows switches or hubs with
redundant link capability to be inter-connected
with these media converters, as a failure in one
fiber link will be signalled to the switch, allowing
the second link to become active.
Allied Telesis
Simple Installation
All the media converters with a UTP
connection feature an internal MDI/MDI-X
switch, allowing the converter to be connected
to either a PC, hub or switch, with a simple UTP
cable.The media converters also allow the
installer to test the integrity of the fiber
connection, by forcing the converters to
communicate over the fiber cable.This 'Link Test'
feature allows installers to check for cable faults
without the need for expensive fiber optic test
equipment.
Standalone or Rack-mounted
Each small media converter is powered by an
external power supply unit for use in standalone
applications. Where multiple media converters
are being used, up to 12 standalone devices can
be inserted into a low-cost rack-mount chassis,
allowing all the converters to be powered by a
single internal power supply. In critical
applications, a second load sharing internal
power supply can be installed into the rack-
mount chassis.
TM feature
Key Features
• Half and full-duplex operation
(excluding AT-MC15, half-duplex only)
• Rack-mountable using optional AT-MCR12,
AT-TRAY4 or AT-TRAY1 chassis
• MDI/MDI-X
• MissingLink™ (excluding AT-MC15, N/A)
• Link Test (excluding AT-MC15, N/A)
www.alliedtelesis.com
