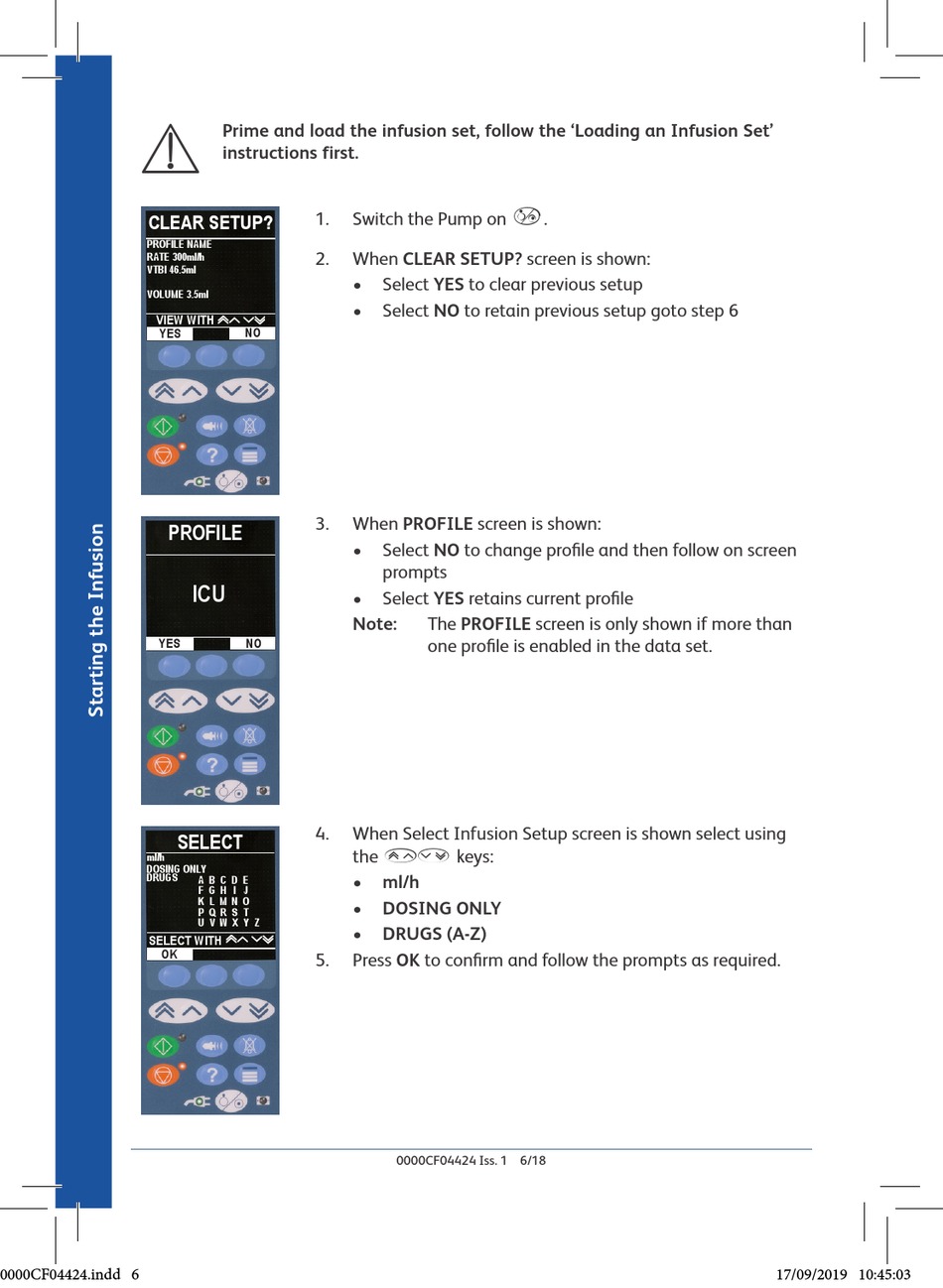

BD Alaris VP Plus Guardrails Quick Reference Manual page 6


CLEAR SETUP?
PROFILE NAME
RATE 300ml/h
VTBI 46.5ml
VOLUME 3.5ml
VIEW WITH
YES
PROFILE
YES
SELECT
ml/h
DOSING ONLY
DRUGS
SELECT WITH
OK
0000CF04424.indd 6
Prime and load the infusion set, follow the 'Loading an Infusion Set'
instructions first.
1. Switch the Pump on
2. When CLEAR SETUP? screen is shown:
•
•
NO
3. When PROFILE screen is shown:
•
ICU
•
Note:
NO
4. When Select Infusion Setup screen is shown select using
the f keys:
•
A B C D E
F G H I J
K L M N O
•
P Q R S T
U V W X Y Z
•
5. Press OK to confirm and follow the prompts as required.
.
a
Select YES to clear previous setup
Select NO to retain previous setup goto step 6
Select NO to change profile and then follow on screen
prompts
Select YES retains current profile
The PROFILE screen is only shown if more than
one profile is enabled in the data set.
ml/h
DOSING ONLY
DRUGS (A-Z)
0000CF04424 Iss. 1 6/18
