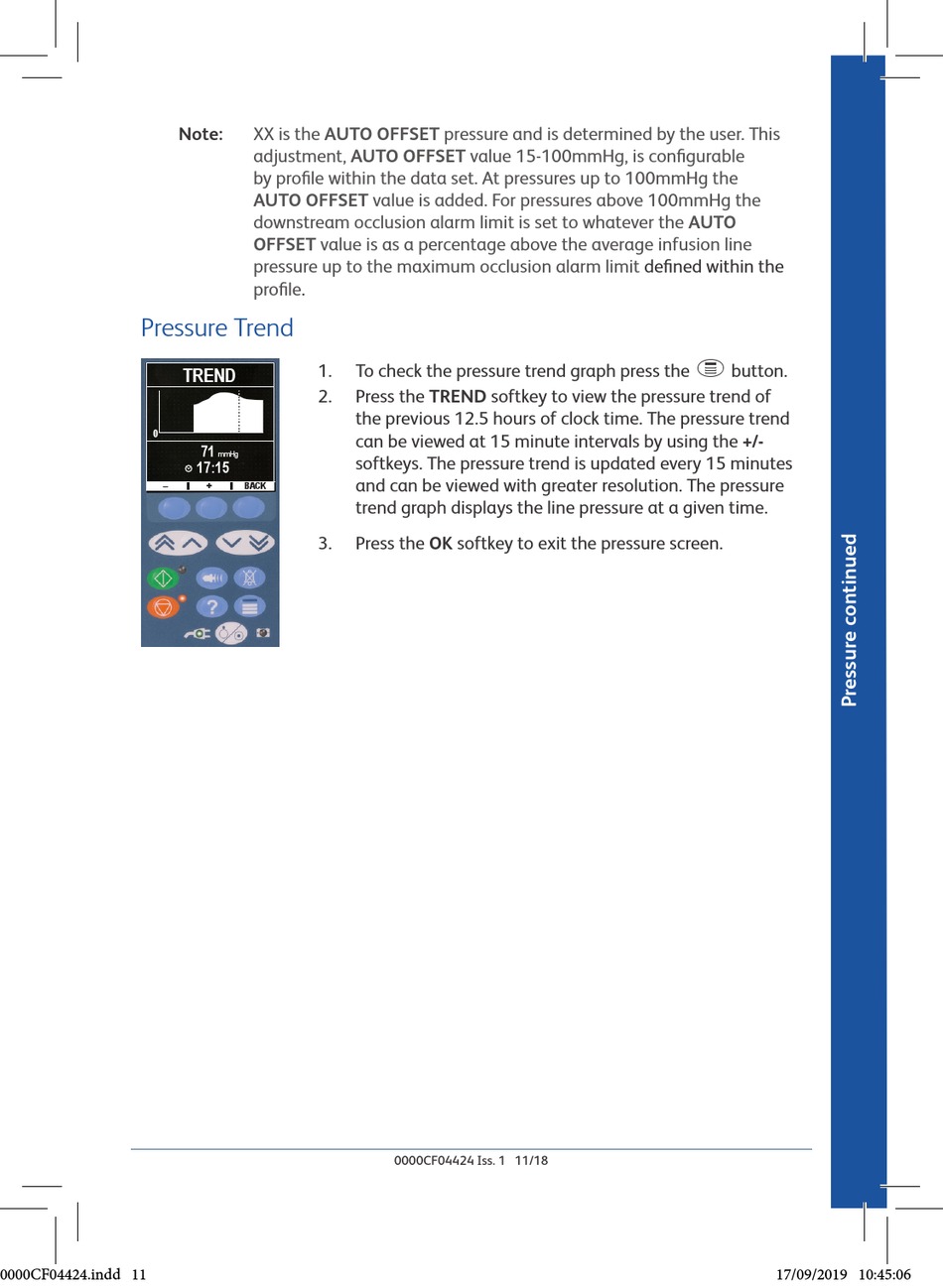

Pressure Trend - BD Alaris VP Plus Guardrails Quick Reference Manual

Note:

Pressure Trend

0
–
0000CF04424.indd 11
XX is the AUTO OFFSET pressure and is determined by the user. This
adjustment, AUTO OFFSET value 15-100mmHg, is configurable
by profile within the data set. At pressures up to 100mmHg the
AUTO OFFSET value is added. For pressures above 100mmHg the
downstream occlusion alarm limit is set to whatever the AUTO
OFFSET value is as a percentage above the average infusion line
pressure up to the maximum occlusion alarm limit
profile.
1. To check the pressure trend graph press the
TREND
2. Press the TREND softkey to view the pressure trend of
the previous 12.5 hours of clock time. The pressure trend
can be viewed at 15 minute intervals by using the +/-
71
mmHg
softkeys. The pressure trend is updated every 15 minutes
17:15
and can be viewed with greater resolution. The pressure
+ BACK
trend graph displays the line pressure at a given time.
3. Press the OK softkey to exit the pressure screen.
0000CF04424 Iss. 1 11/18
defined within the
button.
