Advantech PCA-6029 Startup Manual

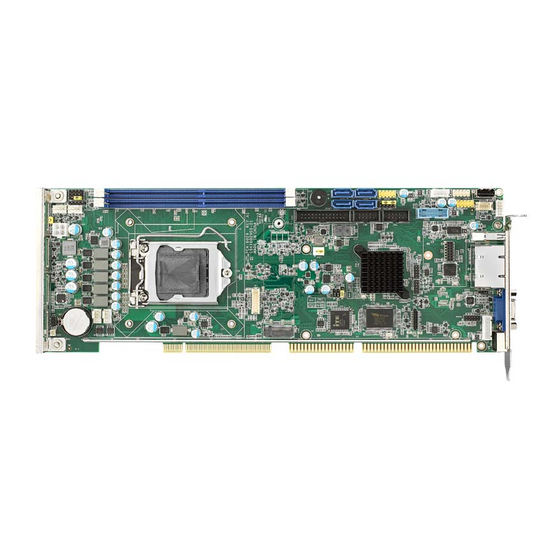

PCA-6029 LGA1151 6th and 7th Gen. Intel
i7/i5/i3/Pentium™/Celeron™ System Host Board with
VGA/DVI/DP and Dual GbE LAN
Startup Manual
Packing List
Before you begin installing your card, please make sure the
following items have been shipped:
1. PCA-6029 PICMG 1.0 Single Board Computer
2. 1x PCA-6029 startup manual
3. 2x Serial ATA HDD data cables
4. 1x COM + printer ports cable kit P/N: 1701260305
5. 1x 4-port USB cable kit
6. 1x Keyboard and mouse Y cable P/N: 1700060202
7. 1x Warranty card
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note 1: Acrobat Reader is required to view PDF files. Ac-
robat Reader can be downloaded at: get.adobe.
com/reader (Acrobat is a trademark of Adobe)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
https://advt.ch/PCA-6029
This manual is for the PCA-6029 Series Rev. A1.
Part No. 2041602900
Printed in China
P/N: 2041602900
P/N: 1700003194
P/N: 1700008461-11
P/N: 2190000902
1st Edition
November 2020
Specifications
General
• CPU: LGA1151 6 and 7
th
Pentium™/Celeron™
• BIOS: AMI 128Mbit SPI Flash
• Chipset: Intel H110
®
• System memory: Dual-channel (non-ECC) U-DIMM
DDR4 2133/2400, up to 64 GB (32 GB per DIMM)
Note: 6 Gen. CPU up to 2133, 7
th
• SATA ports: SATA 3.0 x 4 (600 MB/sec)
• Serial ports: 2x RS-232 with pin headers
• Parallel port: 1x parallel port, supports SPP/EPP/ECP
mode
• Keyboard/mouse connector: Supports 1x standard
PS/2 keyboard and mouse connector and 1x external
6-pin header
• Watchdog timer: 255 level timer intervals
• USB 2.0: Up to 7 (6x pin header, 1x vertical type A)
• USB 3.0: Up to 3 (2x pin header, 1x rear)
• GPIO: One programmable 8-bit GPIO pin-header
VGA Interface
• Chipset: Intel® HD graphics
• Shared system memory determined by OS
Ethernet Interface
• Chipset Supports:
- LAN1: Intel® I219-V
- LAN2: Intel® I211-AT
• Connection: 2x on-board RJ-45 connector with LED
indicators"
Mechanical and Enviromental
• Dimensions: (L x W): 338 x 122 mm (13.3 x 4.8 in)
• Power supply voltage: +12V, +5V, +5VSB
• Power requirements:
i7-6700 CPU, 32G 2Rx8 DDR4 3200U*2, SEAGATE
500GB*1
Voltage: +V12, +V5, +V5_SB, +V12_4P
Current: 0.13A, 0.94A, 0.08A, 1.33A
• Operating temperature: 0 ~ 60 °C (32 ~ 140 °F) (de-
pending on CPU)
• Weight: 0.5 kg/1.10 lb (weight of board)
PCA-6029 Startup Manual 1
Core™
®
Gen. Intel Core™ i7/i5/i3/
th ®
Gen. CPU up to 2400
th
