MAGNET CLUTCH

INSPECTION
a. Inspect clutch plate and clutch pulley for signs of oil.
b. Check clutch pulley bearings for noise and grease leakage.
c. Using ohmmeter, measure resistance of clutch coil between
clutch lead wire and compressor body ground.
If measured resistance is not within tolerance, replace coil.
Standard resistance: 3.0 – 3.5 W at 20 5C, 68 5F
1) Fix Pressure plate with special tool (A) and then remove pres-
sure plate nut and washer.
Special Tool
(A): 09991-06020
2) Remove pressure plate (1) by using a special tool (B).
Special Tool
(B): 09990-58210
AIR CONDITIONING (OPTIONAL) 1B-25

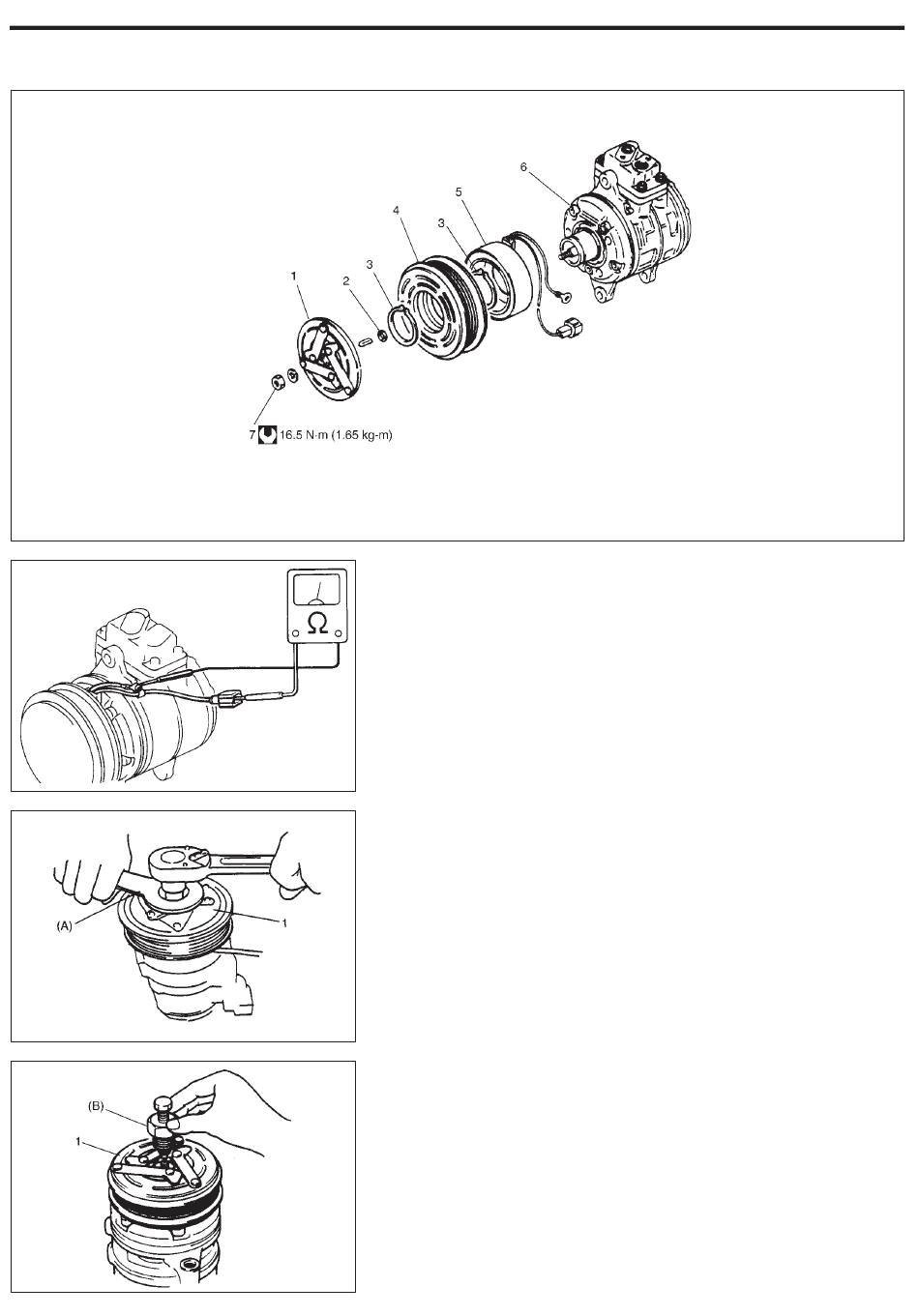

1. Pressure plate
2. Shim
3. Circlip
4. Drive clutch
5. Magnetic clutch coil
6. Compressor
7. Pressure plate nut
