1A-6 HEATER AND VENTILATION

1) Disconnect negative (–) cable at battery.

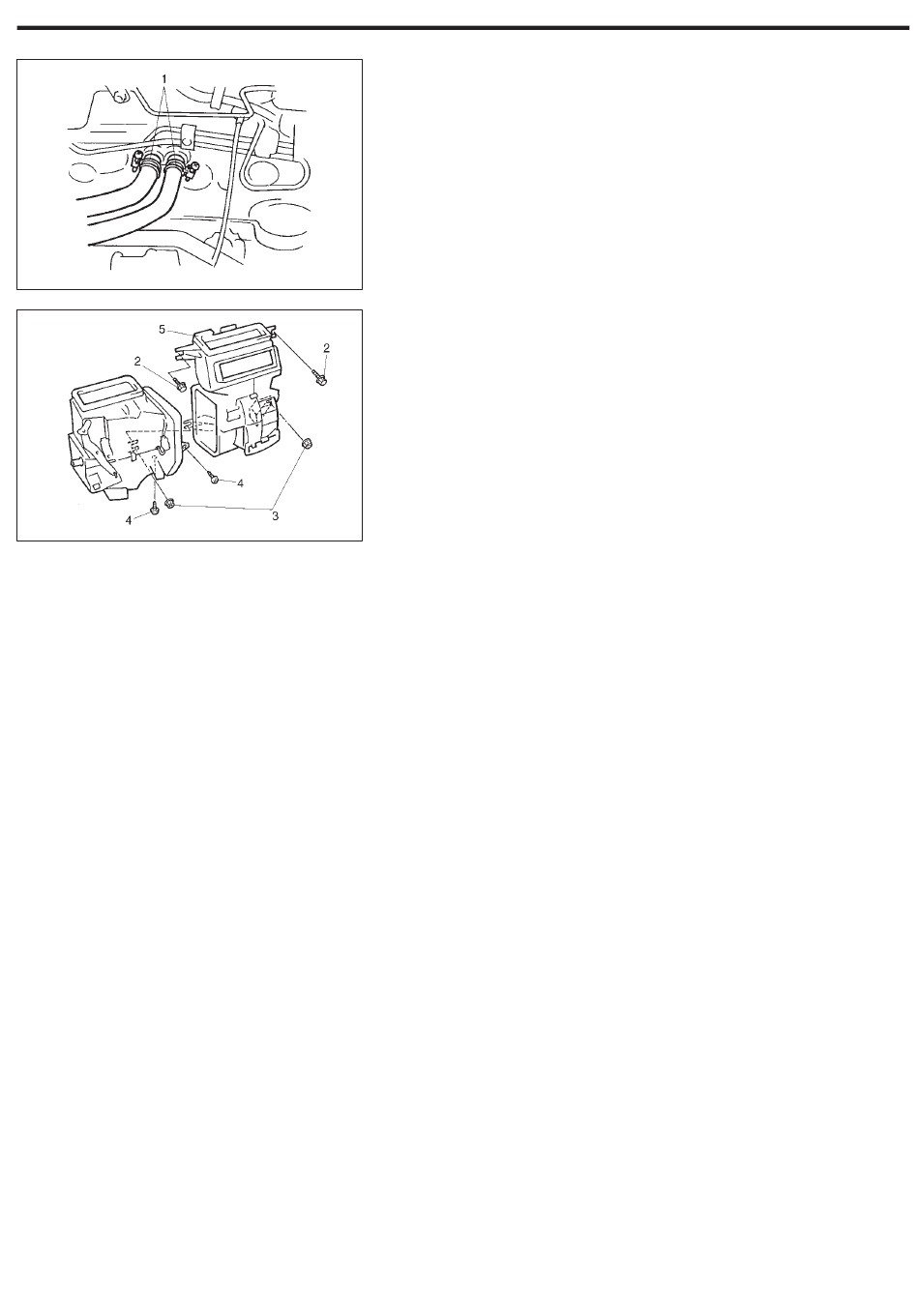

2) Drain engine coolant and disconnect heater hoses (1) from

heater unit.

3) Remove instrument panel.

4) Disconnect each couplers (blower motor, resistor) from heater

5) Remove bolts (2), nuts (3) and screws (4) (if vehicle equipped

with A/C) as shown.

6) Remove heater unit (5) from vehicle.

INSTALLATION

Install heater unit by reversing removal procedure, noting the fol-

lowing items.

D When installing each part, be careful not to catch any cable or

wiring harness.

D Adjust heater control cable (refer to heater control lever assem-

bly in this section).

D Fill engine coolant to radiator, refer to ENGINE COOLANT

CHARGE in Section 0B.
