Electrically operated projection screen with motor-in-roller

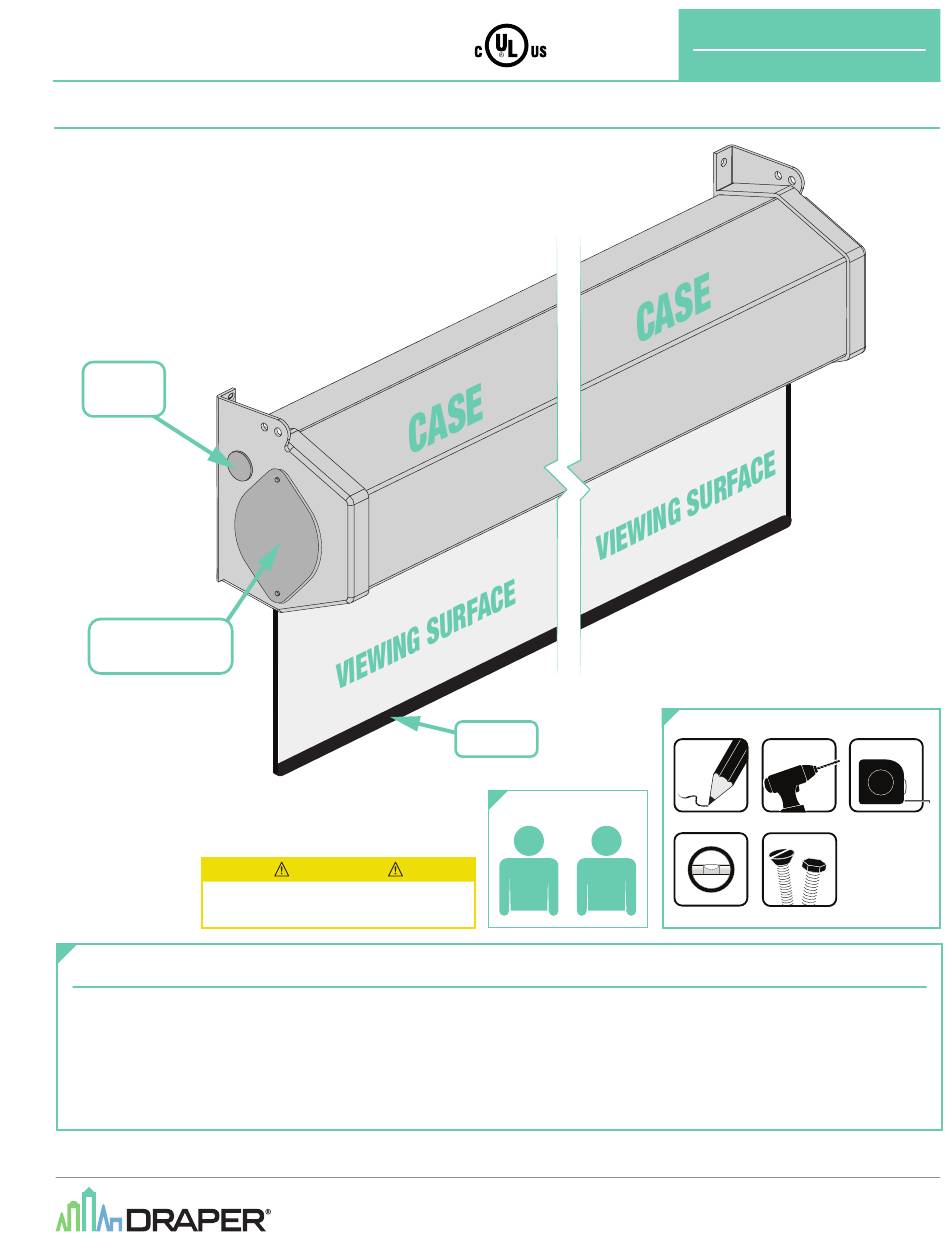

Overview - Components
Cable
Exit
Junction Box
(with cover)
Read and understand all warnings
(Page 2)
Contents
Overview - Components ...............................................................................................1
Section 1 - Electrical Connections .............................................................................2
Section 2 - Operation....................................................................................................2
PLEASE READ - Safety Information ............................................................................2
Section 3 - Hanging Screen and Methods of Installation .......................................3
CAUTION
before beginning installation.
Dowel
PERSONNEL
REQUIRED
Section 4 - Limit Adjustments .....................................................................................4
Section 6 - Wiring Diagrams: Standard and Quiet Motor .......................................6
Section 8 - Dimensions ................................................................................................8
INSTRUCTIONS
INSTALLATION & OPERATION
TOOLS REQUIRED
POWER DRILL
PENCIL
LEVEL
HARDWARE
(by others)
.........................5
If you have any difficulties installing or servicing your
Targa Projection Screen, call your dealer or Draper
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: Targa_Inst20
© 2020 All Rights Reserved
TAPE MEASURE
, Inc.
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper Targa
Summary of Contents for Draper Targa
-
Page 1: Table Of Contents
If you have any difficulties installing or servicing your Targa Projection Screen, call your dealer or Draper , Inc. ® Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385 draperinc.com | 765.987.7999 | 800.238.7999 FORM: Targa_Inst20 © 2020 All Rights Reserved... -
Page 2: Section 1 - Electrical Connections
Important Safety Information Improper installation and use of the Targa Projection Screen can result in serious injury or death. Primarily, injuries can occur if the unit falls due to imprecise installation, mishandling of the unit during installation, or installation on an insufficient wall or ceiling structure. Please use extreme care. -
Page 3: Section 3 - Hanging Screen And Methods Of Installation
Targa page 3 of 8 Section 3 - Hanging Screen and Methods of Installation S Hooks for Fasteners for wall mounting suspended by others. ( " hole) (6mm) installation CAUTION: Product is heavy: Installer must provide adequate attachment hardware and by others.*... -
Page 4: Section 4 - Limit Adjustments
1. Raise screen surface approximately 1' above desired setting (30 cm) Please check with Draper prior and turn switch off. to resetting screen limits. 2. Turn DOWN limit screw clockwise (3 screw turns = 1/2 roller revolution) 3. -
Page 5: Section 5 - Accessing Internal Low-Voltage Control Unit
Targa page 5 of 8 Section 5 - Accessing Internal Low-Voltage Control Unit (LVC-IV) PLEASE NOTE: Applies ONLY if Unit is built into case. Electrical Connection 1. Locate LVC-IV Unit. Hole* 2. Remove the two star head screws from the motor end of the screen housing. -
Page 6: Section 6 - Wiring Diagrams: Standard And Quiet Motor
Targa page 6 of 8 Section 6 - Wiring Diagrams: Standard and Quiet Motor Please Note: Do not wire motors in parallel. 110-120V MOTOR External LVC-IV Junction Box 2.214" 4.5" (56mm) STANDARD (114mm) Single Station Control Internal Screen Wiring White (Common) -
Page 7: Section 7 - Wiring Diagrams: Motor With Internal Low-Voltage Controller
Targa page 7 of 8 Section 7 - Wiring Diagrams: Motor with Internal Low-Voltage Controller 110-120V MOTOR AND QUIET MOTOR 110-120V Motor Plug & Play 110-120V Motor (Motor with internal low-voltage controller - ILT) (Motor with internal low-voltage controller) (Internal Low-Voltage Controller for ILT motor) -
Page 8: Section 8 - Dimensions
Targa page 8 of 8 Section 8 - Dimensions Fabric width + 7" (178mm) (6mm) dia. hole for mounting VIEWING SURFACE (89mm) (133mm) (59mm) (6mm) dia. holes (149mm) for suspending with "S" Hooks (22mm) electrical connection hole...
