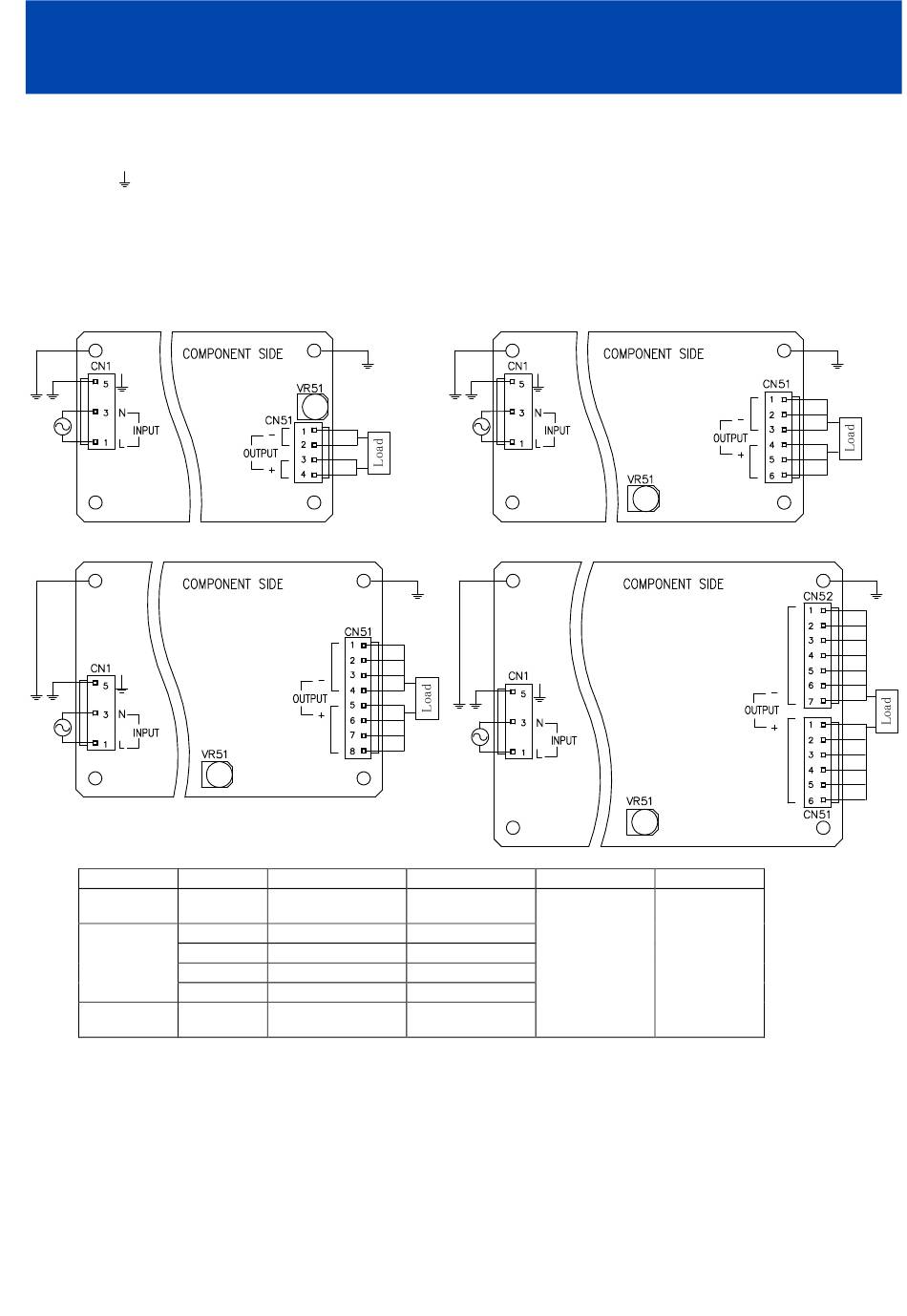

3. Terminal Connection Method
Pay attention to the input wiring. If it is connected to wrong terminal, the power supply will be damaged.
·
Input must be off when making connections.
·
Connect terminal of input connector and mounting hole to protective earth of the equipment.
·
Output current of each terminal pin must be less than 5A.
·
The output load line and input line shall be separated to improve noise sensitivity.
·
Do not apply stress to PCB, when connecting or removing connector.
·
Use input/output connector specified by the table below.
·
Use recommended crimping tool. Connector is not included with this product. (Refer to the following)
VS50E
VS100E

Input/Output Connector

Model
Input
( Common )
( CN1 )
VS50E
VS75E
Output
( CN51 )
VS100E
VS150E
Output
VS150E
( CN52 )
Hand Crimping Tool : YC-160R ( J.S.T. )
Connector Housing
B3P5-VH(LF)(SN) VHR-5N
B4P-VH(LF)(SN) VHR-4N
B6P-VH(LF)(SN) VHR-6N
B8P-VH(LF)(SN) VHR-8N
B6P-VH(LF)(SN) VHR-6N
B7P-VH(LF)(SN) VHR-7N
-2-
VS75E
VS150E
Terminal Pin
SVH-21T-P1.1
BVH-21T-P1.1
TDK-Lambda
VS-E Series
Instruction Manual
Maker
J.S.T.
