Hubbell Gai-Tronics SP2 Quick Installation Manual
Fiber weatherproof class i div. 2 handset/speaker amplifier station
Hide thumbs
Also See for Gai-Tronics SP2:
- Manual (25 pages) ,
- Instruction manual (22 pages) ,
- Quick installation manual (5 pages)
Table of Contents
Advertisement
Quick Links
SP2 Fiber Weatherproof Class I Div. 2 Handset/Speaker
Amplifier Station Quick Installation Guide
General Information
This guide covers the installation of SP2 fiber weatherproof Class I Div. 2 handset/speaker amplifier stations (see Figure 1).
Refer to Publication 42004-791 for detailed explanations of the available configuration options and adjustments, system
specifications, and warranty information. GAI-Tronics' product documentation is on the GAI-Tronics website at
https://www.gai-tronics.com.
Options
The factory installs and preconfigures optional equipment to default settings.
•
24 V dc power supply
•
speaker amplifier only (no handset)
•
headset with page pressbar
•
five configurable alternate page destinations with selector switch
Settings and Adjustments
Perform the following adjustments and settings after installation:
•
speaker volume
•
series/parallel speaker connection
GAI-TRONICS 3030 KUTZTOWN RD. READING, PA 19605 USA
V
G A I - T R O N I C S
A H U B B E L L C O M P A N Y
•
PVC or Hytrel
•
All-Call push button
•
conformal PCBA coating
•
receiver volume
•
station ID and zone selector
Figure 1. SP2 Weatherproof Fiber Class I Div. 2 Station
610-777-1374 800-492-1212 Fax: 610-796-5954
.
-
.
ISIT WWW
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS
®
®
handset cords in 6-, 15-, or 25-foot lengths
Pub. 42004-791CQG
Advertisement
Table of Contents
Related Manuals for Hubbell Gai-Tronics SP2
Summary of Contents for Hubbell Gai-Tronics SP2

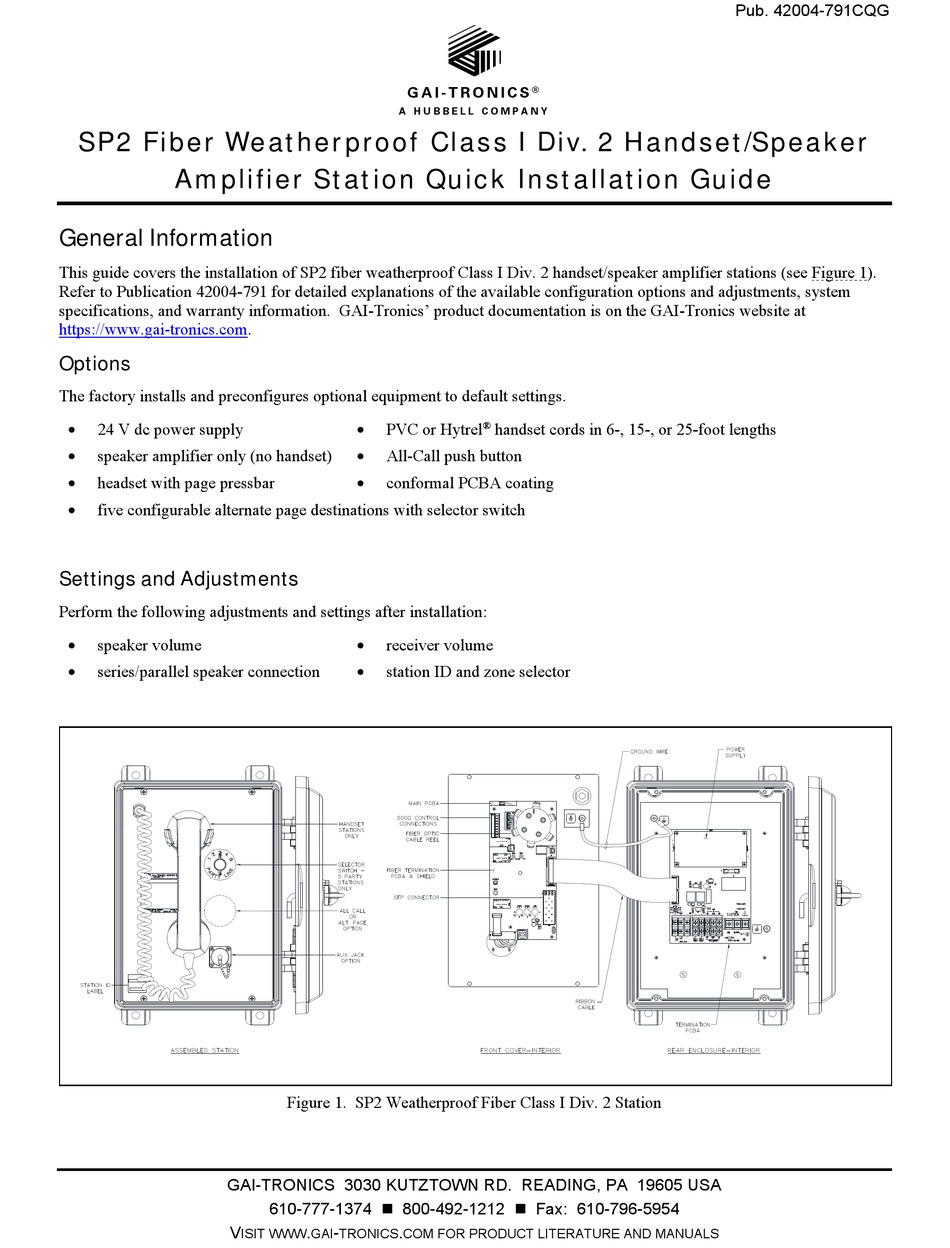

- Page 1 Pub. 42004-791CQG G A I - T R O N I C S ® A H U B B E L L C O M P A N Y SP2 Fiber Weatherproof Class I Div. 2 Handset/Speaker Amplifier Station Quick Installation Guide General Information This guide covers the installation of SP2 fiber weatherproof Class I Div.
