Timeguard ETU17N Installation & Operating Instructions Manual

Compact 7 day timeswitch
Hide thumbs

Advertisement

Quick Links

Download this manual

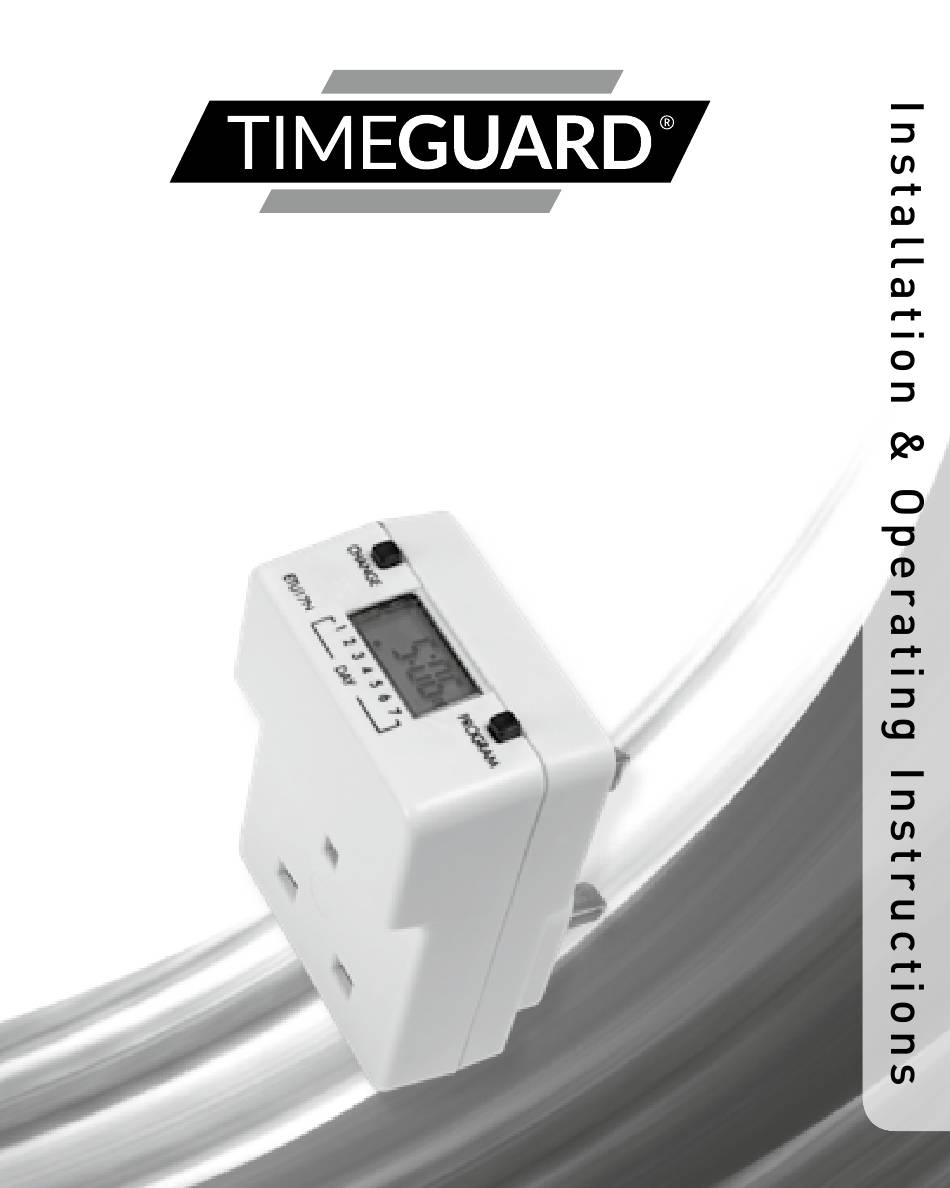

Compact 7 Day
Timeswitch
Model: ETU17N

Advertisement

loading
Need help?

Need help?

Do you have a question about the ETU17N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Timeguard ETU17N

Summary of Contents for Timeguard ETU17N

  • Page 1 Compact 7 Day Timeswitch Model: ETU17N...

  • Page 2: General Information

    1. General Information These instructions should be read carefully in full before using the product, and retained for further reference and maintenance. 2. Safety • Do not plug in any appliance that exceeds the capacity of the Timer. • Always ensure the plug of any appliance is fully inserted into the timer outlet.

  • Page 3: Technical Specifications

    3. Technical Specifications • 230V AC 50Hz • Switch Rating: 13A Resistive (3kW) 2500W Incandescent/ Halogen lighting 500W Fluorescent lighting 100W LED lightning • Operating Temperature: -10°C to +35°C • 7 day programming • 7 ON/OFF programmes over a choice of day groups or individual days •...
  • Page 4 ON times giving the impression that your home or premises is always occupied 4. Charging Battery and Resetting • Plug the ETU17N into a live socket for 4 hours to fully charge the battery, in order to bring the display ON (if blank).
  • Page 5 • Reset the unit by simultaneously holding both ‘CHANGE’ and ‘PROGRAM’ buttons down until the screen goes blank. Release the button. This will clear any programmes stored in the memory and after approximately 3 seconds the display will show the following; •...
  • Page 6 The example time and day used here is Monday at 16:00 o’clock. 5.1 After you have performed a full reset, the current day of the week indicator will be flashing; 5.2 You are able to change the day of week using the ‘CHANGE’...
  • Page 7 5.4 Press the ‘CHANGE’ button to select the current hour of day followed by the ‘PROGRAM’ button to save. The minute digit will start to flash; 5.5 Press the ‘CHANGE’ button to select the current minutes followed by the ‘PROGRAM’ button to save.
  • Page 8 You are able to program ON/OFF times to operate over the following days/day groups (shown in order of presentation on the ETU17N programming screen); 1 2 3 4 5 6 7 • • • • •...
  • Page 9 6.1 Press the ‘CHANGE’ button to scroll through the days/day groups. Press the ‘PROGRAM’ button to select the group you require (in this case 2 days (Weekend) Sa Su). The hour digit for the ON time will start to flash; 6.2 Press the ‘CHANGE’...
  • Page 10 6.3 Press the ‘CHANGE’ button to select the minutes (in this case 00). Press the ‘PROGRAM’ button to save, and the hour digit for your OFF time will start to flash; 6.4 Press the ‘CHANGE’ button to select the hour of your OFF time (in this case 16).
  • Page 11 ON period, the unit will not automatically switch ON. Press the ‘CHANGE’ button once to turn the ETU17N ON (the ON will flash to indicate you have manually overridden the unit). After this the unit will operate normally...
  • Page 12 7. Programming Across Midnight You are able to programme ON and OFF times across midnight by using either of the following methods; • If you require one ON/OFF time for all week, this can be achieved by programming the required ON and OFF time as normal on the first program.
  • Page 13 Note: The unused times in these two programmes can either be left blank (--:--) or used for an OFF time during the initial day and an ON time during the subsequent day. 8. Programme Review • To fast review the programmes (or for quick exit to normal operating mode) –...

  • Page 14: Operation

    9. Operation • When you are ready to use the device, plug the ETU17N into a 13A switched socket and switch it ON. • Plug in the appliance or lamp(s) to be controlled into the ETU17N and ensure the appliance or lamp(s) are switched ON.
  • Page 15 10. Changing the Time and Day of the Week • Press the ‘PROGRAM’ button once and the time/day will start to flash. • Press the ‘CHANGE’ button once and the day of week indicator will start to flash. • Follow steps 5.2 through to 5.5 to alter the time and day of week.
  • Page 16 11. Modifying programmes • Slowly review the programmes one at a time (see section 8. Programme Review) until you reach the program you wish to modify. • Press the ‘CHANGE’ button once and the days/day groups will flash. • Press the ‘PROGRAM’ button once and the hour digit will flash.
  • Page 17 12. Cancelling Programmes Any ON/OFF programmes can be cancelled by clearing its ON and OFF time separately. A full reset will not be required unless all programmes need to be erased. • Simply access the ON time you wish to cancel (see section 8.
  • Page 18 13. Self-Cancelling Override • To change the output status from ON to OFF or vice versa press the ‘CHANGE’ button whilst in normal operating mode. • The output status will change, and either the ON or OFF symbol will flash to indicate the unit has been manually overridden.

  • Page 19: Year Guarantee

    • The ETU17N will now switch ON and OFF in a random fashion during programmed ON periods. • Both the ON and OFF periods will vary in a random way between 10 and 31 minutes. • Normal switching can be restored by pressing and holding the ‘CHANGE’...
  • Page 20 Note: If you have any concerns that the intended application of this product does not meet your requirements, please contact Timeguard directly prior to installation. If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline;...
