Setup

Setup

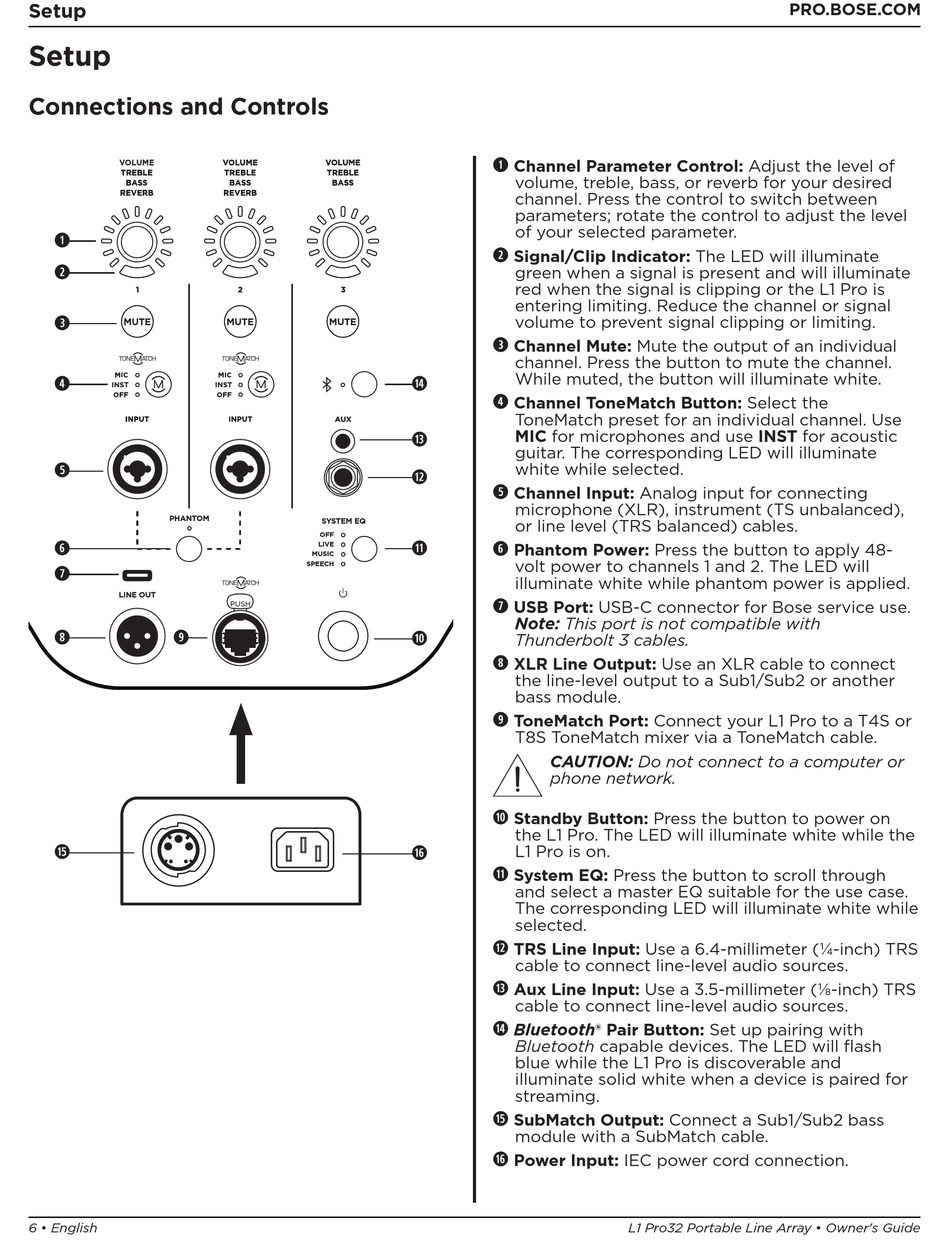

Connections and Controls

VOLUME
TREBLE TREBLE
BASS BASS
REVERB REVERB
q
w
e MUTE
r
INST
t
PHANTOM
y
u
LINE OUT
i o
h
6 • English
VOLUME VOLUME VOLUME VOLUME
TREBLE TREBLE TREBLE TREBLE
BASS BASS BASS BASS
REVERB REVERB
MUTE MUTE
INST
SYSTEM EQ
OFF
LIVE
MUSIC
SPEECH
PUSH
Channel Parameter Control: Adjust the level of
q
volume, treble, bass, or reverb for your desired
channel. Press the control to switch between
parameters; rotate the control to adjust the level
of your selected parameter.
Signal/Clip Indicator: The LED will illuminate
w
green when a signal is present and will illuminate
red when the signal is clipping or the L1 Pro is
entering limiting. Reduce the channel or signal
volume to prevent signal clipping or limiting.
Channel Mute: Mute the output of an individual
e
channel. Press the button to mute the channel.
While muted, the button will illuminate white.
g
Channel ToneMatch Button: Select the
r
ToneMatch preset for an individual channel. Use
MIC for microphones and use INST for acoustic
f
guitar. The corresponding LED will illuminate
white while selected.
d
Channel Input: Analog input for connecting
t
microphone (XLR), instrument (TS unbalanced),
or line level (TRS balanced) cables.
Phantom Power: Press the button to apply 48-
s
y
volt power to channels 1 and 2. The LED will
illuminate white while phantom power is applied.
USB Port: USB-C connector for Bose service use.
u
Note: This port is not compatible with
Thunderbolt 3 cables.
a
XLR Line Output: Use an XLR cable to connect
i
the line-level output to a Sub1/Sub2 or another
bass module.
ToneMatch Port: Connect your L1 Pro to a T4S or
o
T8S ToneMatch mixer via a ToneMatch cable.
CAUTION: Do not connect to a computer or
phone network.
Standby Button: Press the button to power on
a
the L1 Pro. The LED will illuminate white while the
L1 Pro is on.
j
System EQ: Press the button to scroll through
s
and select a master EQ suitable for the use case.
The corresponding LED will illuminate white while
selected.
TRS Line Input: Use a 6.4-millimeter (1/4-inch) TRS
d
cable to connect line-level audio sources.
Aux Line Input: Use a 3.5-millimeter (1/8-inch) TRS
f
cable to connect line-level audio sources.
Bluetooth® Pair Button: Set up pairing with
g
Bluetooth capable devices. The LED will flash
blue while the L1 Pro is discoverable and
illuminate solid white when a device is paired for
streaming.
SubMatch Output: Connect a Sub1/Sub2 bass
h
module with a SubMatch cable.
Power Input: IEC power cord connection.
j
PRO.BOSE.COM
L1 Pro32 Portable Line Array • Owner's Guide
