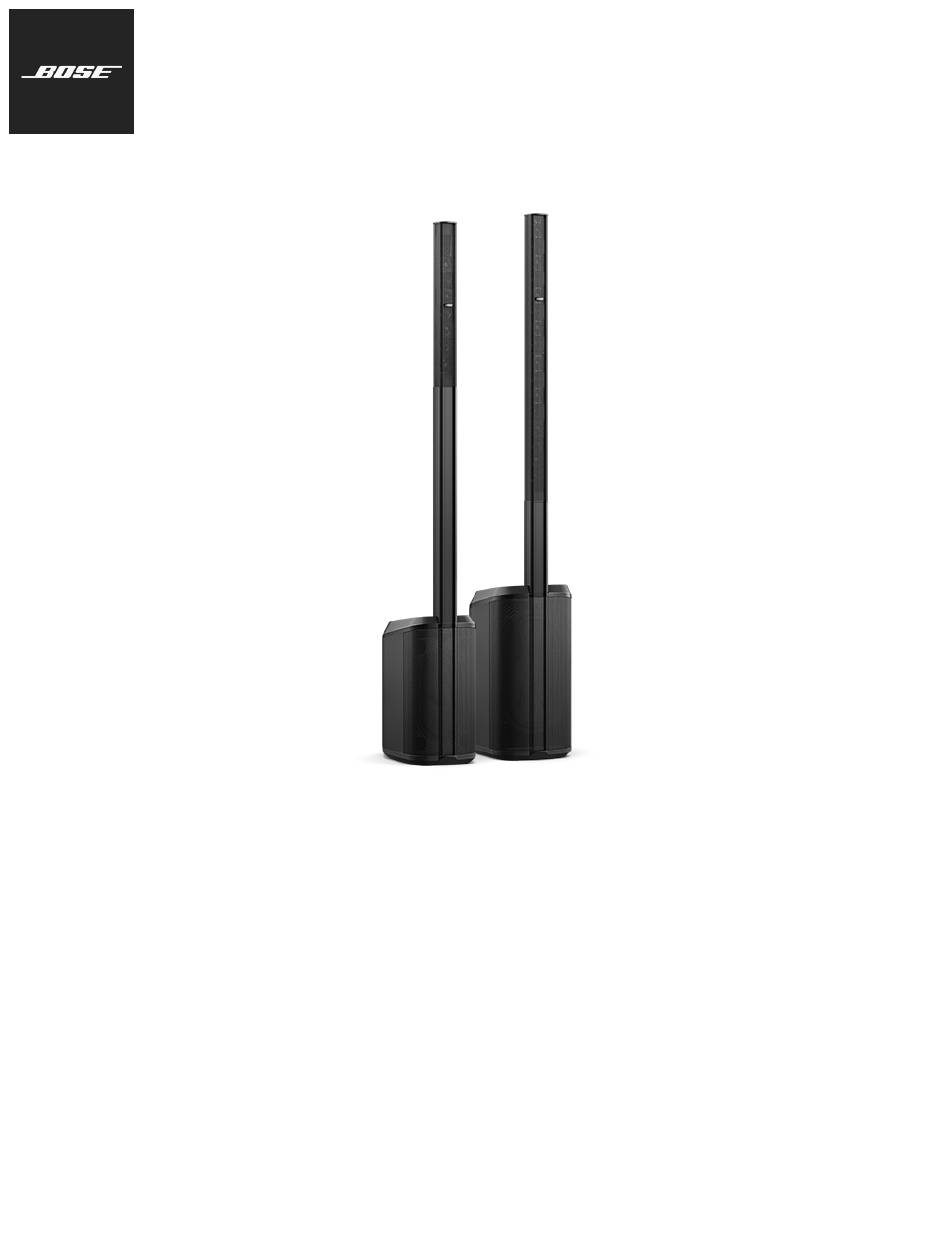

  • Page 1 L1 Pro8 & L1 Pro16 Portable Line Array System Owner's Guide...
  • Page 2 Contains small parts which may be a choking hazard. Not suitable for children under age 3. Model: L1 Pro8/L1 Pro16. The CMIIT ID is located on the bottom of the product. CAN ICES-3 (B)/NMB-3(B) Information About Products That Generate Electrical Noise (FCC Compliance Notice for US) This product contains magnetic material.
  • Page 3 This symbol means the product must not be discarded as household waste, and Mexico Importer: Bose de México, S. de R.L. de C.V. , Paseo de las Palmas 405-204, Lomas de should be delivered to an appropriate collection facility for recycling. Proper Chapultepec, 11000 México, D.F.
  • Page 4: Table Of Contents

    DJ Stereo ......................................14 DJ with Sub1 ....................................... 14 Musician Dual Mono ..................................15 Musician with S1 Pro Monitor ...............................15 Care & Maintenance Cleaning Your L1 Pro ....................................16 Troubleshooting ......................................16 4 • English L1 Pro8/Pro16 Portable Line Array System • Owner's Guide...
  • Page 5: Overview

    L1 Pro16 Optional Accessories • L1 Pro8 System Bag • L1 Pro16 System Roller Bag • L1 Pro8/Pro16 Slip cover For additional information on L1 Pro accessories, visit PRO.BOSE.COM. Owner's Guide • L1 Pro8/Pro16 Portable Line Array System English • 5...
  • Page 6: System Setup

    Bluetooth® Pair Button: Set up pairing with Bluetooth capable devices. The LED will flash blue while the L1 Pro is discoverable and illuminate solid white when a device is paired for streaming. 6 • English L1 Pro8/Pro16 Portable Line Array System • Owner's Guide...
  • Page 7: Assembling The System

    L1 Pro16 L1 Pro8 subwoofer power stand. This configuration is most useful when on an elevated stage to be sure the mid-high array is at ear level. Owner's Guide • L1 Pro8/Pro16 Portable Line Array System English • 7...
  • Page 8: Connecting Power

    While reverb is muted, Reverb will flash white. To unmute reverb, press and hold for two seconds while Reverb is selected. Reverb mute will reset when the system is powered off. 8 • English L1 Pro8/Pro16 Portable Line Array System • Owner's Guide...
  • Page 9: Channel 3 Controls

    L1 Mix App Control Download the Bose L1 Mix app for additional device control and audio streaming. Once downloaded, follow the instructions in the app to connect your L1 Pro. For specific information on how to use the L1 Mix App, see the in-app help.
  • Page 10: Additional Adjustments

    L1 Pro. Note: The system EQ affects subwoofer/mid-high array audio only. System EQ does not affect XLR Line Output audio. 10 • English L1 Pro8/Pro16 Portable Line Array System • Owner's Guide...
  • Page 11: System Setup Scenarios

    PRO.BOSE.COM System Setup Scenarios The L1 Pro8/Pro16 system can be placed on the floor or on an elevated stage. When using the system on an elevated stage, assemble your system without the array extension (see Assembling the System on page 7).
  • Page 12: Musician With Mobile Device

    System Setup PRO.BOSE.COM Musician with Mobile Device MUTE MUTE MUTE INST INST Band MUTE MUTE MUTE INST INST 12 • English L1 Pro8/Pro16 Portable Line Array System • Owner's Guide...
  • Page 13: Musician With T8S Mixer

    PUSH PUSH ToneMatch Cable Note: T8S left channel audio is delivered only. Musician Stereo with T4S Mixer POWER MAIN OUT PUSH PUSH PUSH PUSH ToneMatch Cable ToneMatch Cable Owner's Guide • L1 Pro8/Pro16 Portable Line Array System English • 13...
  • Page 14: Dj Stereo

    TRS Line Input to allow for a wider range of volume control. INST MUTE MUTE LINE IN 1 INST Note: For proper Sub1/Sub2 settings, see the Sub1/Sub2 owner's guide at PRO.BOSE.COM. 14 • English L1 Pro8/Pro16 Portable Line Array System • Owner's Guide...
  • Page 15: Musician Dual Mono

    Musician with S1 Pro Monitor *Alternate Connection This scenario requires a MUTE MUTE specialized cable or adapter. Connect a TRS cable to allow for a wider range of volume INST INST control. Owner's Guide • L1 Pro8/Pro16 Portable Line Array System English • 15...
  • Page 16: Care & Maintenance

    • Increase the distance from the L1 Pro to the microphone. • If using a vocal effects processor, make sure it is not contributing to the feedback problem. 16 • English L1 Pro8/Pro16 Portable Line Array System • Owner's Guide...
  • Page 17 Turn the power off and back on; then try re-pairing your device. Excessive hum when • Ensure the volume on the daisy-chained unit(s) is not set too high. daisy-chaining multiple units Owner's Guide • L1 Pro8/Pro16 Portable Line Array System English • 17...
