TEST SETUP PROCEDURES

Mono Direct: To bypass the transformer and prepare the loudspeaker for 6 Ohm use and mono

sound input, remove the two jumpers from the transformer settings on the front of the loud-

speakers. Leave the CH1 and CH2 jumpers on the back of the loudspeaker as they are.

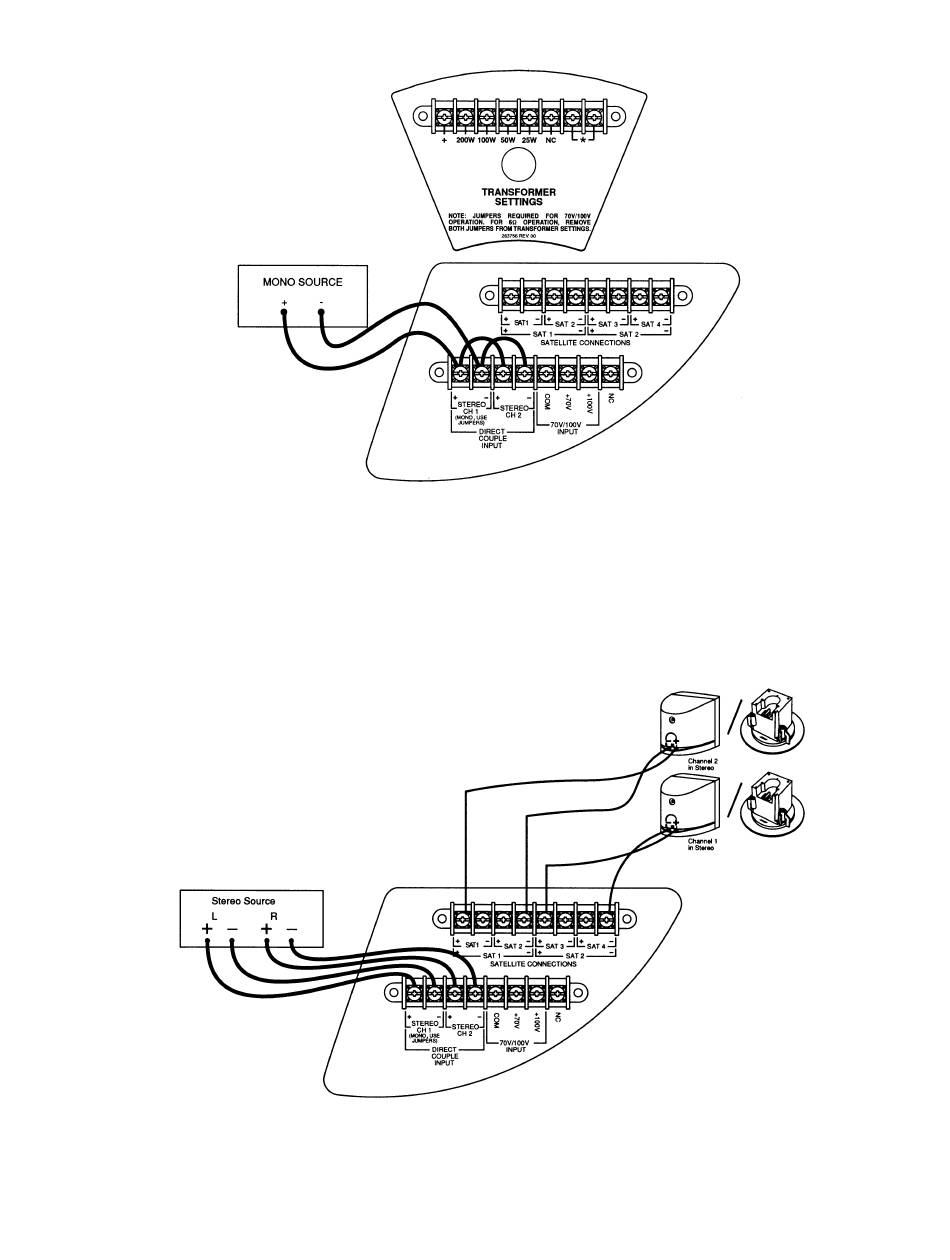

Figure 1. 6 Ohm Mono Test Setup Setting

Stereo Direct: To bypass the transformer and prepare the loudspeaker for 6 Ohm use and

stereo sound input, remove all the jumpers.

Figure 2. Stereo Test Setup Setting
