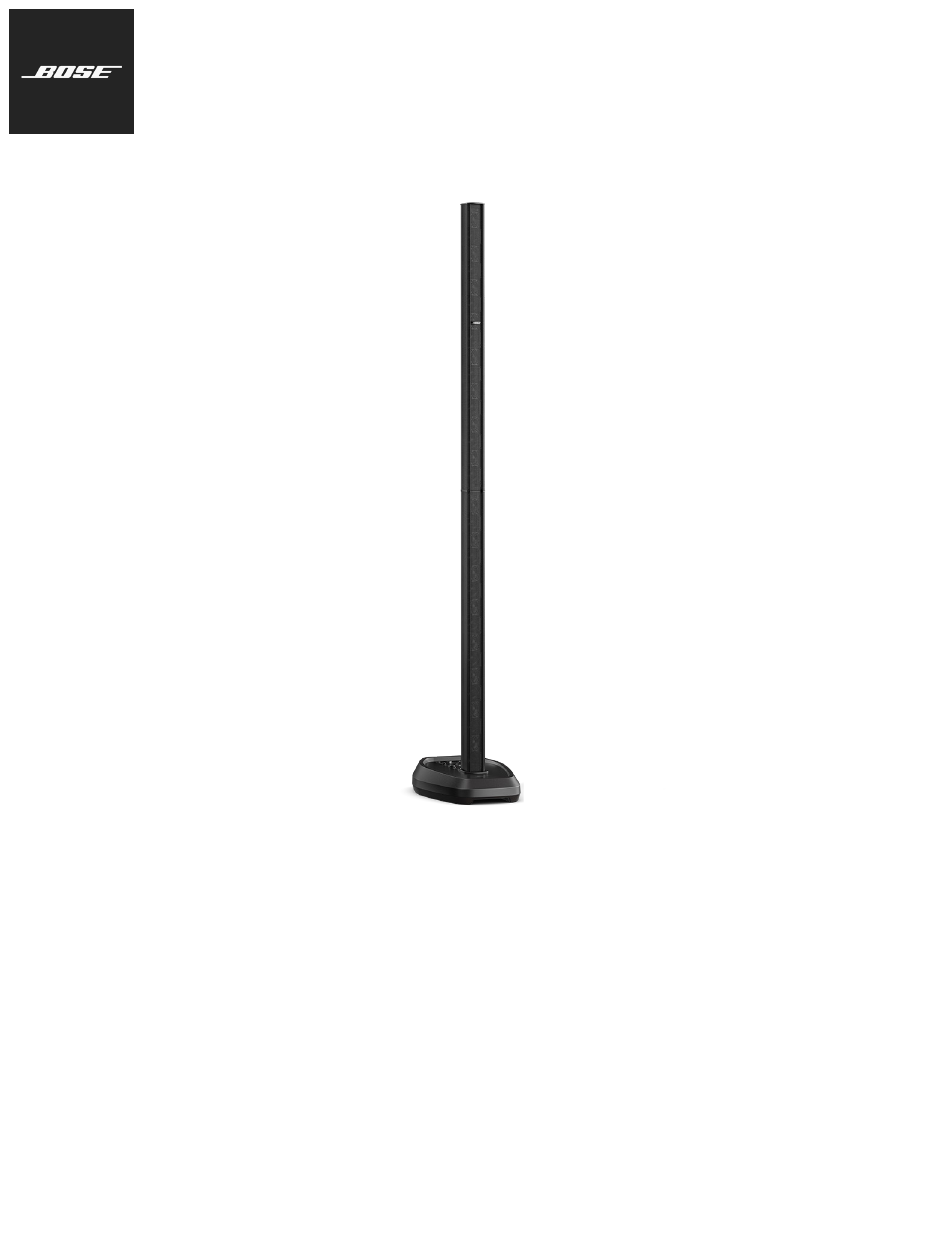

- Page 1 L1 Pro32 Portable Line Array Owner's Guide...
- Page 2 Bose Corporation hereby declares that this product is in compliance with the • The SubMatch Cable is intended for use with these Bose products only: L1 Pro32, Sub1, essential requirements and other relevant provisions of Directive 2014/53/EU and and Sub2.
- Page 3 This symbol means the product must not be discarded as household waste, and Mexico Importer: Bose de México, S. de R.L. de C.V. , Paseo de las Palmas 405-204, Lomas de should be delivered to an appropriate collection facility for recycling. Proper Chapultepec, 11000 México, D.F.
-
Page 4: Table Of Contents
DJ Stereo (with Four Stacked Subs)............................19 Musician Dual Mono (with Two Subs) ............................ 20 Musician with S1 Pro Monitor (with Sub) ..........................21 Care & Maintenance Cleaning Your L1 Pro ....................................22 Troubleshooting .......................................22 4 • English L1 Pro32 Portable Line Array • Owner's Guide... -
Page 5: Overview
Overview PRO.BOSE.COM Overview Package Contents L1 Pro32 Optional Accessories • L1 Pro32 Array & Power Stand Bag • SubMatch Cable For additional information on L1 Pro accessories, visit PRO.BOSE.COM. Owner's Guide • L1 Pro32 Portable Line Array English • 5... -
Page 6: Setup
L1 Pro is discoverable and illuminate solid white when a device is paired for streaming. SubMatch Output: Connect a Sub1/Sub2 bass module with a SubMatch cable. Power Input: IEC power cord connection. 6 • English L1 Pro32 Portable Line Array • Owner's Guide... -
Page 7: Assembling The Power Stand And Array
The L1 Pro32 can be used without the upper array. This configuration is useful when a venue ceiling cannot accommodate the height of the L1 Pro32. Lower mid-high array Power stand Owner's Guide • L1 Pro32 Portable Line Array English • 7... -
Page 8: Connecting Power And A Sub1/Sub2
Press the Standby Button on any connected Sub1/Sub2. For additional information on how to set up a Sub1/ Sub2, see the Sub1/Sub2 owner's guide at PRO.BOSE.COM. Note: When two Subs are connected to the L1 Pro32, first turn on the Sub connected directly to the L1 Pro32, then turn on the second Sub. -
Page 9: Connecting Sources
While reverb is muted, Reverb will flash white. To unmute reverb, press and hold for two seconds while Reverb is selected. Reverb mute will reset when the L1 Pro is powered off. Owner's Guide • L1 Pro32 Portable Line Array English • 9... -
Page 10: Channel 3 Controls
L1 Mix App Control Download the Bose L1 Mix app for additional device control and audio streaming. Once downloaded, follow the instructions in the app to connect your L1 Pro. For specific information on how to use the L1 Mix App, see the in-app help. -
Page 11: Additional Adjustments
L1 Pro. Note: The system EQ affects power stand/array audio only. System EQ does not affect XLR Line Output audio. Owner's Guide • L1 Pro32 Portable Line Array English • 11... -
Page 12: Setup Scenarios
PRO.BOSE.COM Setup Scenarios The L1 Pro32 can be placed on the floor or on an elevated stage (see Assembling the Power Stand and Array on page 7). WARNING: Do not place the equipment in an unstable location. The equipment could become unstable leading to a hazardous condition, which could result in injury. -
Page 13: Musician With Mobile Device (With Sub)
Setup PRO.BOSE.COM Musician with Mobile Device (with Sub) MUTE MUTE MUTE INST INST Band (with Sub) MUTE MUTE MUTE INST INST Owner's Guide • L1 Pro32 Portable Line Array English • 13... -
Page 14: Musician With T8S Mixer (With Sub)
MAIN OUT PUSH PUSH ToneMatch Cable Note: T8S left channel audio is delivered only. Musician (with Analog Sub Connection) MUTE MUTE INST INST LINE IN 1 LINE IN EQ 14 • English L1 Pro32 Portable Line Array • Owner's Guide... -
Page 15: Musician Stereo With T4S Mixer (With Two Subs)
Setup PRO.BOSE.COM Musician Stereo with T4S Mixer (with Two Subs) POWER MAIN OUT PUSH PUSH PUSH PUSH ToneMatch Cable ToneMatch Cable Owner's Guide • L1 Pro32 Portable Line Array English • 15... -
Page 16: Dj Stereo (With Two Subs)
Connect a TRS cable to the TRS Line Input to allow for a INST INST wider range of volume control. MUTE MUTE MUTE INST INST 16 • English L1 Pro32 Portable Line Array • Owner's Guide... -
Page 17: Dj Mono (With Two Stacked Subs)
Line Output of the first Sub to the Line Input of the second Sub with an XLR cable. Subs set up without a SubMatch cable must be connected to a power source. Owner's Guide • L1 Pro32 Portable Line Array English • 17... -
Page 18: Dj Mono (With Two Stacked Cardioid Subs)
Line Output of the first Sub to the Line Input of the second Sub with an XLR cable. Subs set up without a SubMatch cable must be connected to a power source. 18 • English L1 Pro32 Portable Line Array • Owner's Guide... -
Page 19: Dj Stereo (With Four Stacked Subs)
TRS Line Input to allow for a INST INST wider range of volume control. MUTE MUTE MUTE INST INST PHASE/PATTERN CARDIOID (Facing audience) PHASE/PATTERN CARDIOID (Facing audience) (Facing audience) PHASE/PATTERN CARDIOID (Facing audience) PHASE/PATTERN CARDIOID Owner's Guide • L1 Pro32 Portable Line Array English • 19... -
Page 20: Musician Dual Mono (With Two Subs)
Connect a TRS cable to the TRS Line Input to allow for a INST wider range of volume control. INST INST MUTE MUTE MUTE INST INST 20 • English L1 Pro32 Portable Line Array • Owner's Guide... -
Page 21: Musician With S1 Pro Monitor (With Sub)
Musician with S1 Pro Monitor (with Sub) *Alternate Connection This scenario requires a MUTE MUTE specialized cable or adapter. Connect a TRS cable to allow for a wider range of volume control. INST INST Owner's Guide • L1 Pro32 Portable Line Array English • 21... -
Page 22: Care & Maintenance
Clean the product enclosure using only a soft, dry cloth. If necessary, carefully vacuum the grille of the L1 Pro. • Gently wipe external surface of vent area (on the rear/bottom of the L1 Pro32) with cloth to remove debris that may be lodged in vent openings. Take care not to push debris into the L1 Pro32. •... - Page 23 Turn the power off and back on; then try re-pairing your device. Excessive hum when • Ensure the volume on the daisy-chained unit(s) is not set too high. daisy-chaining multiple units Owner's Guide • L1 Pro32 Portable Line Array English • 23...
- Page 24 ©2020 Bose Corporation, All rights reserved. Framingham, MA 01701-9168 USA PRO.BOSE.COM AM857142 Rev. 00 September 2020...
