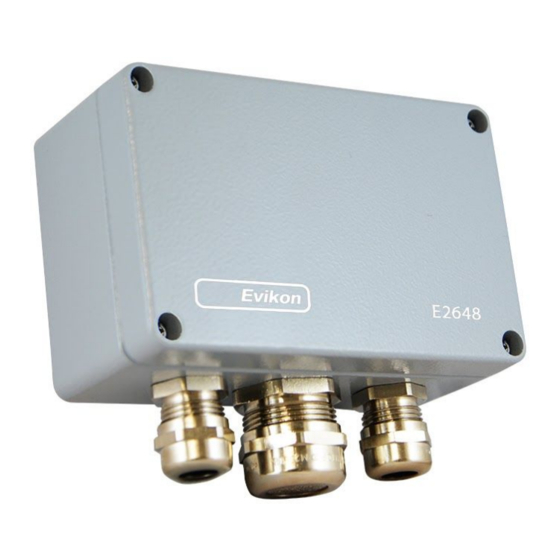

Evikon PluraSens E2648 Series User Manual

Sulfur dioxide detector-transmitter
Hide thumbs Also See for PluraSens E2648 Series:
Table of Contents

Advertisement

Quick Links

Download this manual










Sulfur Dioxide Detector-Transmitter

PluraSens​

E2648-SO2
User Manual
®



Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PluraSens E2648 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Evikon PluraSens E2648 Series

Summary of Contents for Evikon PluraSens E2648 Series

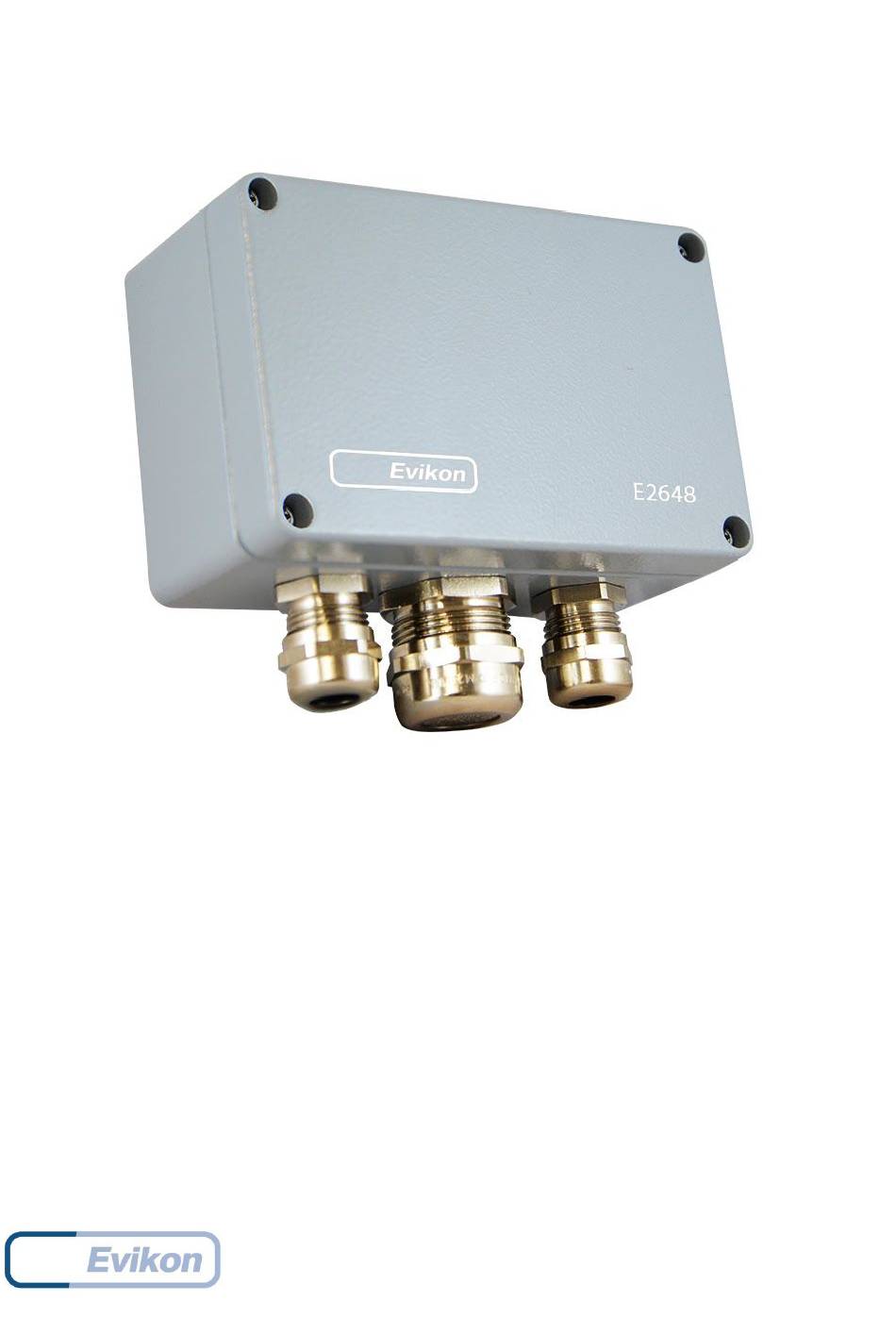

  • Page 1   PluraSens​ ®          Sulfur Dioxide Detector-Transmitter  E2648-SO2      User Manual               ...

  • Page 2: Table Of Contents

    E2648-SO2  Rev 11.03.2021  Table of contents  Sulfur Dioxide 3  Specifications 4  Product description 6  Safety requirements 6  Operating conditions 7  Installation guidelines 7  Mounting dimensions 8  Sensor probe handling 9  Gas sensor replacement procedures 9  Electrical connections 10  Operation 12  Maintenance 12 ...

  • Page 3: Sulfur Dioxide

    E2648-SO2  Rev 11.03.2021  Sulfur Dioxide  A colorless, non-flammable gas with a pungent odor like struck matches that is soluble in                               water.  Synonyms: Sulfurous anhydride, Sulfur(IV) oxide. Chemical formula ...

  • Page 4: Specifications

    E2648-SO2  Rev 11.03.2021  Specifications  Sensor type  Electrochemical cell  Sampling method  Diffusion  Typical detection range  0-20 ppm  Maximum overload  100 ppm  Resolution / digital unit  0.1 ppm  Response time T90  < 35 s  Sensor lifetime  2 years  Calibration interval  6 months  Signal update ...
  • Page 5 E2648-SO2  Rev 11.03.2021  Relay option  2 × SPST relays (closing contact),  Output relays  250 VAC / 30 VDC, 5 A max  RE1 (LOW): set 2 ppm; release 1.6 ppm  Default alarm setpoints  RE2 (HIGH): set 5 ppm; release 4 ppm  Other options ...

  • Page 6: Product Description

    E2648-SO2  Rev 11.03.2021  Product description  E2648 series heavy duty detectors-transmitters belong to the PluraSens® family of                       multifunctional measurement instruments. The instruments utilize gas sensors of various        ...

  • Page 7: Operating Conditions

    E2648-SO2  Rev 11.03.2021  Operating conditions  The device should be used both in a non-hazardous area and in a basic electromagnetic                               environment, where the latter is defined in EN 61326-1. Avoid strong mechanical shock and  ...

  • Page 8: Mounting Dimensions

    E2648-SO2  Rev 11.03.2021  Mounting dimensions      Front view        Bottom view  8 ...

  • Page 9: Sensor Probe Handling

    E2648-SO2  Rev 11.03.2021  Sensor probe handling   The E2648 series devices are available with a remote probe. The remote probe is                             connected to the main unit with a shielded cable. The default remote probe cable length is  ...

  • Page 10: Electrical Connections

    E2648-SO2  Rev 11.03.2021  Electrical connections  Unscrew four lid screws and detach the lid from the device. Use the M16 cable gland to let                                    ...
  • Page 11 E2648-SO2  Rev 11.03.2021  The screwless quick connect spring terminals on the E2648 series devices are suitable for                             2​ a wide range of wires with a cross-section of 0.2...1.5 mm​  ...

  • Page 12: Operation

    E2648-SO2  Rev 11.03.2021  Operation  Turn on the power. The instrument warm-up time takes about 1 minute after switching on                               and the final sensor stabilization time to maximum accuracy takes about 30 minutes. The  ...

  • Page 13: Delivery Set

    E2648-SO2  Rev 11.03.2021  Delivery set  Detector-transmitter E2648  ● ● Mounting accessories:  ○ 2 screws with plastic dowels  ○ Fixing clamp for remote probe versions        Order code for E2648-SO2 options    E2648 options   Order code  Remote probe, 3 m cable  E2648-SO2-RP33-3 ...

  • Page 14: Configuring

    E2648-SO2  Rev 11.03.2021  Configuring  A standard configuration kit includes a USB-RS485 converter, fixed flow regulator, gas                         tubing with applicators, and a software pack. Please contact your Seller for more  ...

  • Page 15: Modbus Rtu Communication

    E2648-SO2  Rev 11.03.2021  Modbus RTU Communication  RS485 communication interface    Databits: 8    Supported Modbus functions:  Parity: none / odd / even    03 – Read multiple registers   Stop bits: 1 or 2    06 – Write a single register  Protocol: Modbus RTU ...
  • Page 16 E2648-SO2  Rev 11.03.2021  0x0006  6 / 40007  RW  Response delay, ms  1...255  10  1 – No parity bit, 1 stop bit  (default after factory reset)  2 – No parity bit, 2 stop bits  3 – Odd parity, 1 stop bit  0x0007 ...
  • Page 17 E2648-SO2  Rev 11.03.2021  0 – none  2 – gas concentration  212 /  Parameter tied to relay  0x00D4  RW  9- – control by Modbus  2  40213  RE2  control, state set in MHR /  40215  213 /  Forced state for relay  0x00D5  RW ...
  • Page 18 E2648-SO2  Rev 11.03.2021  221 /  LOW setpoint for relay  see  0x00DD  RW  0...65535 (gas units)  Specifications  40222  RE1  222 /  HIGH setpoint for relay  see  0x00DE  RW  0...65535 (gas units)  40223  RE1  Specifications  223 /  LOW setpoint for relay  see  0x00DF ...
  • Page 19 E2648-SO2  Rev 11.03.2021  257 /  0x0101  R  Raw gas sensor data  0...4095, ADC units    40258  259 /  Gas concentration,   signed integer,  0x0103  R    40260  gas units  -32000...+32000 (gas units)  261 /  0% value   User  0x0105  RW  -32000...+32000 gas units  40262 ...

  • Page 20: Warranty

                                  unauthorized modification.        Manufacturer contacts    Evikon MCI OÜ  Teaduspargi 7/9, Tartu  50411 Estonia  info@evikon.eu   www.evikon.eu              20 ...
