Summary of Contents for Evikon E2610-CO

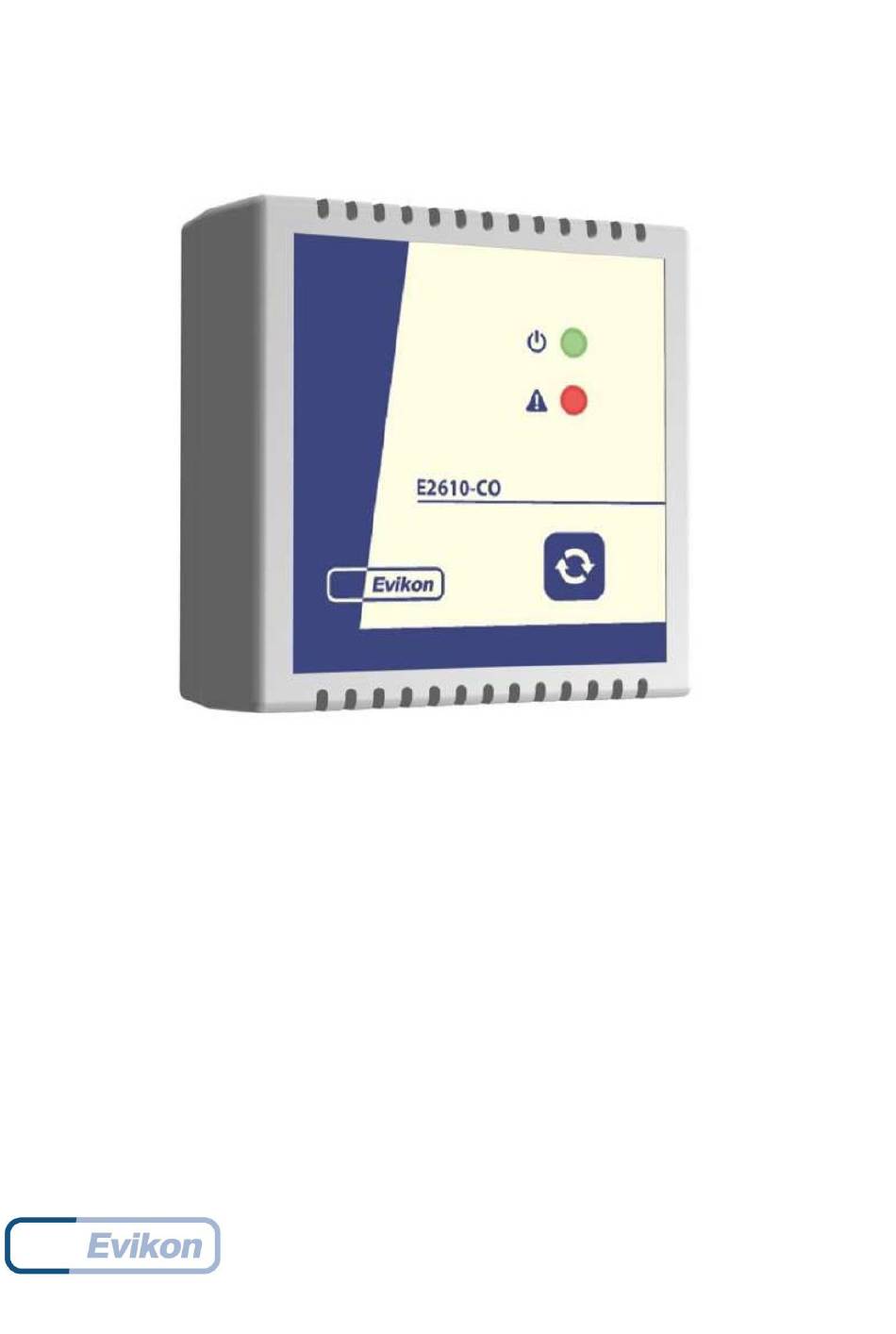

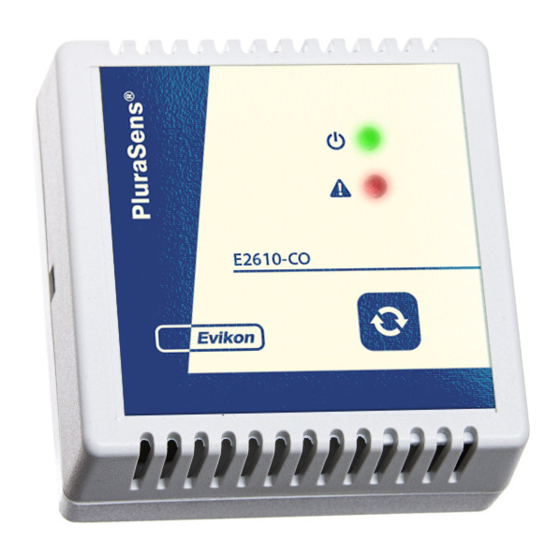

- Page 1 Carbon Monoxide Detector E2610-CO User Manual ...
-
Page 2: Table Of Contents
3 Specifications 4 Product description 5 Safety requirements 5 Operating conditions 5 Installation guidelines 6 Connections 7 Operation 9 Maintenance 9 Calibration 9 Delivery set 10 Order code for E2610-CO options 10 Warranty 11 Manufacturer contacts 11 2 ... -
Page 3: Carbon Monoxide
E2610-CO Rev 28.10.2020 Carbon Monoxide A Colorless, odorless, and tasteless gas that is highly toxic. Carbon monoxide is formed as a result of incomplete combustion of carbon-containing compounds, e.g. while operating a ... -
Page 4: Specifications
E2610-CO Rev 28.10.2020 Specifications Sensor type Electrochemical cell Sampling method Diffusion Typical detection range 0...200 ppm 0...1000 ppm Alarm setpoints 18 - 25 - 125 ppm 88 - 125 - 250 ppm (release-LOW-HIGH) Resolution / digital unit 1 ppm Accuracy ... -
Page 5: Product Description
E2610-CO Rev 28.10.2020 Product description E2610 series gas detectors are compact and easy-to-use instruments. The devices utilize novel fully calibrated and temperature compensated gas sensors with excellent ... -
Page 6: Installation Guidelines
E2610-CO Rev 28.10.2020 Installation guidelines There are no precise rules or standards to follow when installing gas detectors. The following points must be taken into account: ... -
Page 7: Connections
E2610-CO Rev 28.10.2020 Connections 1. Detach the base of the enclosure by gently pulling along four guiding pins. 2. Attach the base to the wall with two screws. (see drawings below). 3. Use rounded cutouts on the side of the base to let in the cables from the power supply ... - Page 8 E2610-CO Rev 28.10.2020 For easier connection, terminal blocks of E2610 series devices are removable. To dismount the terminal block, pull it off from the PCB. Connect the power terminals N and L ...
-
Page 9: Operation
immerse the device in water or any cleaning media. Calibration E2610-CO detectors have been calibrated by the Manufacturer with standard gas mixtures ... -
Page 10: Delivery Set
● Mounting accessories: ○ 2 screws and 2 plastic dowel plugs Order code for E2610-CO options E2610 options Order code Integrated 90...265 V mains power supply module E2610-CO-230 Integrated 24 VAC power supply module E2610-CO-24VAC ... -
Page 11: Warranty
unauthorized modification. Manufacturer contacts Evikon MCI OÜ Teaduspargi 7/9, Tartu 50411 Estonia info@evikon.eu www.evikon.eu 11 ...
