Installation
TLA 704 Color Portable Mainframe Service Manual
5. Remove the six screws that attach the front panel control board to the front
panel control assembly.
Elastomeric
keypad

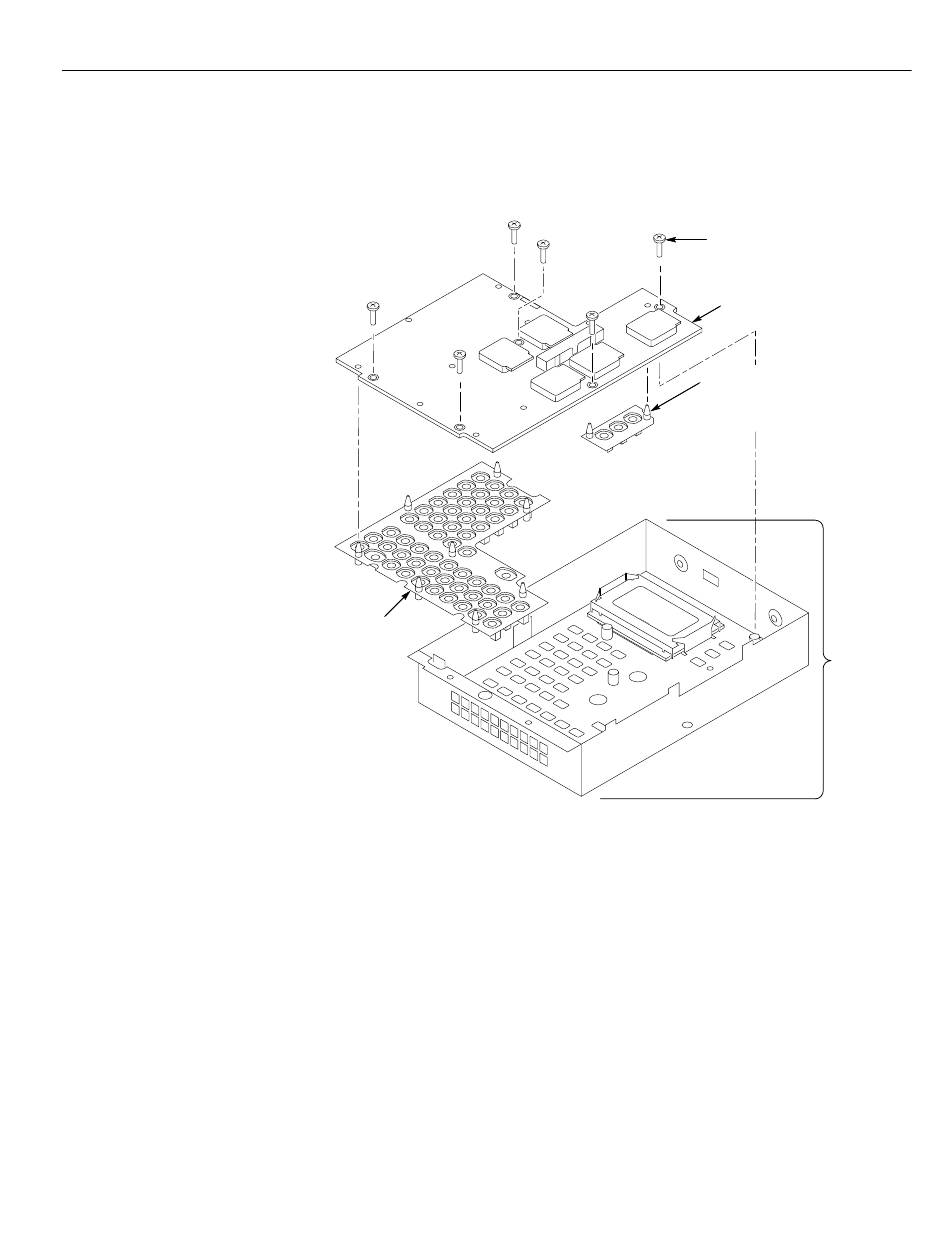

Figure 6–14: Front panel control assembly parts locations
6. Gently use the prying tool in the slots on the top and bottom of the control
assembly to work the control board free.
7. Lift the front panel control board out of the assembly.
Use the following procedure to reinstall the front panel control board:
1. Carefully work the control board into position, making sure that all keys go
through their holes in the front panel and that the board is firmly seated.
2. Insert the six screws that attach the front panel control board to the front
panel control assembly.
Removal and Installation Procedures
Remove screws (6)
Front panel control board
Use rubber pull points to
remove/attach elastomeric keypad
from/to front panel control board
Glidepoint
assembly
6–35
