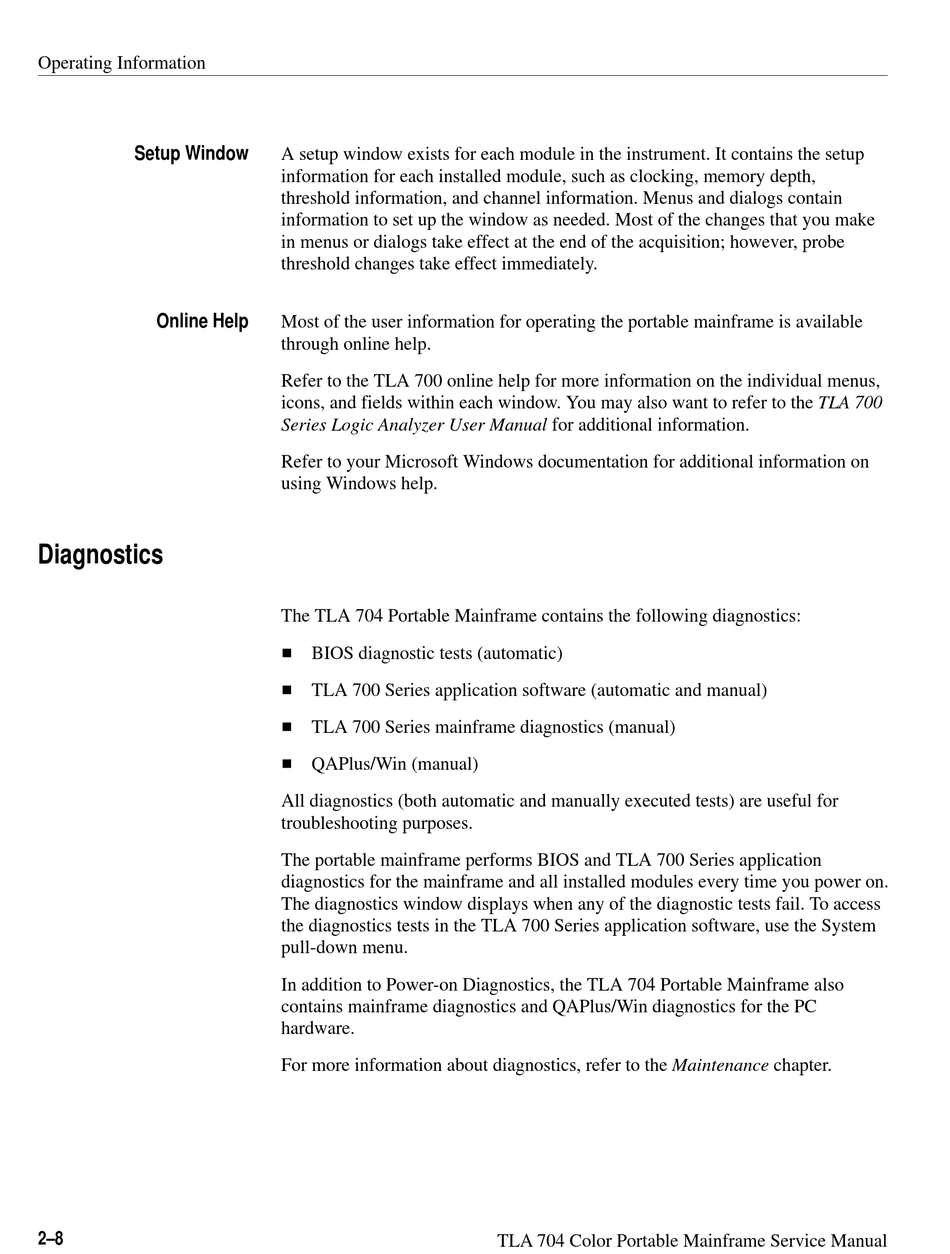

Tektronix TLA 704 Service Manual page 43

Operating Information
Setup Window
Online Help
Diagnostics
2–8
A setup window exists for each module in the instrument. It contains the setup
information for each installed module, such as clocking, memory depth,
threshold information, and channel information. Menus and dialogs contain
information to set up the window as needed. Most of the changes that you make
in menus or dialogs take effect at the end of the acquisition; however, probe
threshold changes take effect immediately.
Most of the user information for operating the portable mainframe is available
through online help.
Refer to the TLA 700 online help for more information on the individual menus,
icons, and fields within each window. You may also want to refer to the TLA 700
Series Logic Analyzer User Manual for additional information.
Refer to your Microsoft Windows documentation for additional information on
using Windows help.
The TLA 704 Portable Mainframe contains the following diagnostics:
H BIOS diagnostic tests (automatic)
H TLA 700 Series application software (automatic and manual)
H TLA 700 Series mainframe diagnostics (manual)
H QAPlus/Win (manual)
All diagnostics (both automatic and manually executed tests) are useful for
troubleshooting purposes.
The portable mainframe performs BIOS and TLA 700 Series application
diagnostics for the mainframe and all installed modules every time you power on.
The diagnostics window displays when any of the diagnostic tests fail. To access
the diagnostics tests in the TLA 700 Series application software, use the System
pull-down menu.
In addition to Power-on Diagnostics, the TLA 704 Portable Mainframe also
contains mainframe diagnostics and QAPlus/Win diagnostics for the PC
hardware.
For more information about diagnostics, refer to the Maintenance chapter.
