Removal and Installation Procedures
Left Side Cover
Removal
6–16
Screws (4)
Left side
cover

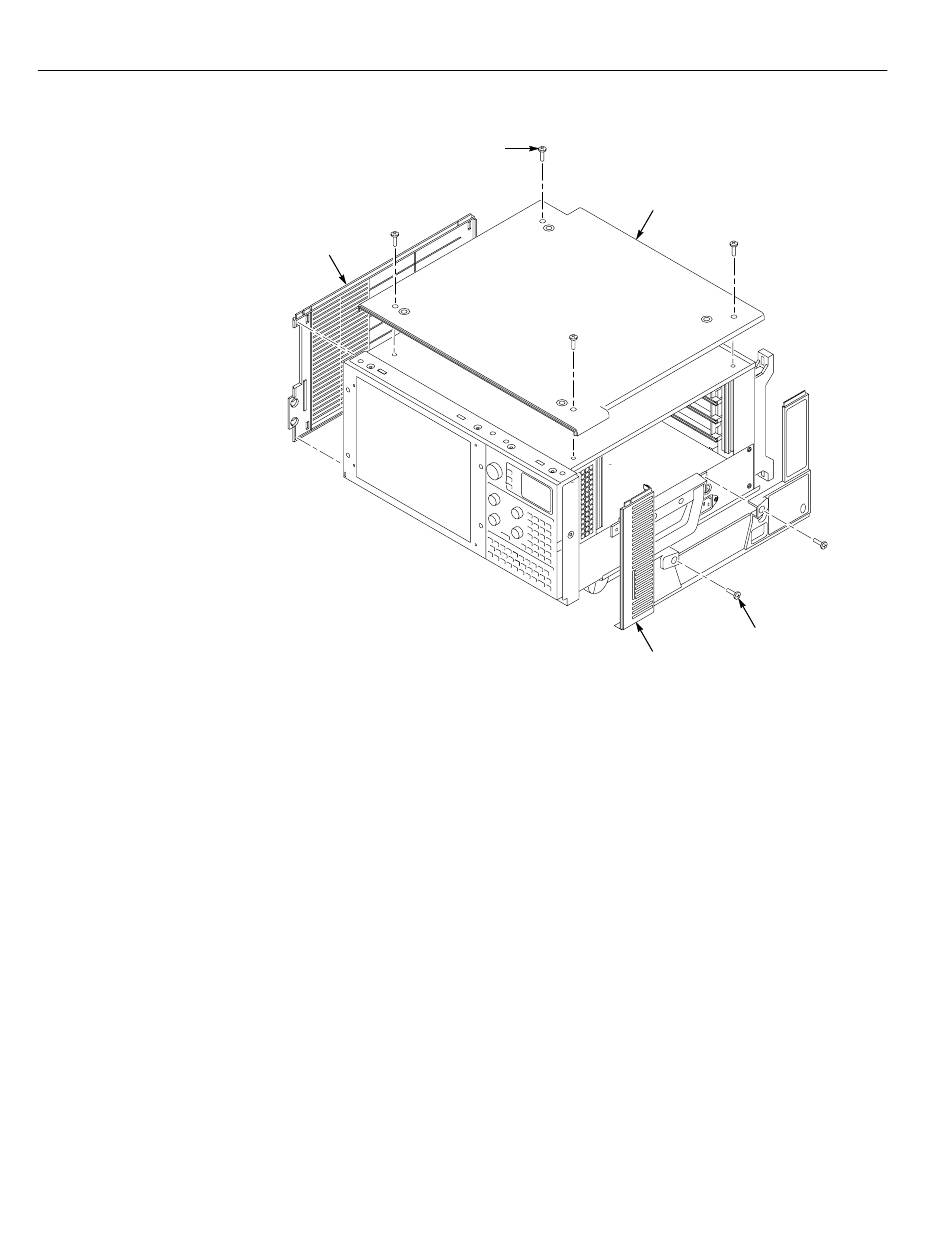

Figure 6–5: Top and side cover removal
No screws attach the left side cover to the mainframe. However, you must loosen
the two screws closest to the left side of the bottom cover in order to remove the
left side cover.
You will need a screwdriver with a size T-15 Torx tip (Table 6–1, items 1 and 2,
page 6–6) to perform this procedure.
Use the following procedure to remove the left side cover:
1. Locate the parts to be removed in the locator diagram External parts,
Figure 6–1 on page 6–8.
2. Do the Top Cover removal procedure on page 6–15.
Top cover
Right side cover
TLA 704 Color Portable Mainframe Service Manual
Screws (2)
