MEISTERSTÜCK
(SO-610)

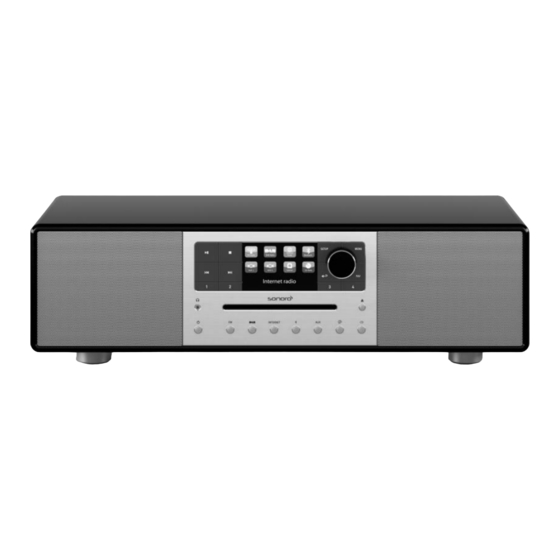

2.1 stereo music system
Operating manual
64
© sonoro audio GmbH 2019

Advertisement

Table of Contents
loading

Related Manuals for Sonoro MEISTERSTUCK SO-610

Summary of Contents for Sonoro MEISTERSTUCK SO-610

  • Page 1 MEISTERSTÜCK (SO-610) 2.1 stereo music system Operating manual © sonoro audio GmbH 2019...

  • Page 2: Table Of Contents

    Using the web portal ............92 10 Streaming services ..............93 10.1 Operation ................95 10.2 Setup menu ................96 11 My Music mode ..............97 11.1 Operation ................97 11.2 Setup menu ................98 © sonoro audio GmbH 2019...
  • Page 3 18.10 Setup Wizard ..............110 18.11 Info ..................110 18.12 Backlight ................110 18.13 Multi-Room ................ 111 19 Using UNDOK app to control MEISTERSTÜCK ...... 112 20 Troubleshooting ..............114 21 Cleaning ................. 116 22 Warranty ................117 © sonoro audio GmbH 2019...

  • Page 4: Introduction

    The images in this operating manual are intended to illustrate the actions necessary to operate MEISTERSTÜCK. Enjoy your MEISTERSTÜCK! Contact data Address sonoro audio GmbH, Nordkanalallee 94, 41464 Neuss, Germany Phone +49 2131 8834-141 +49 2131 7517-599 E-mail support@sonoro.de...

  • Page 5: Intended Use

    ▪ FM/DAB cable antenna ▪ FM/DAB telescopic antenna ▪ External WiFi antenna ▪ Quick start guide ▪ Operating manual ▪ Safety manual ▪ Greeting card ▪ sonoro audio collection flyer ▪ Service address sheet ▪ Gloves © sonoro audio GmbH 2019...

  • Page 6: Controls And Ports

    9. Favourite button (FAV) 23. Auxiliary input 1/2 mode (AUX) 10. Back button ( 24. Music streaming services ( 11. Preset 1 button (1) 25. CD mode (CD) 12. Preset 2 button (2) 13. Preset 3 button (3) © sonoro audio GmbH 2019...

  • Page 7: Technical Data

    27. External WiFi antenna jack 28. AC socket 29. Auxiliary input 2 (3.5mm) 30. Auxiliary input 1 (RCA) 31. Line-output (RCA) 32. USB port 33. Optical port 34. LAN RJ45 Jack 35. FM/DAB antenna jack © sonoro audio GmbH 2019...
  • Page 8 Bottom view 36. Bass reflex opening 37. Subwoofer driver © sonoro audio GmbH 2019...
  • Page 9 50. CD mode ( 43. Optical input mode ( 51. Music streaming services ( 44. Right button, skip next ( 52. My Music mode ( ✚ 45. Volume up button ( 53. Auxiliary input 1/2 mode ( © sonoro audio GmbH 2019...
  • Page 10 ▬ 56. Volume down button ( 57. Equalizer setting button (EQ) 58. Bass setting button (BASS) 59. Preset station buttons (1-9) 60. Information button (INFO) 61. Infra-red transmitter 62. Battery compartment ✚,▬ *Navigation buttons ( © sonoro audio GmbH 2019...
  • Page 11 Maximum of 5 speakers in a group (4 client and 1 server) Bluetooth Version 3.0 Profile : AVRCP v1.4, A2DP 1.2, HSP v1.2 2.402GHz-2.480GHz Max. transmitted power < 10dBm Battery CR2032 (remote control) < 1.0W Standby Power Network Standby < 2.0W © sonoro audio GmbH 2019...

  • Page 12: Marks Of Approval And Certificates

    Marks of approval and certificates The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by sonoro audio GmbH is under license. Other trademarks and trade names are those of their respective owners.

  • Page 13: Getting Started

    MEISTERSTÜCK or the individual parts exhibit damages. If this is the case, do not use MEISTERSTÜCK. Should you detect any damage, contact your dealer or sonoro audio GmbH customer support immediately. 2. Check to make sure that the delivery is complete (see chapter “Scope of delivery”).

  • Page 14: Using The Antennas

    4. If you are using the rod antenna, pull the arms of the rod antenna apart and align the antenna so that you have the best possible reception. 5. Screw the desired Wi-Fi antenna located on the back of MEISTERSTÜCK to the WiFi antenna connector. Lift Wi-Fi antenna upwards. © sonoro audio GmbH 2019...

  • Page 15: Performing Initial Setup

    Source of auto update (Update from Radio, Internet or no update). Depending on the selection you have made, follow the instructions on the display to further set up date and time, time zone, daylight saving © sonoro audio GmbH 2019...
  • Page 16 4. Alternative, use the Ethernet (LAN) connection to your router (with automatic configuration), select the [Wired] menu item in the available network. To run the setup wizard again, go to [System Settings] and then select [Setup Wizard] (See chapter “System Settings”). © sonoro audio GmbH 2019...

  • Page 17: Basic Operation

    [Bluetooth headphone], then select [Bluetooth pairing], then [Available devices], and then press OK to confirm. Wait for a while, your Bluetooth device name is shown in the display, and then select press OK to select it. © sonoro audio GmbH 2019...
  • Page 18 Bluetooth device instruction manual. To disconnect a paired Press SETUP once, then + or – (or rotate the Bluetooth headphone navigation knob) to select [Bluetooth headphone], then select [Bluetooth disconnect] and then press OK to confirm. © sonoro audio GmbH 2019...

  • Page 19: Using The Menus

    MEISTERSTÜCK or press + or – on the remote control. To confirm a Press OK. selection in the (On MEISTERSTÜCK, press the navigation menus, knob) Press To go back one level in the menu, © sonoro audio GmbH 2019...

  • Page 20: Display Icons

    Repeat folder playback mode is active Shuffle playback mode is active. Repeat all and shuffle playback mode is active. Sleep timer is active. Stereo sound broadcast is available. Sound output is muted. A USB device is connected. Playback is paused. © sonoro audio GmbH 2019...

  • Page 21: Fm Radio Mode

    OK to confirm. Or, press preset station button (0–9) to access a stored preset station (1–10). To browse the Press INFO repeatedly. radio station information (if available), To mute or restore Press button. the sound output, © sonoro audio GmbH 2019...

  • Page 22: Setup Menu

    To listen radio in stereo or mono sound output. ▪ [Bluetooth headphone] To connect or disconnect with a Bluetooth headphone, see chapter “Basic operation”. ▪ [System Settings] See chapter “System Settings”. ▪ [Main menu] To access other playback modes or sleep timer. © sonoro audio GmbH 2019...

  • Page 23: Dab Radio Mode

    OK to confirm. Or, press a preset station button (0–9) to access a stored preset station (1–10). Press INFO repeatedly. To browse the radio station information* (if available), To mute or restore Press button. the sound output, © sonoro audio GmbH 2019...

  • Page 24: Setup Menu

    To define how the stations are listed when browsing the station list. Options are: ▪ [Alphanumeric]: Arrange the stations in alphabetical order, ▪ [Ensemble]: List groups of stations that are broadcast together on the same ensemble, and ▪ [Valid]: List valid stations first, then off-air stations. © sonoro audio GmbH 2019...
  • Page 25 ▪ [Bluetooth headphone] To connect or disconnect with a Bluetooth headphone, see chapter “Basic operation”. ▪ [System Settings] See chapter “System Settings”. ▪ [Main menu] To access other playback modes or sleep timer. © sonoro audio GmbH 2019...

  • Page 26: Internet Radio Mode

    OK to confirm. Or, press preset station buttons (0–9) to access a stored preset station (1–10). Press INFO repeatedly. To browse the station information* (if available), To mute or restore Press button. the sound output, © sonoro audio GmbH 2019...

  • Page 27: Setup Menu

    “My favourites” on the web portal (See chapter “Using the web portal”). ▪ [Local (name of your location)] To browse and tune to any radio stations available in your area. The stations are grouped into several categories. © sonoro audio GmbH 2019...
  • Page 28 (See chapter “Using the web portal”). ▪ [Help] ▪ [Get access code]: To get the access code of MEISTERSTÜCK. ▪ [FAQ]: To get help when the Internet radio does not work properly. © sonoro audio GmbH 2019...

  • Page 29: Using The Web Portal

    The added stations in “My favourites” can be accessed through [My favourites] in the Internet Radio mode of MEISTERSTÜCK. The added stations in “My added stations” can be accessed through [My added stations] in the Internet Radio mode of MEISTERSTÜCK. © sonoro audio GmbH 2019...

  • Page 30: Streaming Services

    Streaming services Your MEISTERSTÜCK can play content from the following streaming services: You will also find the symbols of these services in the display of your MEISTERSTÜCK. © sonoro audio GmbH 2019...
  • Page 31 MEISTERSTÜCK! For hints how to deal with the UNDOK app please refer to chapter Occasionally, the services can also be operated directly with the providers app or the MEISTERSTÜCK itself. Please check with the provider. © sonoro audio GmbH 2019...

  • Page 32: Operation

    3. Play a song and select Devices Available. 4. Select your MEISTERSTÜCK and start listening. To pause or resume Press playback, Press To skip to the previous or next playback item, © sonoro audio GmbH 2019...

  • Page 33: Setup Menu

    (if applicable) are marked with an asterisk (*). ▪ [Bluetooth headphone] To connect or disconnect with a Bluetooth headphone, see chapter “Basic operation”. ▪ [System Settings] See chapter “System Settings”. ▪ [Main menu] To access other playback modes or sleep timer. © sonoro audio GmbH 2019...

  • Page 34: My Music Mode

    (see chapter “Setup menu” on next page). To pause or resume Press playback, Press To skip to the previous or next audio file, During playback, press and hold To quickly search backward or forward within an audio file, © sonoro audio GmbH 2019...

  • Page 35: Setup Menu

    To browse and play back audio files stored in “My playlist”. ▪ [Repeat] To turn on or off the repeat playback mode of the current folder/ playlist. ▪ [Shuffle] To turn on or off the shuffle playback mode of the current folder/ playlist. © sonoro audio GmbH 2019...
  • Page 36 LAN” function) in order to play back audio files from MEISTERSTÜCK. ▪ [Bluetooth headphone] To connect or disconnect with a Bluetooth headphone, see chapter “Basic operation”. ▪ [System Settings] See chapter “System Settings”. ▪ [Main menu] To access other playback modes or sleep timer. © sonoro audio GmbH 2019...
  • Page 37 To pause or resume Press playback, Press To skip to the previous or next audio file, To quickly search During playback, press and hold backward or forward within an audio file, © sonoro audio GmbH 2019...
  • Page 38 [Bluetooth Info]: To get the existing Bluetooth connection status. ▪ [Connected Device]: To get the existing connected Bluetooth device name. ▪ [System Setting] See chapter “System Settings”. ▪ [Main menu] To access other playback modes or sleep timer. © sonoro audio GmbH 2019...
  • Page 39 (if applicable) are marked with an asterisk (*). ▪ [Bluetooth headphone] To connect or disconnect with a Bluetooth headphone, see chapter “Basic operation”. ▪ [System Settings] See chapter “System Settings”. ▪ [Main menu] To access other playback modes or sleep timer. © sonoro audio GmbH 2019...
  • Page 40 (if applicable) are marked with an asterisk (*). ▪ [Bluetooth headphone] To connect or disconnect with a Bluetooth headphone, see chapter “Basic operation”. ▪ [System Settings] See chapter “System Settings”. ▪ [Main menu] To access other playback modes or sleep timer. © sonoro audio GmbH 2019...
  • Page 41 [System Settings] See chapter “System Settings”. ▪ [Main menu] To access other playback modes or sleep timer. The optical input is only supporting for the linear PCM, 2 channels 16 bit or 24bit music source. © sonoro audio GmbH 2019...
  • Page 42 To quickly search During playback, press and hold backward or forward within an audio file, To select a Press FAV repeatedly. playback mode, ▪ = Repeat all ▪ = Repeat one ▪ = Shuffle © sonoro audio GmbH 2019...
  • Page 43 ▪ [Bluetooth headphone] To connect or disconnect with a Bluetooth headphone, see chapter “Basic operation”. ▪ [System Settings] See chapter “System Settings”. ▪ [Main menu] To access other playback modes or sleep timer. © sonoro audio GmbH 2019...
  • Page 44 30, 45, 60 or 90 min). 3. Press OK to confirm the selection. When the sleep timer is active, the sleep timer icon ( ) and the remaining time will be shown. To cancel the sleep timer, select [Sleep OFF]. © sonoro audio GmbH 2019...
  • Page 45 Adjust the treble level to tailor the sound of the audio playback. ▪ Select one of the pre-defined sound equalizer options including: [Flat], [Pop], [Rock], [Jazz] and [Classic]. 18.4 Network ▪ [Network wizard] To establish network connection. © sonoro audio GmbH 2019...
  • Page 46 If you are updating time from a source (Radio – FM/DAB), the daylight saving setting has no effect. If you are updating time from the Internet network, set your time zone. ▪ [Set Format] © sonoro audio GmbH 2019...
  • Page 47 MEISTERSTÜCK. 18.10 Setup Wizard ▪ To perform initial setup (see chapter “Performing initial setup”). 18.11 Info ▪ This shows the current software version, spotify version, radio ID and friendly name. 18.12 Backlight © sonoro audio GmbH 2019...
  • Page 48 To view the list of compatible products receiving audio contents from MEISTERSTÜCK. ▪ [Leave Group] To remove compatible products from a multi-room group. ▪ [Dissolve Group] To dissolve a multi-room group. Each product in the group will then be operated individually. © sonoro audio GmbH 2019...
  • Page 49 3. Launch the UNDOK™ app on your smart device. The app will search for compatible audio systems. You may also tap on “Set up audio system” to start searching for audio systems. Select “Meisterstueck” from the list of available audio systems. © sonoro audio GmbH 2019...
  • Page 50 6. Tap on the edit group icon ( ) in the list of available audio system. Add or remove MEISTERSTÜCK to or from multi-room groups, change a group name or delete a group as required. © sonoro audio GmbH 2019...
  • Page 51 Extend/adjust the FM/DAB antenna or reception is poor. check the Wi-Fi connection. There is radio Keep MEISTERSTÜCK interference. away from other electronic devices. Optical Input no Select PCM as output sound source in the external device. © sonoro audio GmbH 2019...
  • Page 52 Insert a different CD in the CD slot. USB device does not USB playback is not Check the files and work. support. file system on the USB device. USB device is not Check the USB charging. cable. © sonoro audio GmbH 2019...
  • Page 53 Clean MEISTERSTÜCK only from the outside with a soft, dry cloth. Cleaning off heavy soiling ▪ Clean MEISTERSTÜCK only from the outside with a slightly damp cloth and then dry MEISTERSTÜCK with a soft, dry cloth. © sonoro audio GmbH 2019...
  • Page 54 (1 year in North America and Australia), calculated from the date of purchase. ▪ sonoro audio GmbH shall, at its own discretion, repair or replace MEISTERSTÜCK free of charge any defects caused by material or manufacturing defects within the warranty period.
  • Page 55 GmbH Nordkanalallee 94 41464 Neuss Allemagne Téléphone: +49 2131 8834-141 Fax: +49 2131 7517-599 E-mail: support@sonoro.de Internet: www.sonoro.de © sonoro audio GmbH 2019...
  • Page 56 DISTRIBUTED BY www.turascandinavia.com...
