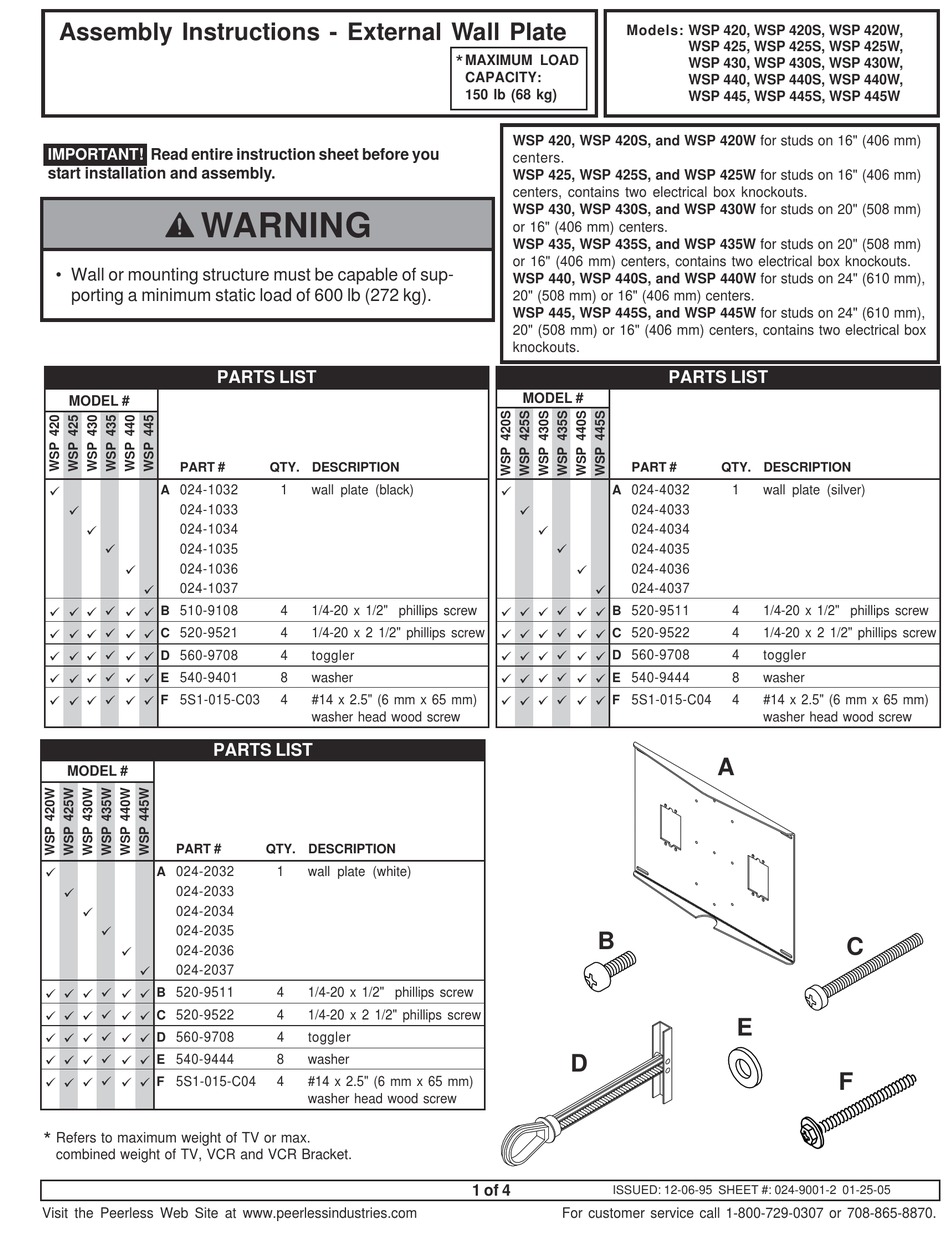

Assembly Instructions - External Wall Plate
IMPORTANT!
Read entire instruction sheet before you
start installation and assembly.
WARNING
• Wall or mounting structure must be capable of sup-
porting a minimum static load of 600 lb (272 kg).
PARTS LIST
MODEL #
PART #
!
A 024-1032
!
024-1033
!
024-1034
!
024-1035
!
024-1036
!
024-1037
!
!
!
!
!
!
B 510-9108
!
!
!
!
!
!
C 520-9521
!
!
!
!
!
!
D 560-9708
!
!
!
!
!
!
E 540-9401
!
!
!
!
!
!
F 5S1-015-C03
PARTS LIST
MODEL #
PART #
!
A 024-2032
!
024-2033
!
024-2034
!
024-2035
!
024-2036
!
024-2037
!
!
!
!
!
!
B 520-9511
!
!
!
!
!
!
C 520-9522
!
!
!
!
!
!
D 560-9708
!
!
!
!
!
!
E 540-9444
!
!
!
!
!
!
F 5S1-015-C04
*
Refers to maximum weight of TV or max.
combined weight of TV, VCR and VCR Bracket.
Visit the Peerless Web Site at www.peerlessindustries.com
QTY. DESCRIPTION
1
wall plate (black)
4
1/4-20 x 1/2" phillips screw
4
1/4-20 x 2 1/2" phillips screw
4
toggler
8
washer
4
#14 x 2.5" (6 mm x 65 mm)
washer head wood screw
QTY. DESCRIPTION
1
wall plate (white)
4
1/4-20 x 1/2" phillips screw
4
1/4-20 x 2 1/2" phillips screw
4
toggler
8
washer
4
#14 x 2.5" (6 mm x 65 mm)
washer head wood screw
Models: WSP 420, WSP 420S, WSP 420W,
*
MAXIMUM LOAD
CAPACITY:
150 lb (68 kg)
WSP 420, WSP 420S, and WSP 420W for studs on 16" (406 mm)
centers.
WSP 425, WSP 425S, and WSP 425W for studs on 16" (406 mm)
centers, contains two electrical box knockouts.
WSP 430, WSP 430S, and WSP 430W for studs on 20" (508 mm)
or 16" (406 mm) centers.
WSP 435, WSP 435S, and WSP 435W for studs on 20" (508 mm)
or 16" (406 mm) centers, contains two electrical box knockouts.
WSP 440, WSP 440S, and WSP 440W for studs on 24" (610 mm),
20" (508 mm) or 16" (406 mm) centers.
WSP 445, WSP 445S, and WSP 445W for studs on 24" (610 mm),
20" (508 mm) or 16" (406 mm) centers, contains two electrical box
knockouts.
MODEL #
PART #
!
A 024-4032
!
024-4033
!
024-4034
!
024-4035
!
024-4036
!
024-4037
!
!
!
!
!
!
B 520-9511
!
!
!
!
!
!
C 520-9522
!
!
!
!
!
!
D 560-9708
!
!
!
!
!
!
E 540-9444
!
!
!
!
!
!
F 5S1-015-C04
B
D
1 of 4
ISSUED: 12-06-95 SHEET #: 024-9001-2 01-25-05
For customer service call 1-800-729-0307 or 708-865-8870.
WSP 425, WSP 425S, WSP 425W,
WSP 430, WSP 430S, WSP 430W,
WSP 440, WSP 440S, WSP 440W,
WSP 445, WSP 445S, WSP 445W
PARTS LIST
QTY. DESCRIPTION
1
wall plate (silver)
4
1/4-20 x 1/2" phillips screw
4
1/4-20 x 2 1/2" phillips screw
4
toggler
8
washer
4
#14 x 2.5" (6 mm x 65 mm)
washer head wood screw
A
C
E
F
